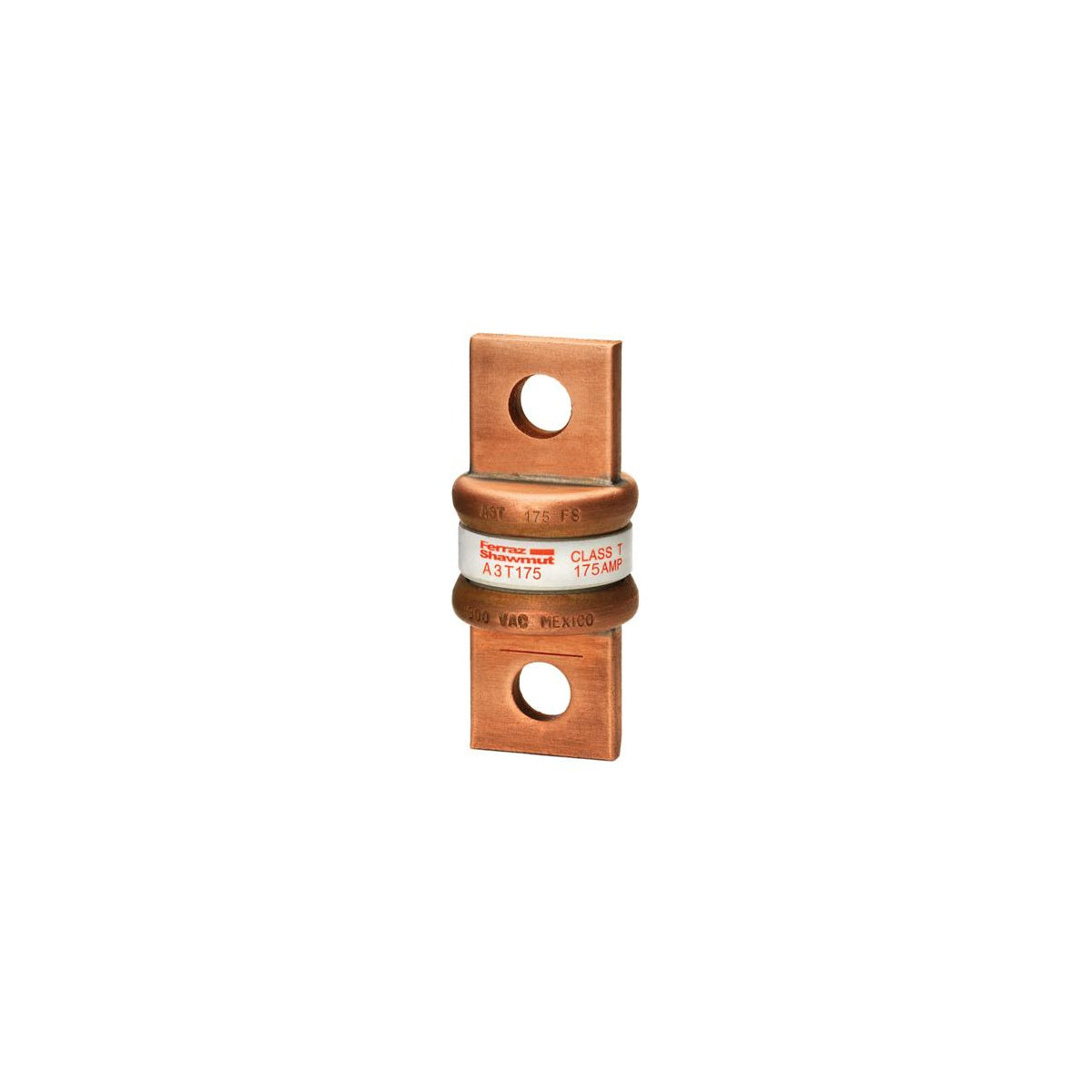

Fuse Amp-Trap® 300V 175A Fast-Acting Class T A3T Series
SKU: #194376
Part: #A3T175
UPC: 782001890223
Fuse Amp-Trap® 300V 175A Fast-Acting Class T A3T Series
SKU: #194376
Part: #A3T175
UPC: 782001890223
Description
Fuse Amp-Trap® 300V 175A Fast-Acting Class T A3T Series Fuse
The Fuse Amp-Trap® 300V 175A Fast-Acting Class T A3T Series is designed for electrical distributors and switchgear suppliers requiring reliable overcurrent protection in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse features high current-limitation and a compact size to prevent substitution with lower-rated fuses, ensuring safety and performance in electrical distribution systems.
Specifications
- Amperage Rating: 175 A
- Voltage Rating: 300 V
- Interrupt Rating: 200 kA
- Fuse Class: Class T
- Connection: Blade
- Mounting Type: Bolted
- Dimensions (L x W x H): 2.44 in x 1.06 in x 1.06 in
- Product Weight: 0.1610 lbs
- Insulation Material: Glass Melamine (GMG)
- Manufacturer Part Number: A3T175
Features
- Fast-acting fuse providing high current-limitation
- Compact glass melamine body for superior dimensional stability
- Catalog numbers permanently stamped on blades for identification
- Unique dimensions prevent substitution with lower voltage or current-limiting fuses
- Suitable for use in load centers, panelboards, switchboards, circuit breakers, and metering centers
