Fuse Amp-Trap® 300V 125A Fast-Acting Class T A3T Series
SKU: #194367
Part: #A3T125
UPC: 782001890209
Fuse Amp-Trap® 300V 125A Fast-Acting Class T A3T Series
SKU: #194367
Part: #A3T125
UPC: 782001890209
Description

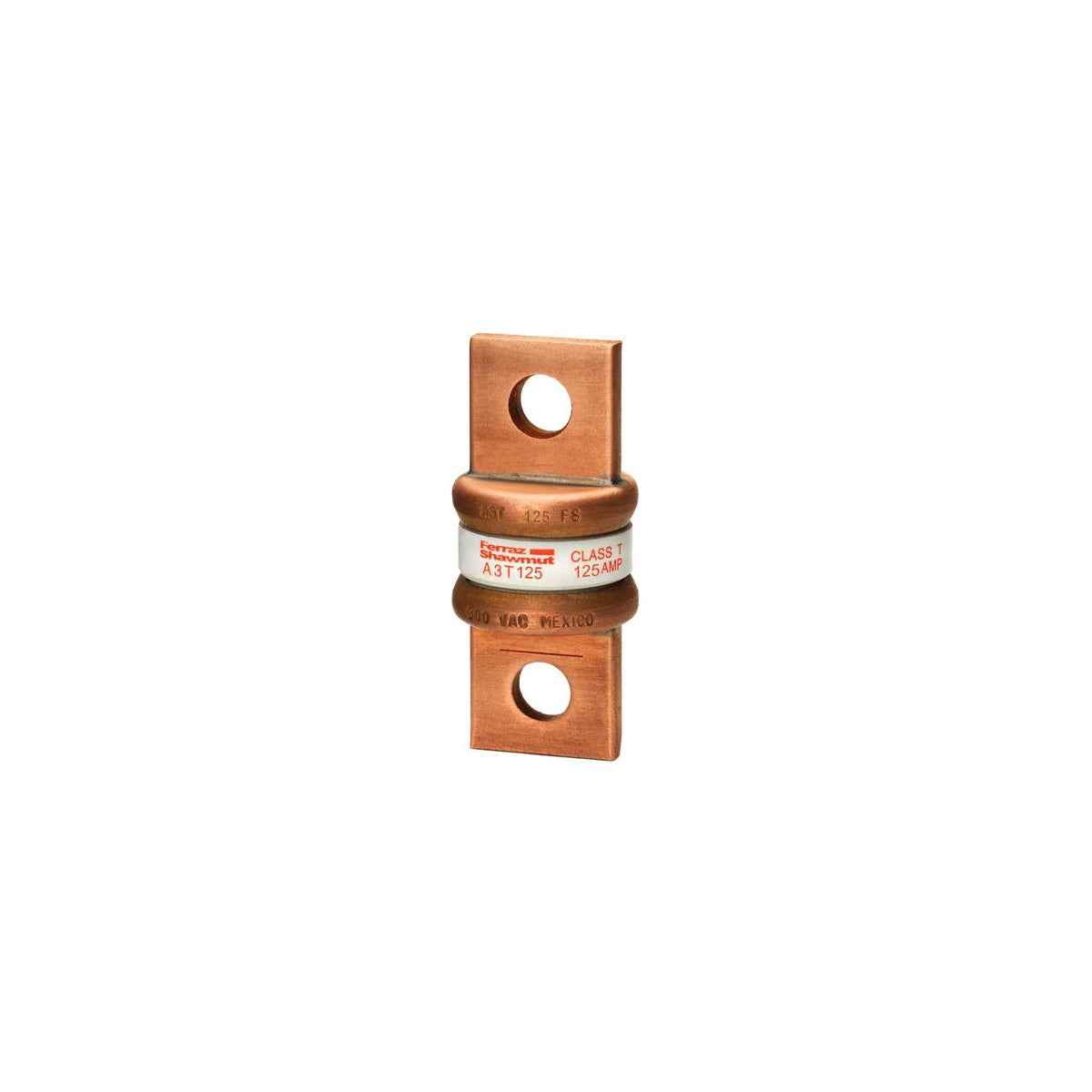

Fuse Amp-Trap® 300V 125A Fast-Acting Class T A3T Series Fuse
The Fuse Amp-Trap® 300V 125A Fast-Acting Class T A3T Series is designed for use in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse offers high current-limitation in a compact size, making it suitable for electrical distributors and switchgear suppliers requiring reliable, space-saving protection solutions. It features a bolted mounting type with blade connections, ensuring secure installation in various electrical applications.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A3T125
- Fuse Class: Class T
- Amperage Rating: 125 A
- Interrupt Rating: 200 kA
- Voltage Rating: 300 V
- Dimensions (L x W x H): 2.44 in x 1.06 in x 1.06 in
- Diameter: 1.06 inches
- Mounting Type: Bolted
- Connection Type: Blade
- Insulation Material: Glass Melamine (GMG)
- Product Weight: 0.1610 lbs
Features
- Fast-acting fuse with high current-limitation capability
- Compact physical size prevents substitution with lower voltage or current rating fuses
- Glass melamine body ensures superior dimensional stability
- Catalog numbers permanently stamped into blades for easy identification
