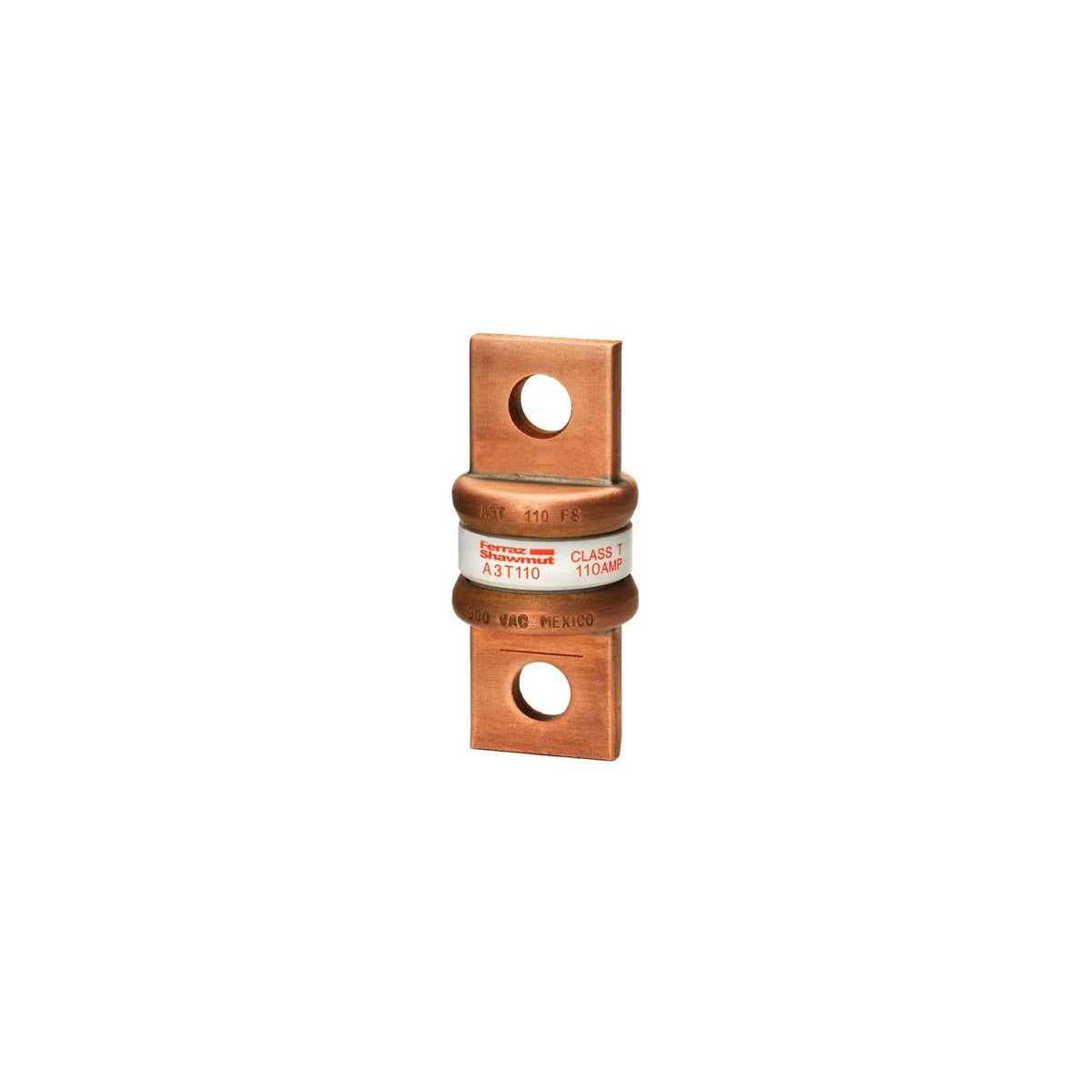

Fuse Amp-Trap® 300V 110A Fast-Acting Class T A3T Series Fuse

The Fuse Amp-Trap® 300V 110A Fast-Acting Class T A3T Series is designed for use in load centers, panelboards, switchboards, circuit breakers, and metering centers. It provides high current-limitation and compact size, making it suitable for electrical distributors and switchgear suppliers requiring reliable protection in wire and cable applications. Its fast-acting characteristic ensures rapid interruption of fault currents, enhancing system safety and performance.

Specifications

• Amperage Rating: 110 A
• Voltage Rating: 300 V
• Interrupt Rating: 200 kA
• Fuse Class: Class T
• Connection: Blade
• Mounting Type: Bolted
• Dimensions: 2.44 in (Length) x 1.06 in (Width) x 1.06 in (Height)
• Product Weight: 0.1610 lb
• Insulation Material: GMG (Glass Melamine)
• Manufacturer Part Number: A3T110

Features

• Fast-acting fuse with high current-limitation capability
• Compact physical size prevents substitution with lower voltage or current-limiting fuses
• Glass melamine body provides superior dimensional stability
• Catalog numbers permanently stamped on blades for identification
