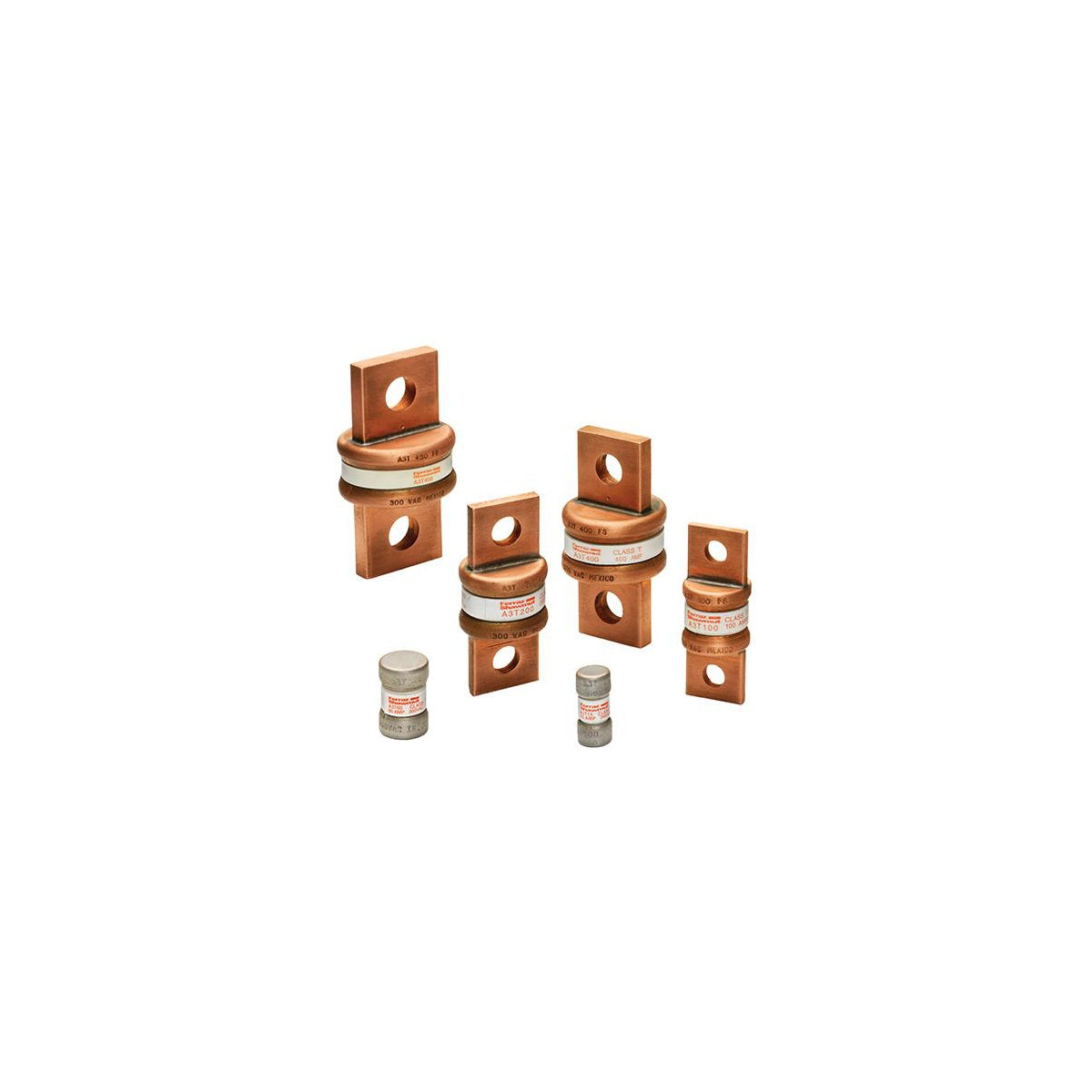

Fuse Amp-Trap® 300V 1000A Fast-Acting Class T A3T Series Fuse

The Fuse Amp-Trap® 300V 1000A Fast-Acting Class T A3T Series is designed for reliable protection in electrical distribution systems, including load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse offers high current-limitation and compact size, making it suitable for use by electrical distributors and switchgear suppliers requiring efficient and space-saving protection solutions.

Specifications

• Amperage Rating: 1000 A
• Interrupt Rating: 200 kA
• Voltage Rating: 300 V
• Dimensions (L x W x H): 4 in x 2.52 in x 2.52 in
• Connection Type: Blade
• Mounting Type: Bolted
• Insulation Material: GMG (Glass Melamine)
• Product Weight: 1.45 lbs
• Manufacturer Part Number: A3T1000
• Fuse Class: Class T

Features

• Fast-acting fuse with high current-limitation capability
• Compact physical size prevents substitution with lower voltage or current-limiting fuses
• Glass melamine body ensures superior dimensional stability
• Catalog numbers stamped into blades for permanent identification
