Description
Features
- Easy to read imprint label for quick recognition and replacement
- Low cost for high protection value
Applications
- Feeders
- Branch circuits
- Resistive heating
- Residential and small commercial installations
Approvals & Standards
- UL Listed to Standard 248-9 File E2137
- CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
- Self-certified for DC per UL248
Specifications
- Rated voltage AC UL: 250 V
- Rated voltage DC UL: 250 V
- Ampere Rating: 500 A
- ROHS Compliant: Yes
- Fuse Class: Class K5
- Speed/Characteristic: Fast-Acting
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 50 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Blade
- Body/Insulating Material: PolyTube
Product Dimensions
- Product Weight: 2.6 lb
- Product Diameter: 2.56 in
- Product Length: 10.38 in
Packaging Dimensions
- Sell Pack Quantity: 1 Each
- Sell Pack Weight: 2.73 lb
- Sell Pack Width: 2.62 in
- Sell Pack Length: 2.62 in
- Sell Pack Height: 10.81 in
Downloads
Spec SheetSpec Sheet FR
Drawings
Curves 1
Curves 2
More Information
Manufacturer Catalog Number

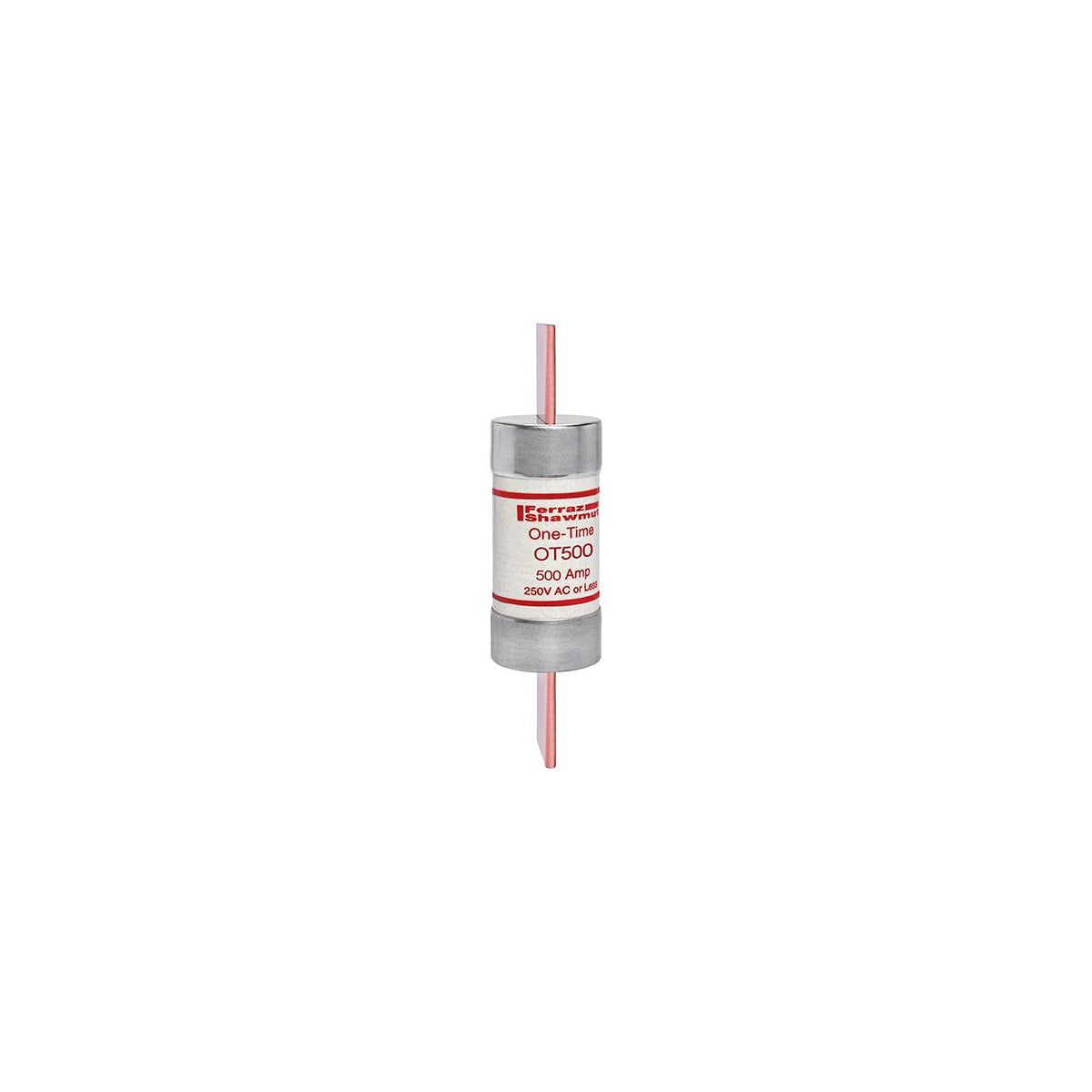

OT500
Weight
2.158
Length
10.38
Width
2.56
Height
2.56
Diameter
2.56 inches
Mounting Type
Clip
Terminal Type
Blade
