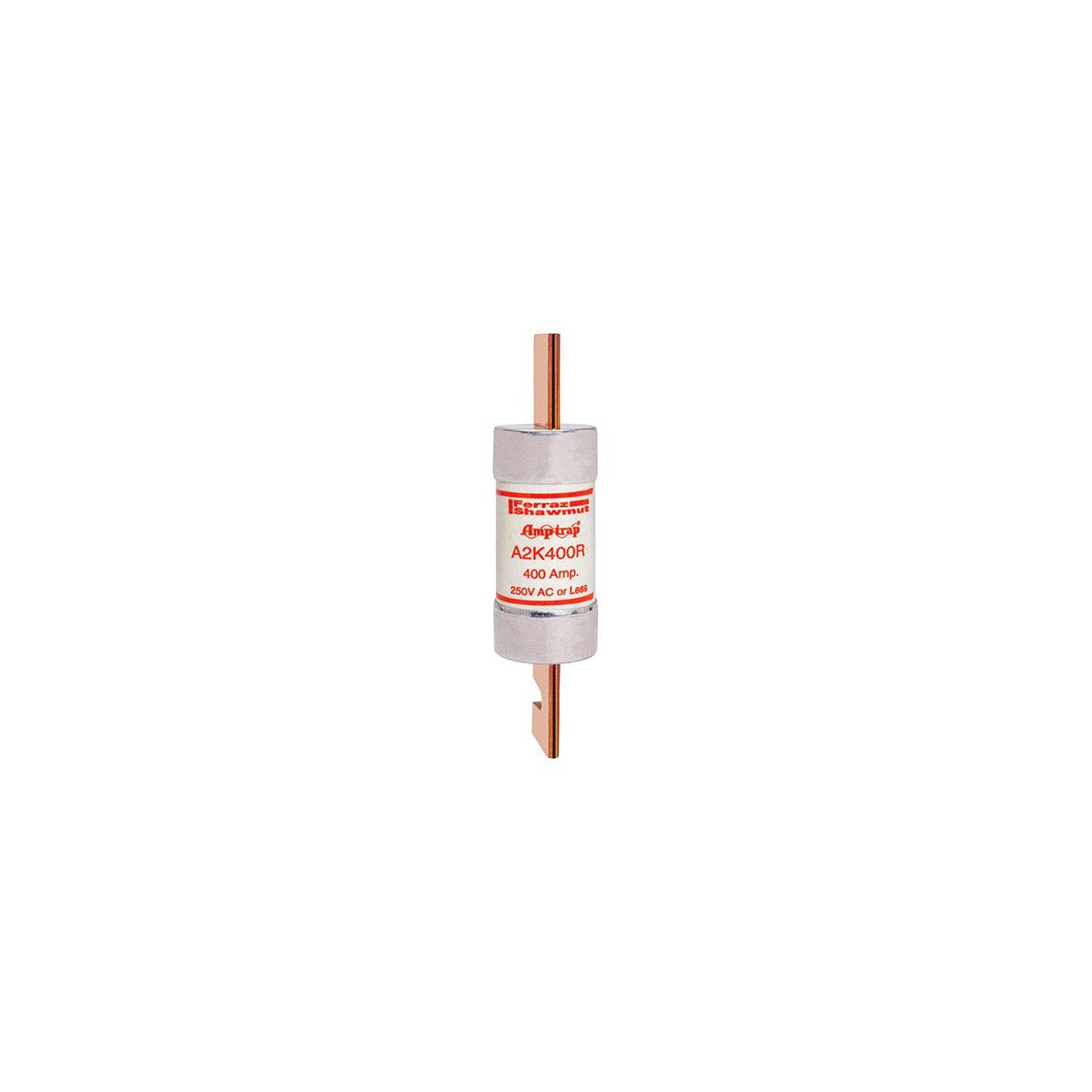

Fuse Amp-Trap® 250V 400A Fast-Acting Class RK1 A2K Series
SKU: #194320
Part: #A2K400R
UPC: 782001915360
Fuse Amp-Trap® 250V 400A Fast-Acting Class RK1 A2K Series
SKU: #194320
Part: #A2K400R
UPC: 782001915360
Description
Fuse Amp-Trap® 250V 400A Fast-Acting Class RK1 A2K Series Fuse
The Fuse Amp-Trap® A2K-R Series is a fast-acting, current-limiting power fuse designed for protection in electrical distribution systems where high available short-circuit currents exist. Ideal for use in load centers, panelboards, switchboards, bus ducts, feeder circuits, non-inductive loads, and lighting circuits, this fuse provides reliable branch and feeder circuit protection. It is suitable for electrical distributors and switchgear suppliers requiring robust fuse solutions with high interrupting ratings.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A2K400R
- Class: Class RK1
- Fuse Class: Class RK1
- Voltage Rating: 250 VAC / DC
- Amperage Rating: 400 A
- Interrupting Rating: 200 kA
- Dimensions (L x W x H): 8.63 in x 2.06 in x 2.06 in
- Diameter: 2.06 inches
- Weight: 1.68 lbs
- Connection Type: Blade
- Mounting Type: Clip
- Insulation Material: PolyTube
- UPC: 782001915360
Features
- Fast-acting fuse providing high degree of current limitation for low peak let-thru current
- Rejection style design prevents replacement by other fuse classes
- Fiberglass body ensures dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
- UL listed to standard 248-12 and CSA certified to standard C22.2 No. 248.12
- Self-certified for DC applications per UL248
