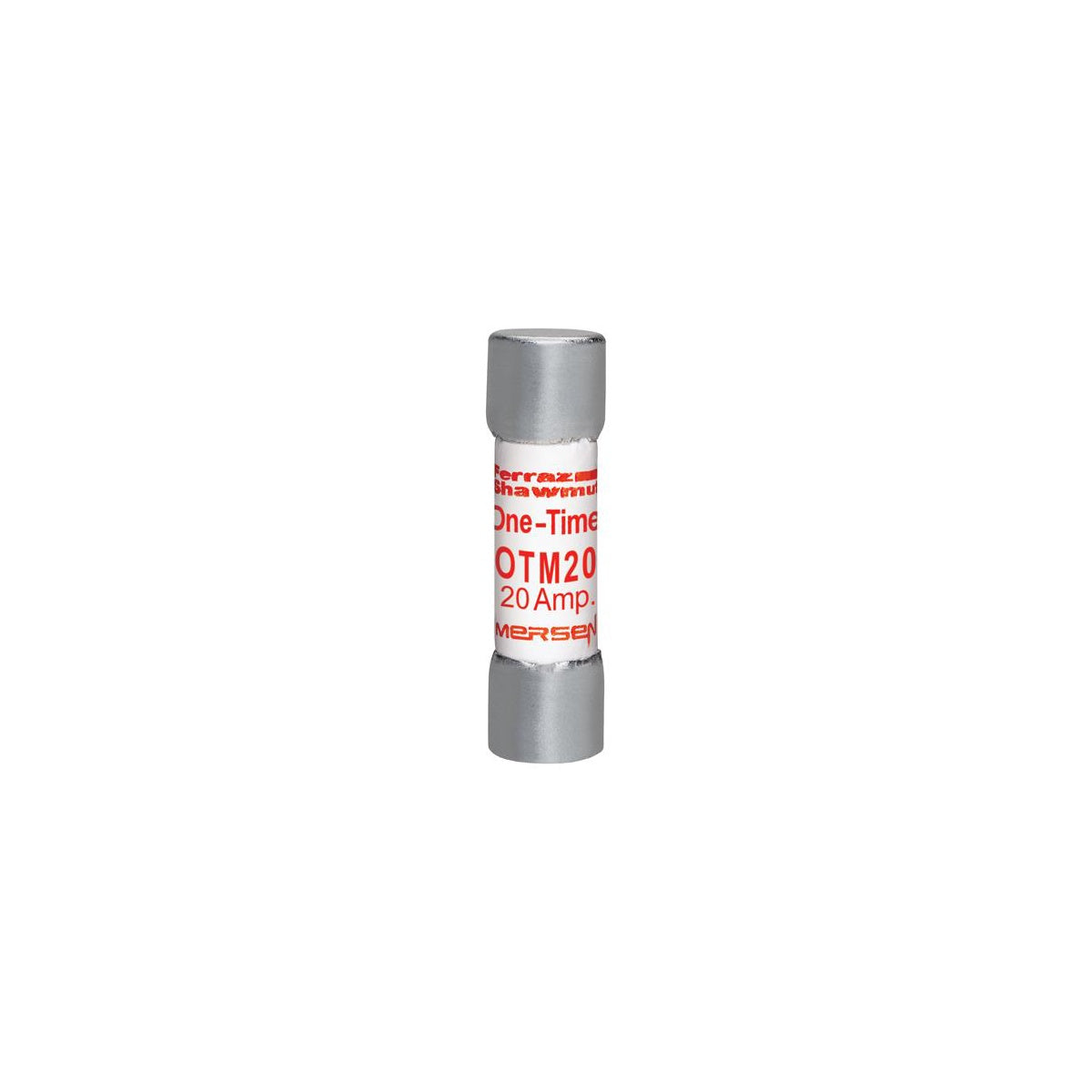

Fuse Amp-Trap® 250V 20A Fast-Acting Midget OTM Series

The Fuse Amp-Trap® 250V 20A Fast-Acting Midget OTM Series by Mersen provides supplemental circuit protection for electrical distributors and switchgear suppliers requiring reliable, low-cost fuses for 250VAC applications. Designed for general purpose lighting, heating, and control circuits where time-delay is not necessary, this fuse offers fast-acting performance with a 10kA interrupt rating. Its compact size and clip mounting make it suitable for wire and cable protection in various lighting solutions.

Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Fuse Class: Midget
• Dimensions: 1.5 in (Length) x 0.41 in (Width) x 0.41 in (Height)
• Diameter: 0.41 inches
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: Paper
• Product Weight: 0.0120 lbs
• Manufacturer Part Number: OTM20

Features

• Fast-acting fuse for immediate circuit protection
• Low-cost solution without compromising safety or performance
• Compatible with UltraSafe™ fuse holders
• Compact 1 1/2" x 13/32" (10 mm x 38 mm) dimensions for space-saving installation
• UL Listed to standard 248-14, File E33925
• CSA Certified to Standard C22.2 No. 248.14
