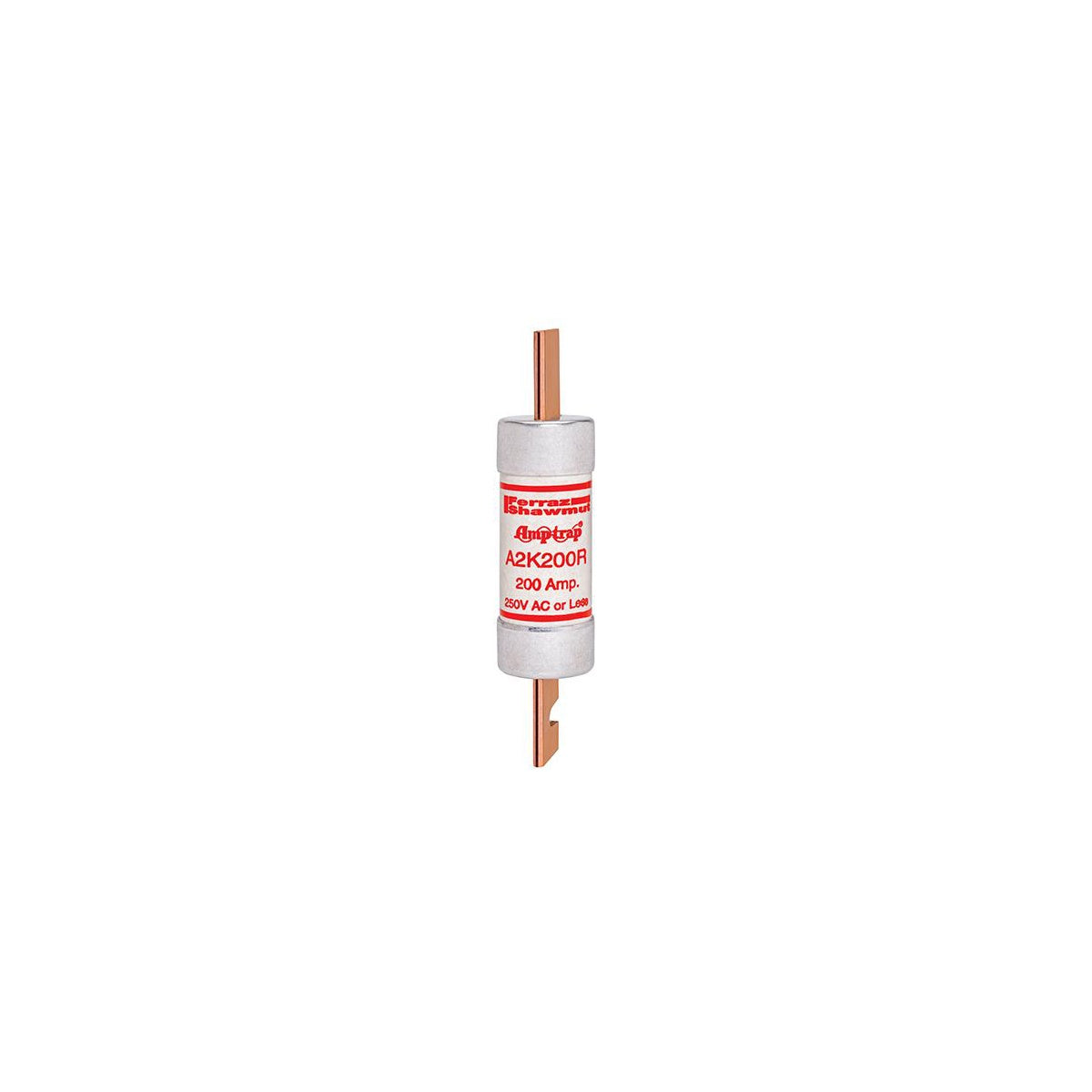

Fuse Amp-Trap® 250V 200A Fast-Acting Class RK1 A2K Series Fuse

The Fuse Amp-Trap® 250V 200A Fast-Acting Class RK1 A2K Series is a current-limiting fuse designed for high available short-circuit current protection. It is particularly suited for branch and feeder circuits and back-up protection in electrical distribution systems. This fuse is ideal for applications including load centers, panelboards, switchboards, bus duct, feeder circuits, non-inductive loads, and lighting circuits. Electrical distributors and switchgear suppliers benefit from its fast-acting protection and reliability in demanding environments.

Specifications

• Amperage Rating: 200 A
• Voltage Rating: 250 V AC / DC
• Interrupt Rating: 200 kA
• Fuse Class: Class RK1
• Mounting Type: Clip
• Connection: Blade
• Dimensions (L x W x H): 7.13 in x 1.56 in x 1.56 in
• Diameter: 1.56 inches
• Product Weight: 0.8090 lb
• Insulation Material: PolyTube
• Manufacturer Part Number: A2K200R
• Manufacturer: Mersen

Features

• Fast-acting fuse providing high degree of current limitation for low peak let-thru current
• Rejection style design prevents replacement by other fuse classes
• Fiberglass body offers dimensional stability in harsh industrial environments
• Easy-to-read imprint label for quick recognition and replacement
• UL listed to standard 248-12 and CSA certified for safety compliance
