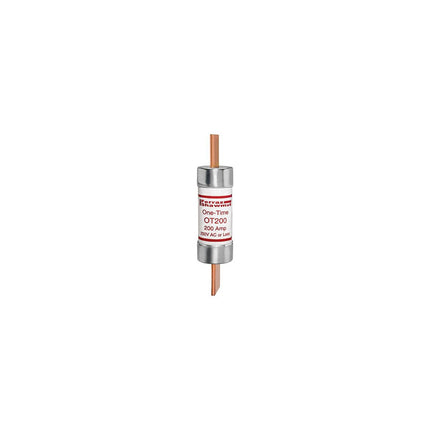

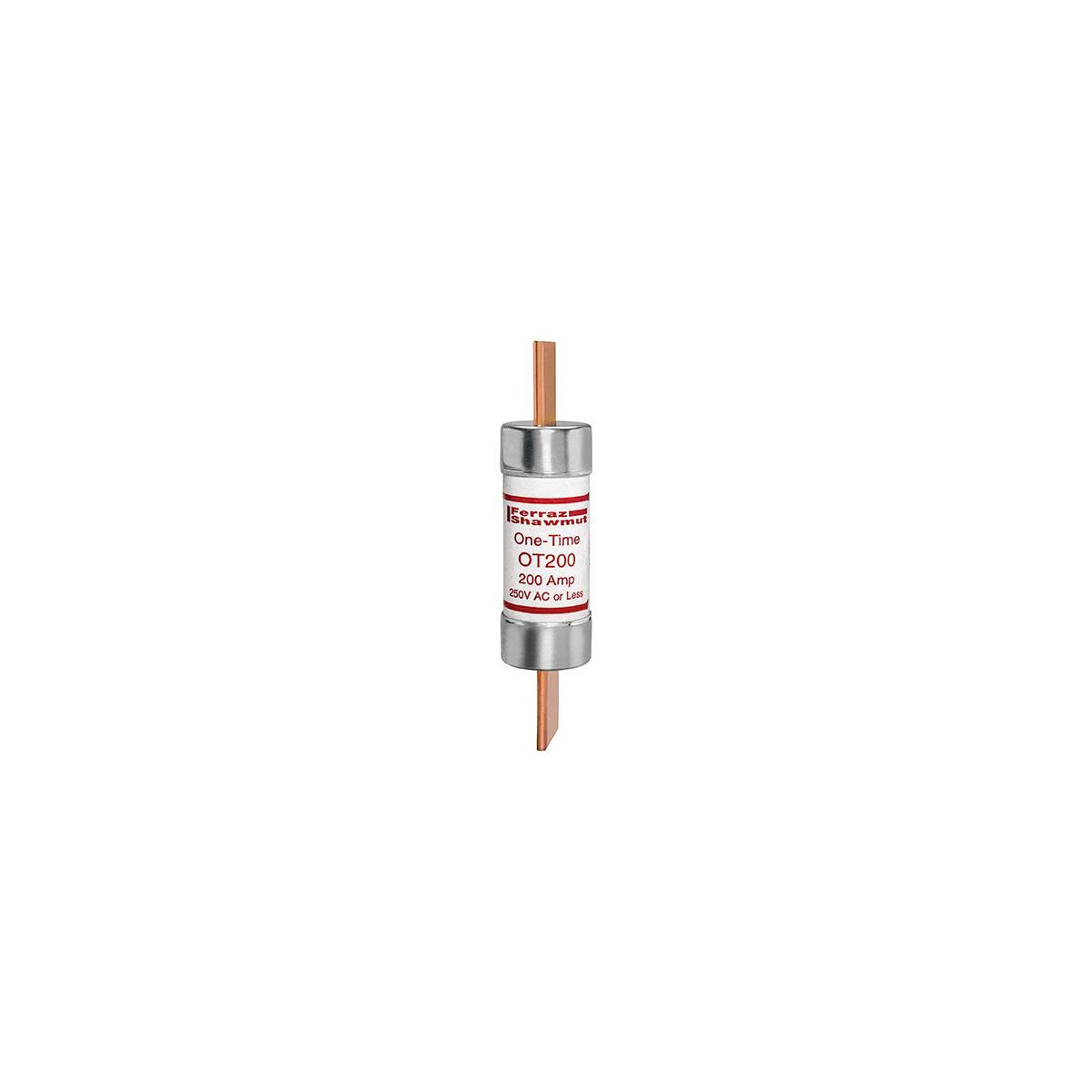

Fuse Amp-Trap® 250V 200A Fast-Acting Class K5 OT Series Fuse

The Fuse Amp-Trap® 250V 200A Fast-Acting Class K5 OT Series is designed for low-cost protection of feeders and branch circuits in residential and small commercial installations. It provides reliable interruption of short-circuit currents up to 50,000 amperes, suitable for resistive heating, lighting, and other non-motor loads. This fuse is a key component for electrical distributors and switchgear suppliers focusing on safe and efficient circuit protection.

Specifications

• Amperage Rating: 200 A
• Voltage Rating: 250 V
• Interrupt Rating: 50 kA
• Class: Class K5
• Fuse Class: Class K5
• Dimensions (L x W x H): 7.13 in x 1.56 in x 1.56 in
• Diameter: 1.56 inches
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: PolyTube
• Product Weight: 0.7330 lbs
• Manufacturer Part #: OT200
• Application: Feeders, Branch circuits, Resistive heating, Residential and small commercial installations

Features

• One-time OT and OTN general purpose fuses providing cost-effective protection
• Safe interruption of short-circuit currents up to 50,000 amperes
• Designed for lighting, heating, and other non-motor load applications
• Not a rejection fuse; replacement fuses must meet or exceed original interrupting ratings
• OTN(15-60) models meet Canadian electrical code requirements for Type P low melting-point, non-time-delay fuses
