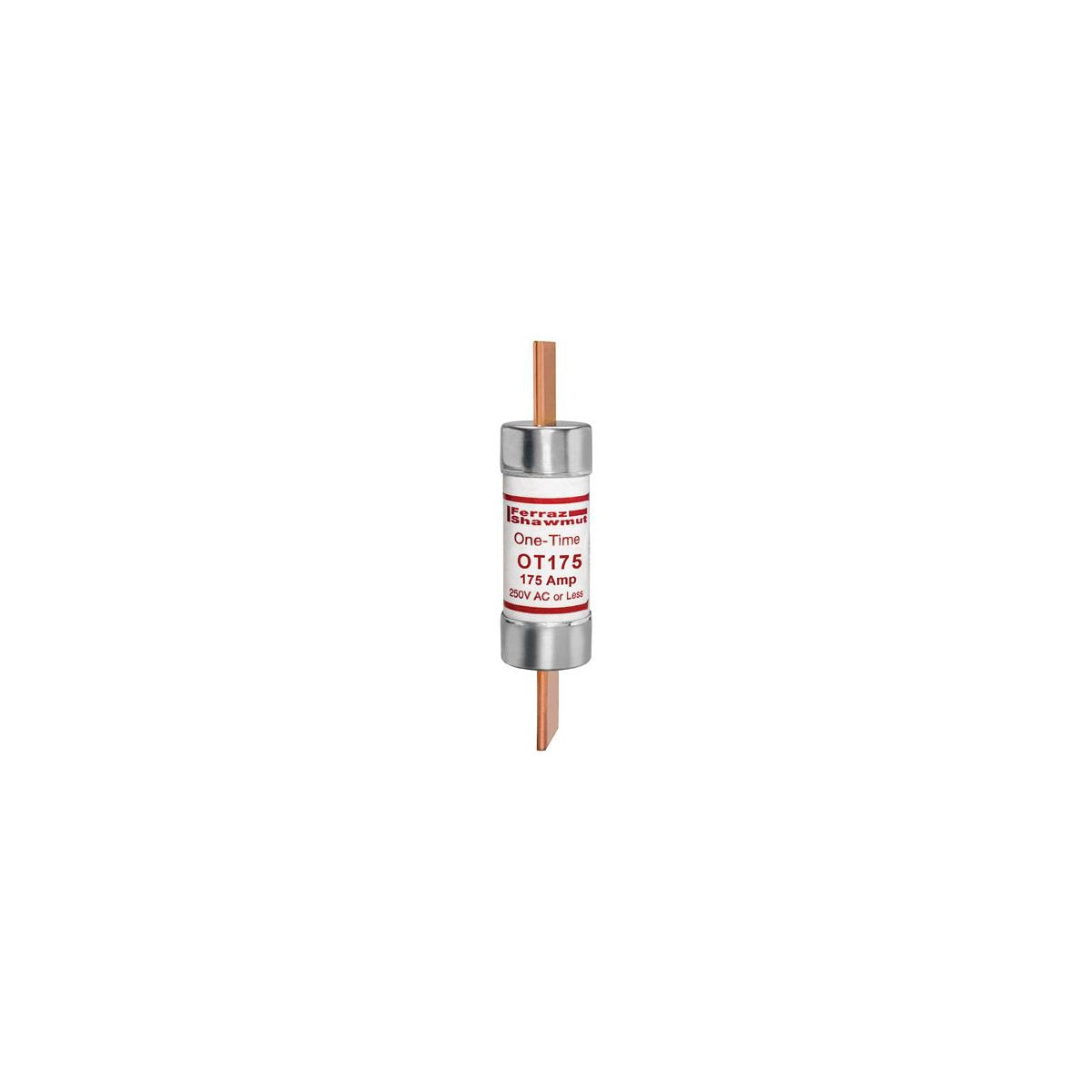

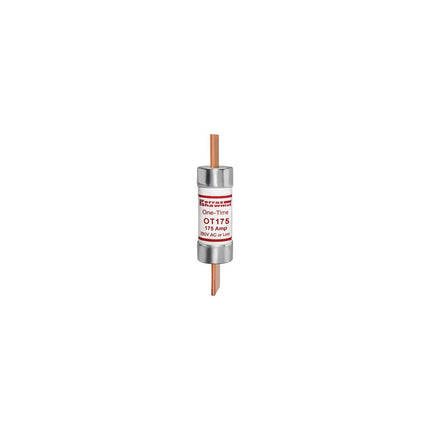

Fuse Amp-Trap® 250V 175A Fast-Acting Class K5 OT Series
SKU: #196710
Part: #OT175
UPC: 782001700355
Fuse Amp-Trap® 250V 175A Fast-Acting Class K5 OT Series
SKU: #196710
Part: #OT175
UPC: 782001700355
Total Price: $43.07 per each Sold in increments of 1 each
Description
Fuse Amp-Trap® 250V 175A Fast-Acting Class K5 OT Series Fuse
The Fuse Amp-Trap® OT Series is designed for low-cost, general-purpose protection of feeders and branch circuits in residential and small commercial electrical installations. It is suitable for resistive heating, lighting, and other non-motor loads. This fast-acting fuse provides reliable interruption of short-circuit currents up to 50,000 amperes, meeting the requirements of electrical distributors and switchgear suppliers seeking dependable overcurrent protection solutions.
Specifications
- Amperage Rating: 175 A
- Voltage Rating: 250 V
- Interrupting Rating: 50 kA
- Fuse Class: Class K5
- Dimensions (L x W x H): 7.13 in x 1.56 in x 1.56 in
- Diameter: 1.56 inches
- Mounting Type: Clip
- Connection: Blade
- Insulation Material: PolyTube
- Product Weight: 0.7330 lbs
- Manufacturer Part #: OT175
- Manufacturer: Mersen
- Application: Feeders, Branch circuits, Resistive heating, Residential and small commercial installations
Features
- One-time, fast-acting fuse for reliable short-circuit protection
- Meets Canadian electrical code for Type P low melting-point, non-time-delay fuses (OTN series)
- Safe interruption of short-circuit currents up to 50,000 amperes
- General purpose fuse suitable for lighting, heating, and non-motor loads
- Not a rejection fuse; replacement must match or exceed original interrupting rating
