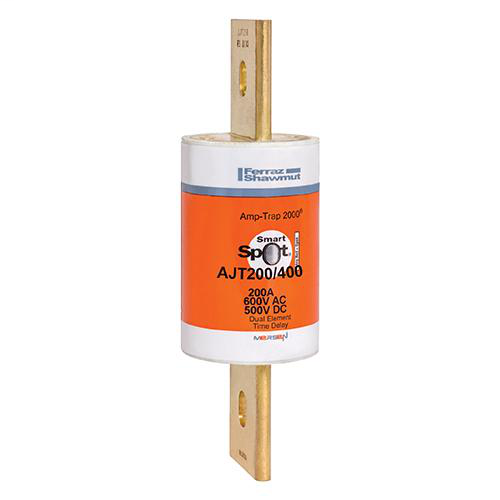

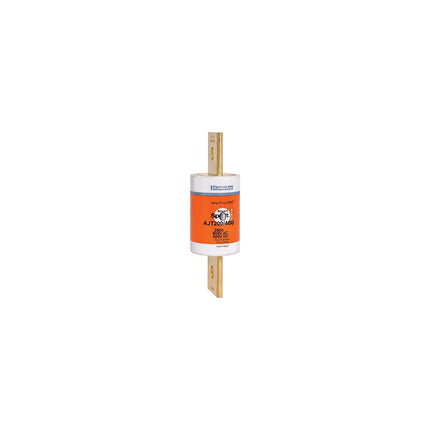

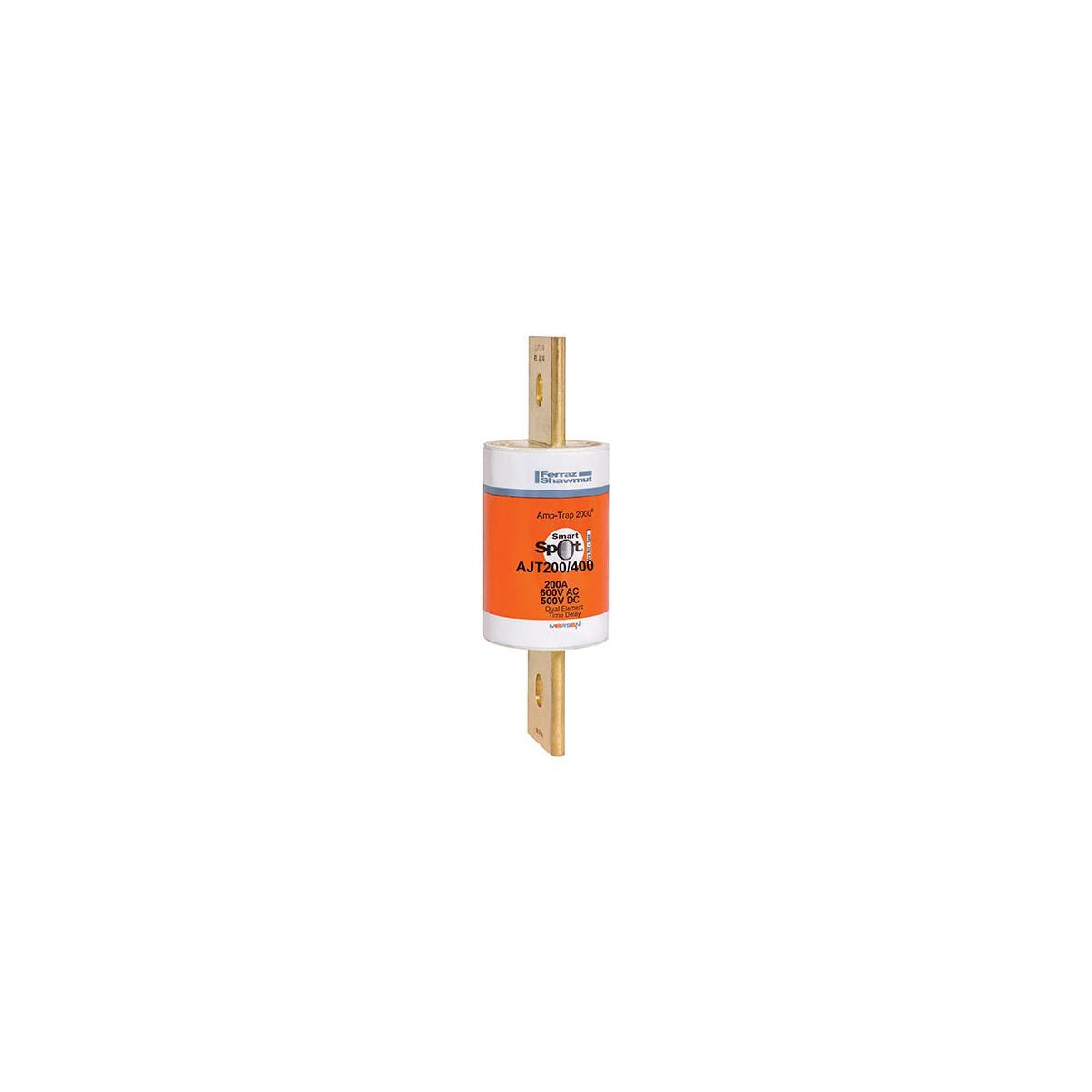

Fuse Amp-Trap 600V 200A Time-Delay Class J AJT Reducer 400 Series Smart-Spot
SKU: #195448
Part: #AJT200/400
UPC: 782001447410
Fuse Amp-Trap 600V 200A Time-Delay Class J AJT Reducer 400 Series Smart-Spot
SKU: #195448
Part: #AJT200/400
UPC: 782001447410
Description
Fuse Amp-Trap 600V 200A Time-Delay Class J AJT Reducer 400 Series Smart-Spot – Electrical Fuse
The Fuse Amp-Trap 600V 200A Time-Delay Class J AJT Reducer 400 Series Smart-Spot by Mersen is designed for safe and permanent current rating reduction without the use of temporary fuse reducers. It provides reliable protection in motor circuits, mains feeders, branch circuits, lighting, heating, general loads, transformers, control panels, circuit breaker backup, bus duct, and load centers. This fuse is suitable for electrical distributors and switchgear suppliers requiring dependable fuse solutions with high interrupt ratings and time-delay characteristics.
Specifications
- Manufacturer: Mersen
- Amperage Rating: 200 A
- Voltage Rating: 600V AC / 500V DC
- Interrupt Rating: 200 kA
- Fuse Class: Class J
- Mounting Type: Bolted or Clip
- Connection Type: Blade
- Dimensions (L x W x H): 7.13 in x 2.12 in x 2.12 in
- Diameter: 2.12 inches
- Product Weight: 1.9 lbs
- Insulation Material: GMG
- Manufacturer Part Number: AJT200/400
Features
- Permanent solution for reducing current rating without temporary fuse reducers
- Time-delay action for motor starting and transformer inrush currents
- Highly current-limiting to reduce peak currents and arc flash energy
- Orange label for quick identification
- Durable fiber glass body for dimensional stability in industrial environments
- High-quality silica sand for rapid arc extinction
- Optional mechanical indicator/microcontact for fuse status
- UL Listed and CSA certified to applicable standards
