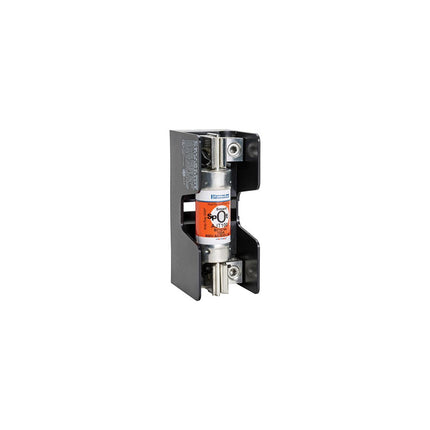

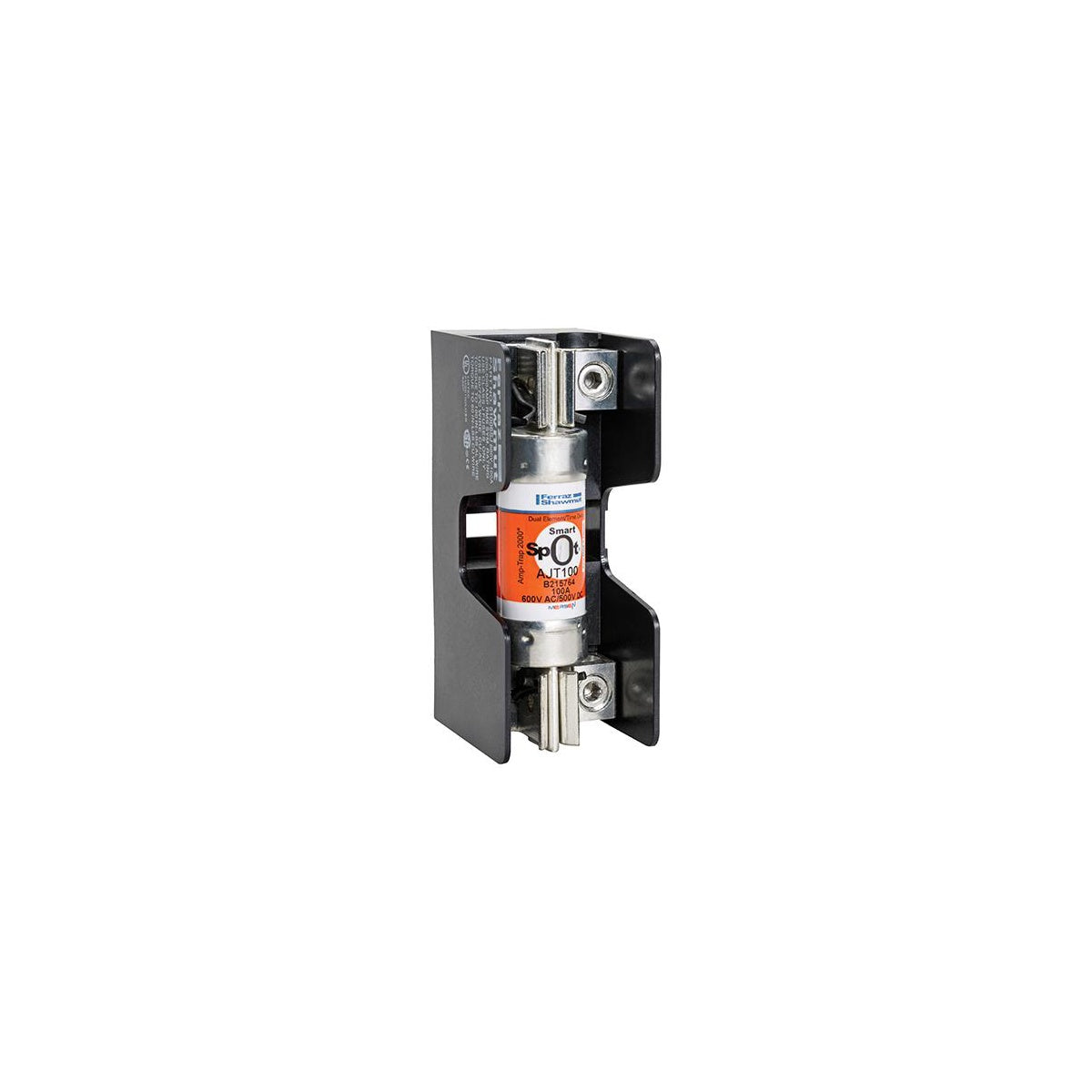

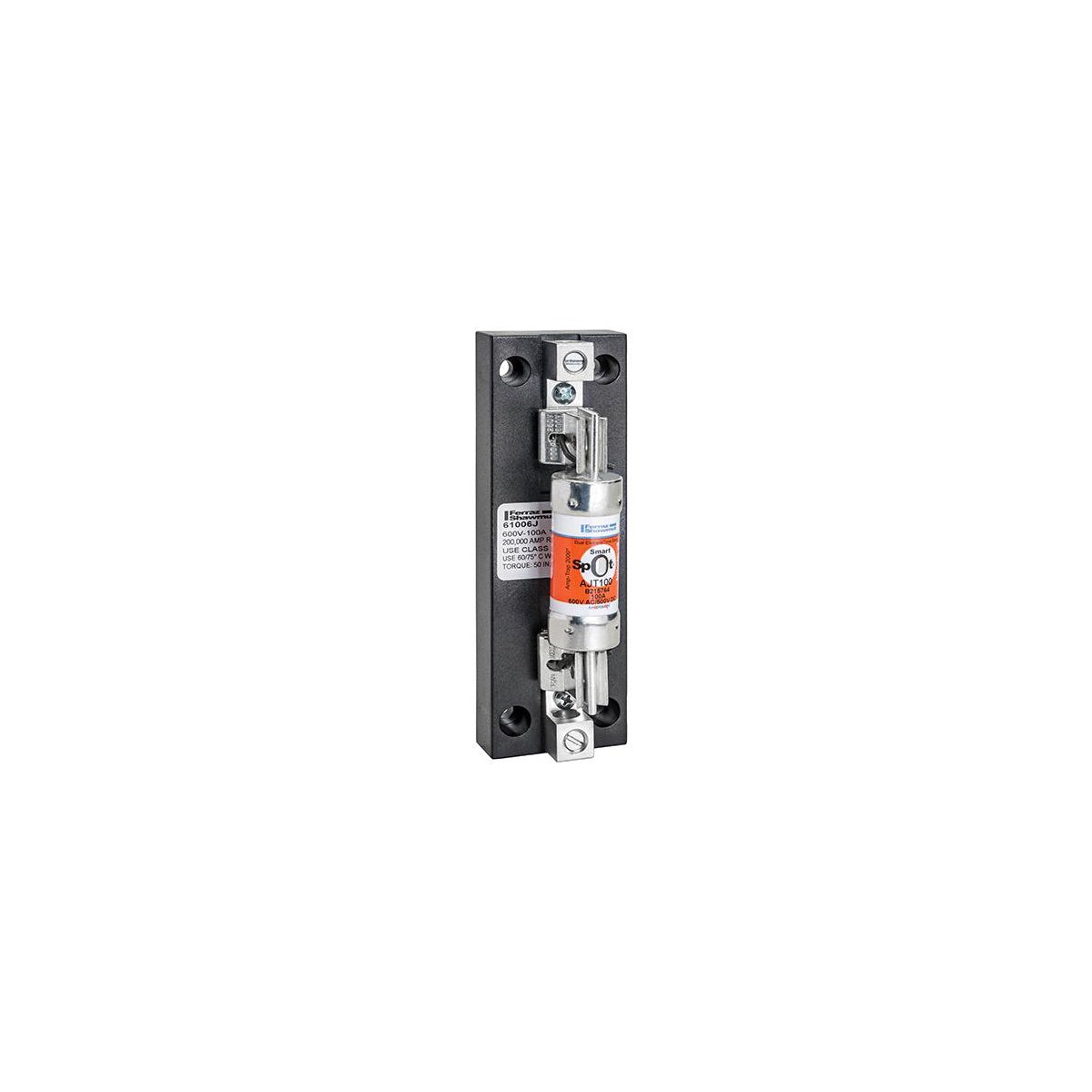

Fuse Amp-Trap 2000® 600V 90A Time-Delay Class J AJT Series Smart-Spot

The Fuse Amp-Trap 2000® AJT Series provides advanced time-delay protection for motor circuits, mains feeders, branch circuits, lighting, heating, transformers, control panels, circuit breaker back-up, bus ducts, and load centers. This Class J fuse is designed with SmartSpot visual open fuse indication and offers IEC Type 2 no damage protection. Its compact size requires only half the mounting space of traditional 600VAC Class RK fuses. The AJT fuse’s time-delay characteristics are optimized for handling motor and transformer inrush currents while delivering superior current-limiting performance. Ideal for electrical distributors and switchgear suppliers focusing on reliable circuit protection and efficient lighting solutions.

Specifications

• Amperage Rating: 90 A
• Voltage Rating: 600 V
• Fuse Class: Class J
• Interrupt Rating: 200 kA
• Frequency: 50 hertz
• Dimensions (L x W x H): 4.63 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Mounting Type: Bolted
• Connection Type: Blade
• Insulation Material: GMG
• Product Weight: 0.2410 lb

Features

• SmartSpot visual fuse open indicator for quick identification
• Time-delay characteristics ideal for motor and transformer inrush currents
• IEC Type 2 no damage protection for main, feeder, and branch circuits
• Compact size requiring half the mounting space of 600VAC Class RK fuses
• High current-limiting capability to reduce fault energy
• Clip or bolted mounting options
• Orange label for rapid fuse identification
• Durable fiber glass body providing dimensional stability in industrial environments
