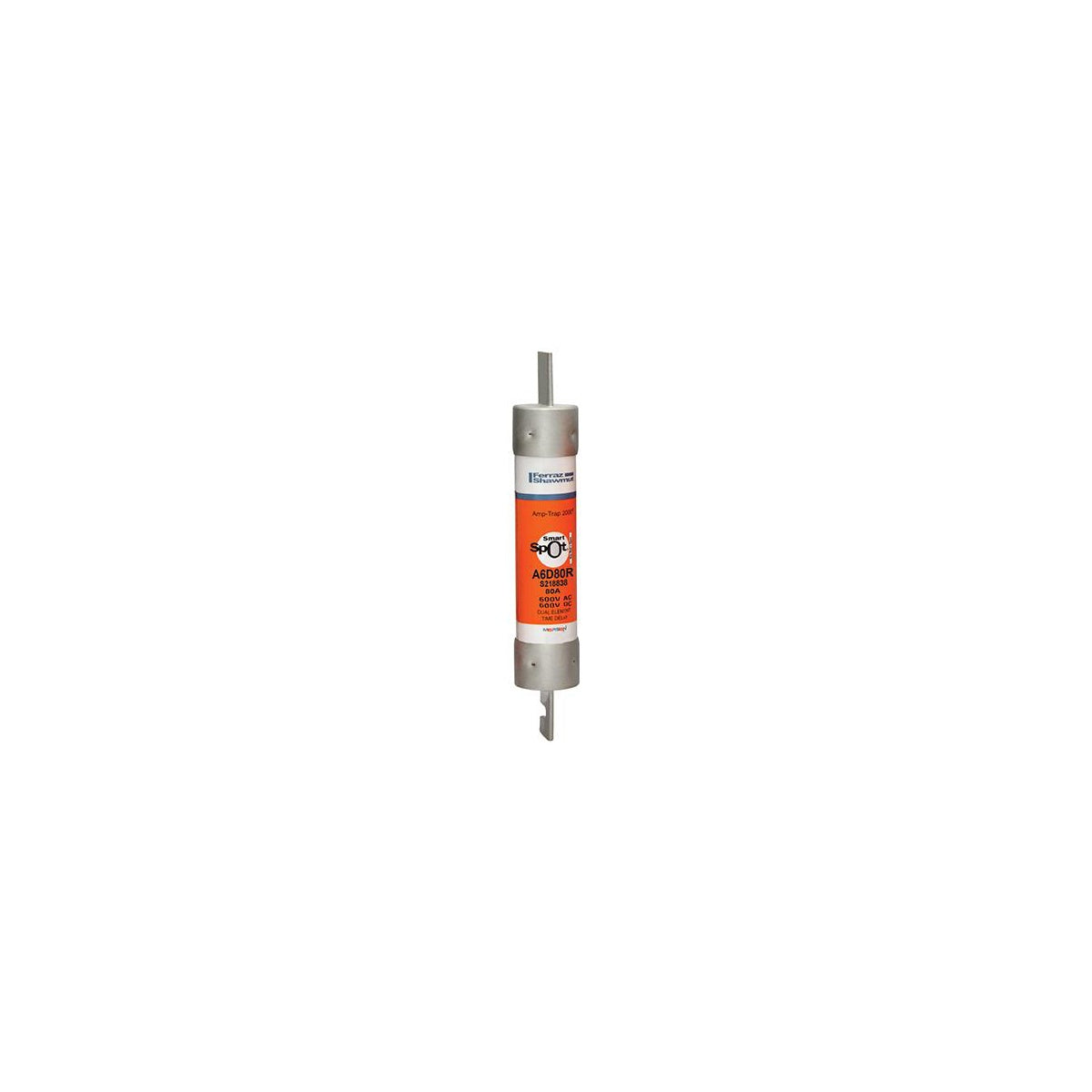

Fuse Amp-Trap 2000® 600V 80A Time-Delay Class RK1 A6D Series Smart-Spot

The Fuse Amp-Trap 2000® A6D-R series is designed to provide IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels in general-purpose electrical circuits. This time-delay fuse is suitable for both motor and non-motor loads, offering fast interruption under extreme fault conditions to protect motor starters, switches, and circuit components while allowing for motor inrush currents. It is compatible as a replacement for older 600V Class H, K, or RK5 fuses in existing installations. Electrical distributors and switchgear suppliers will find this fuse useful for reliable circuit protection in industrial and commercial applications.

Specifications

• Amperage Rating: 80 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Fuse Class: Class RK1
• Mounting Type: Clip
• Connection: Blade
• Dimensions (L x W x H): 7.88 in x 1.31 in x 1.31 in
• Diameter: 1.31 inches
• Product Weight: 0.6180 lbs
• Insulation Material: PolyTube

Features

• IEC Type 2 "no damage" time-delay protection
• Fast-acting under extreme fault conditions for maximum short circuit protection
• Time-delay characteristic accommodates motor inrush currents
• Direct replacement for older 600V Class H, K, or RK5 fuses
• SmartSpot indicator for easy fuse status identification
