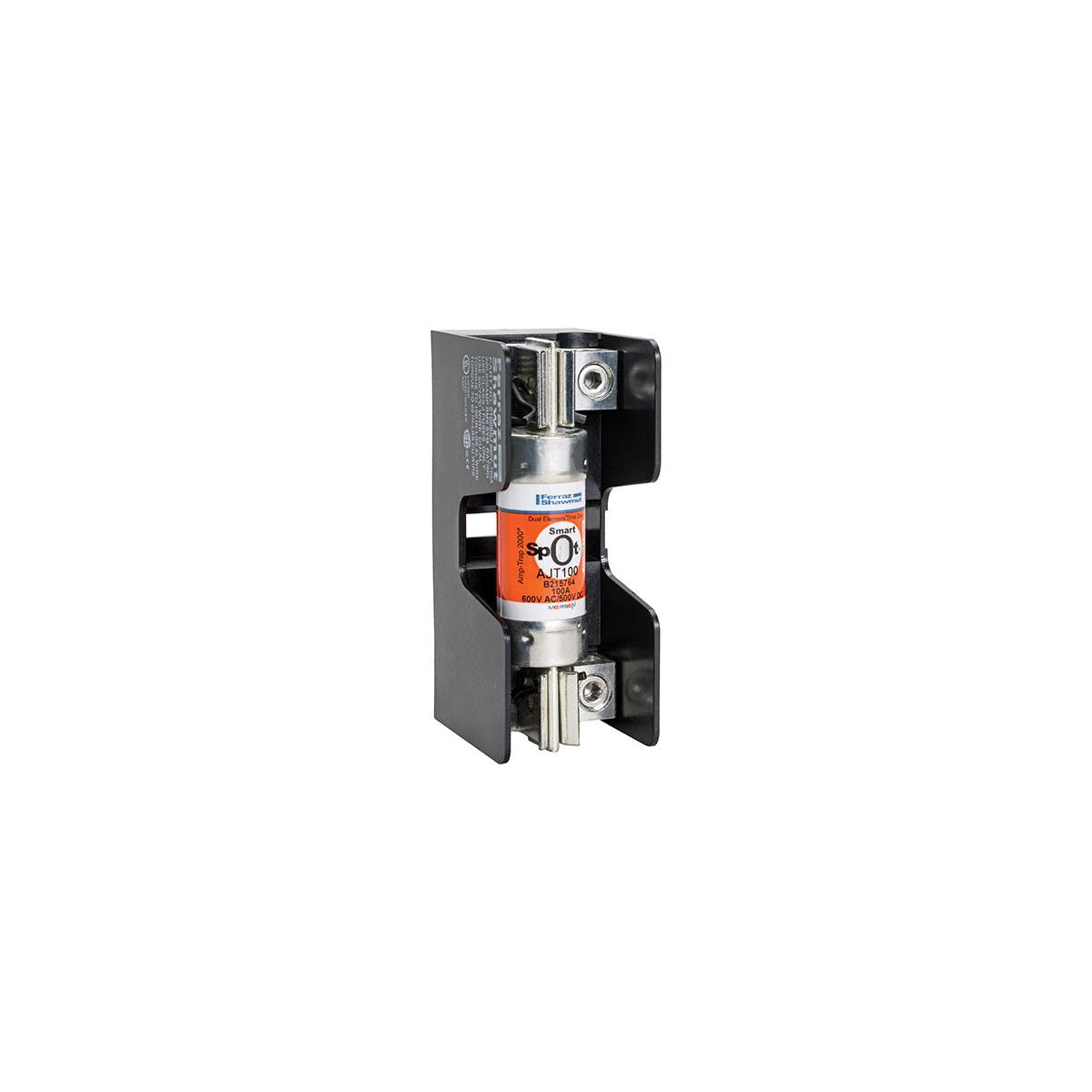

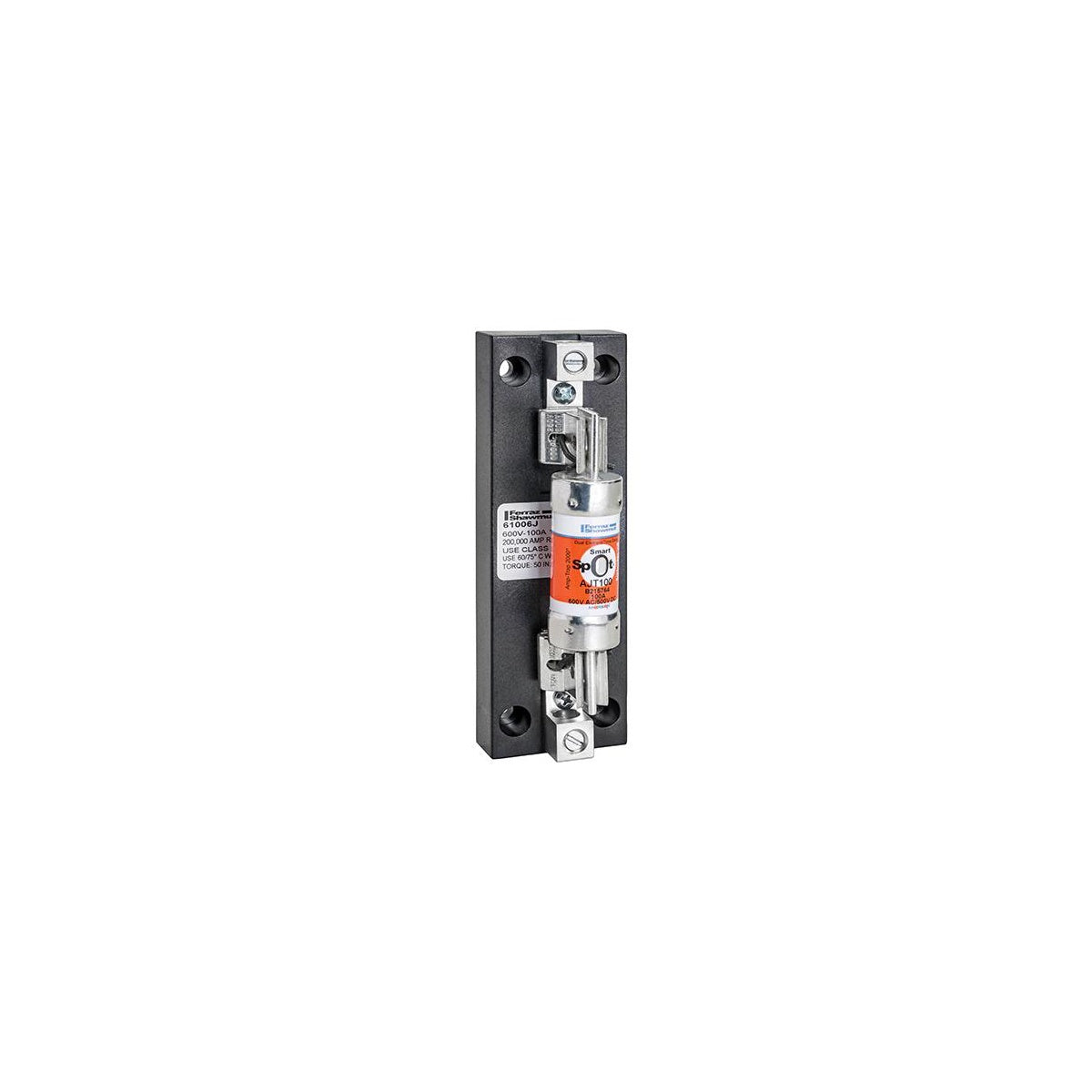

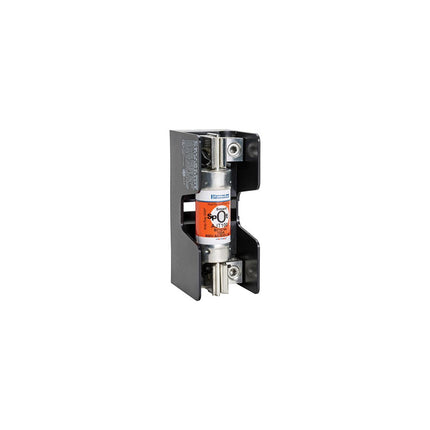

Fuse Amp-Trap 2000® 600V 80A Time-Delay Class J AJT Series Smart-Spot

The Fuse Amp-Trap 2000® AJT Series is a time-delay Class J fuse designed for motor circuits, mains feeders, branch circuits, lighting, heating, and general loads. It provides IEC Type 2 no damage protection for main, feeder, and branch circuits, suitable for transformers, control panels, circuit breaker back-up, bus duct, and load centers. This fuse is ideal for electrical distributors and lighting solutions requiring compact, reliable protection with superior current-limiting capabilities and SmartSpot visual open fuse indication.

Specifications

• Amperage Rating: 80 A
• Voltage Rating: 600 V AC
• Fuse Class: Class J
• Interrupt Rating: 200 kA
• Frequency: 50 hertz
• Dimensions (L x W x H): 4.63 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Mounting Type: Bolted
• Connection Type: Blade
• Insulation Material: GMG
• Product Weight: 0.2410 lbs

Features

• SmartSpot visual open fuse indicator for easy fuse status identification
• Time-delay characteristics ideal for motor starting and transformer inrush currents
• Compact size requiring half the mounting space compared to 600VAC Class RK fuses
• IEC Type 2 no damage protection ensures circuit integrity after fault clearing
• High-quality fiberglass body for dimensional stability in industrial environments
• Silica sand filler for rapid arc extinction
• Suitable for clip or bolted mounting
• Orange label for quick identification and durability with engraved manufacturing date and catalog number
