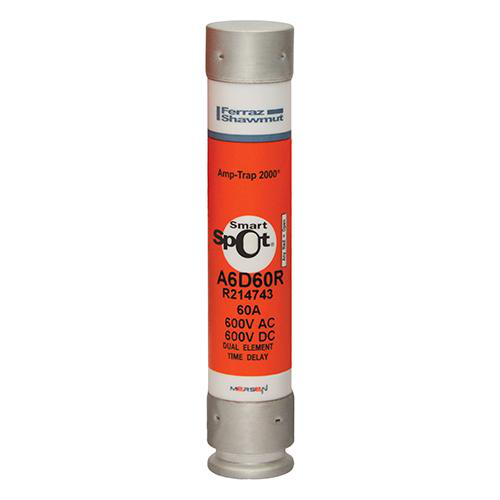

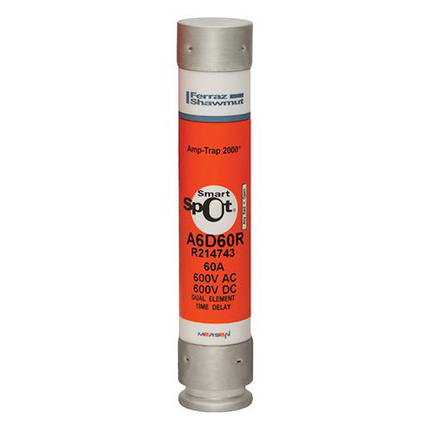

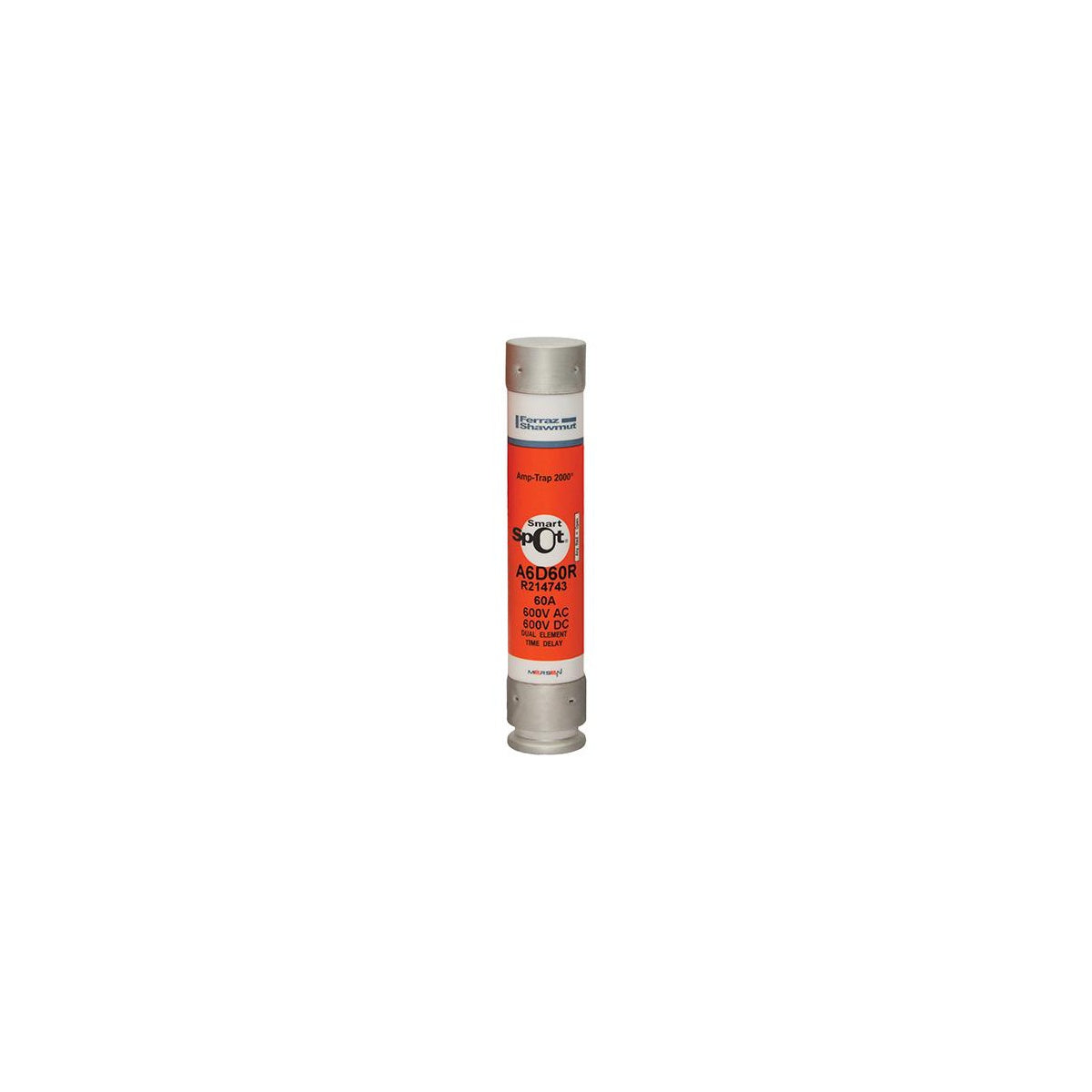

Fuse Amp-Trap 2000® 600V 60A Time-Delay Class RK1 A6D Series Smart-Spot

The Fuse Amp-Trap 2000® A6D-R series is designed for reliable time-delay protection in electrical distribution systems. It provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving both motor and non-motor loads. Suitable for use in applications including motor safety switches, transformers, branch circuit protection, disconnects, and control panels. This fuse is compatible with existing 600V Class H, K, or RK5 fuse installations, offering enhanced short circuit protection while accommodating motor inrush currents. Ideal for electrical distributors and switchgear suppliers seeking robust fuse solutions.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A6D60R
• Amperage Rating: 60 A
• Voltage Rating: 600 V AC/DC
• Fuse Class: Class RK1
• Interrupt Rating: 200 kA
• Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Weight: 0.34 lbs
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: PolyTube
• UPC: 782001992040

Features

• IEC Type 2 "no damage" time-delay protection
• Fast operation under extreme fault conditions for maximum short circuit protection
• Time-delay characteristic accommodates motor inrush currents
• Compatible replacement for older 600V Class H, K, or RK5 fuses
• Smart-Spot feature for quick visual fuse status identification
• PolyTube insulation for enhanced safety and durability
