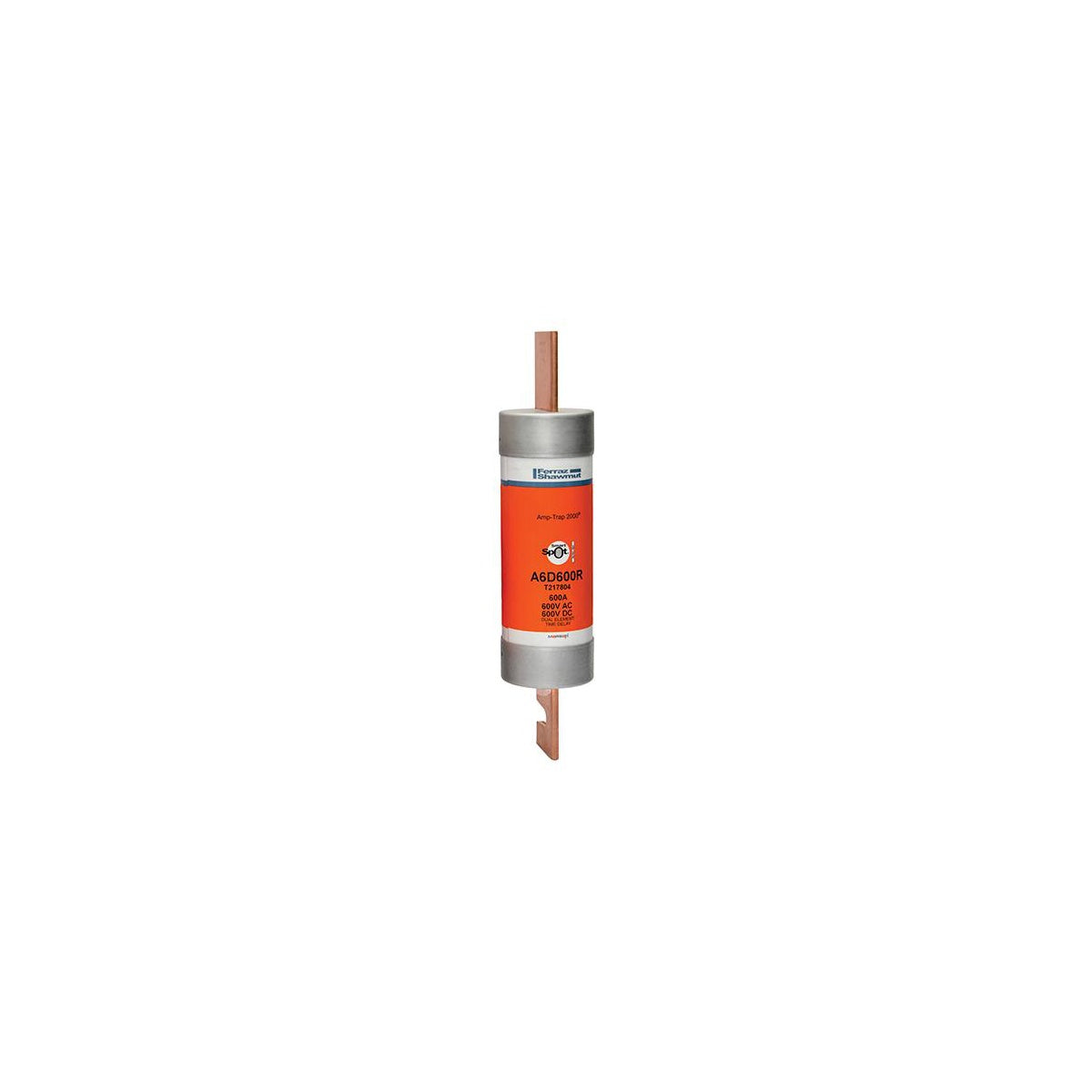

Fuse Amp-Trap 2000® 600V 600A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195206
Part: #A6D600R
UPC: 782001992309
Fuse Amp-Trap 2000® 600V 600A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195206
Part: #A6D600R
UPC: 782001992309
Description
Fuse Amp-Trap 2000® 600V 600A Time-Delay Class RK1 A6D Series Smart-Spot
The Amp-Trap 2000® SmartSpot time-delay fuse A6D-R provides IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. Designed for both motor and non-motor loads, this fuse delivers fast interruption under extreme fault conditions to protect circuit components such as motor starters and switches, while allowing time-delay for motor inrush currents. It is suitable for replacing older 600V Class H, K, or RK5 fuses in existing installations. This product is ideal for electrical distributors and switchgear suppliers requiring reliable fuse solutions for general-purpose circuits.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A6D600R
- Fuse Class: Class RK1
- Amperage Rating: 600 A
- Interrupt Rating: 200 kA
- Voltage Rating: 600 V AC/DC
- Dimensions (L x W x H): 13.38 in x 3.12 in x 3.12 in
- Diameter: 3.12 inches
- Connection Type: Blade
- Mounting Type: Clip
- Insulation Material: PolyTube
- Product Weight: 4.82 lbs
- Application: Motors, Safety switches, Transformers, Branch circuit protection, Disconnects, Control panels, All general-purpose circuits
Features
- IEC Type 2 "no damage" protection for mains, feeders, and branch circuits
- Time-delay design allows motor inrush current without nuisance blowing
- Fast-acting fuse to prevent damage under extreme fault conditions
- Compatible replacement for older 600V Class H, K, or RK5 fuses
- SmartSpot indicator for easy visual fuse status identification
