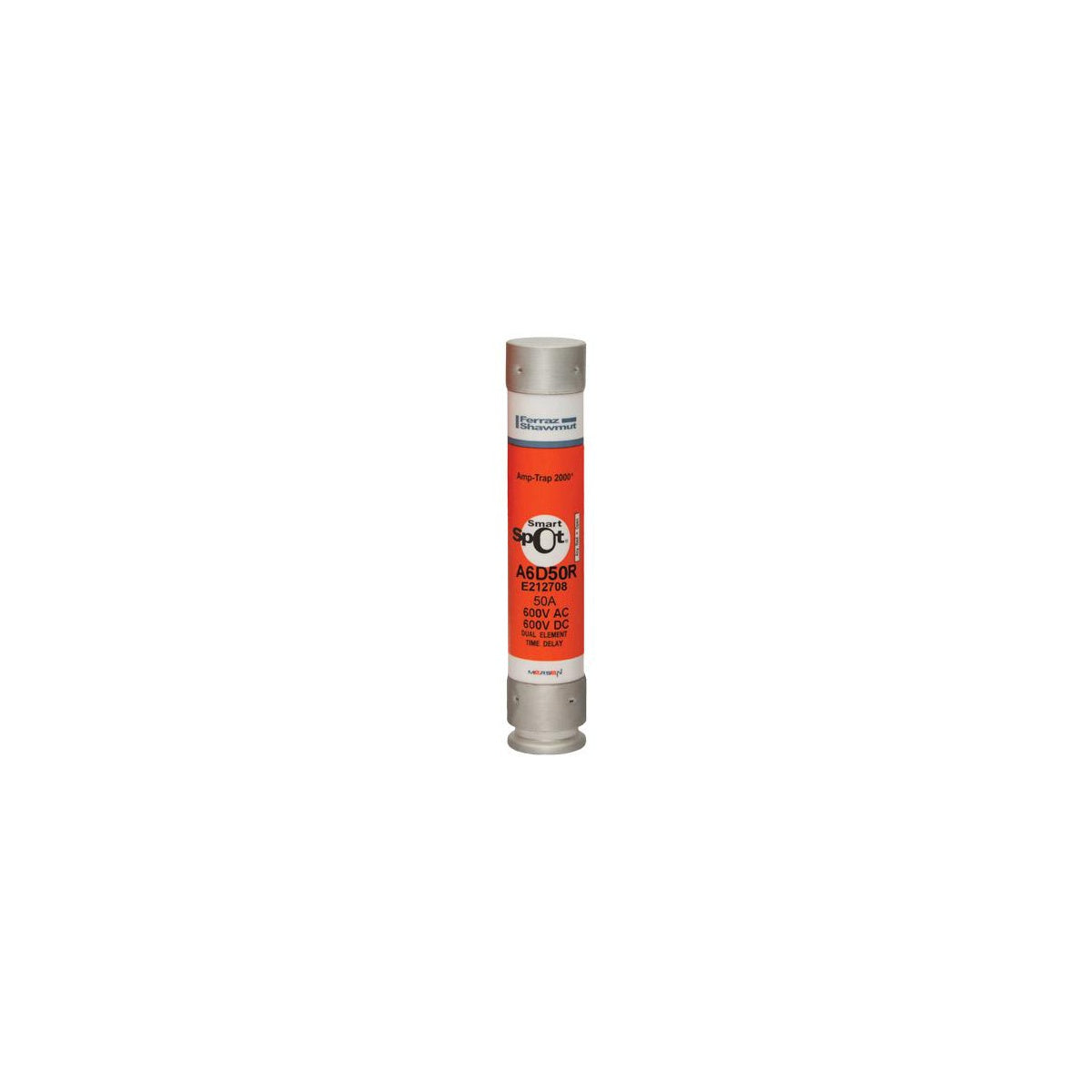

Fuse Amp-Trap 2000® 600V 50A Time-Delay Class RK1 A6D Series Smart-Spot

The Amp-Trap 2000® SmartSpot time-delay fuse A6D-R series is designed to provide IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. It offers reliable protection for both motor and non-motor loads by opening quickly under extreme fault conditions to prevent damage to motor starters and other circuit components, while allowing time-delay for motor inrush currents. This fuse is suitable for general-purpose circuits and can replace older 600V Class H, K, or RK5 fuses.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A6D50R
• Class: Class RK1
• Fuse Class: Class RK1
• Voltage Rating: 600 V AC/DC
• Amperage Rating: 50 A
• Interrupt Rating: 200 kA
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: PolyTube
• Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Product Weight: 0.34 lb
• Application: Motors, Safety switches, Transformers, Branch circuit protection, Disconnects, Control panels, All general-purpose circuits

Features

• IEC Type 2 "no damage" time-delay fuse providing enhanced protection
• Fast operation under extreme fault conditions to protect circuit components
• Time-delay characteristic accommodates motor inrush currents
• SmartSpot indicator for easy visual fuse status identification
• Direct replacement for older 600V Class H, K, or RK5 fuses
