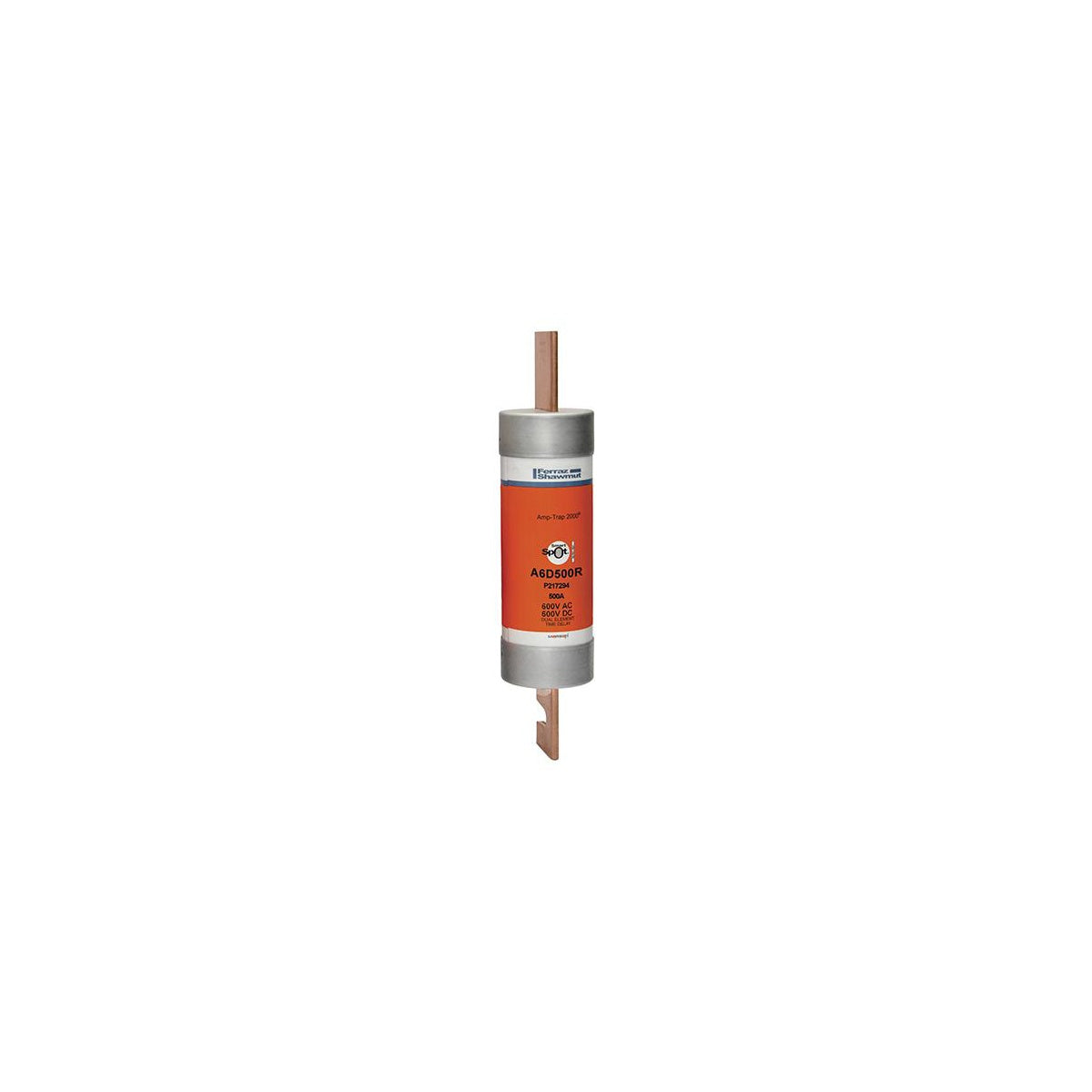

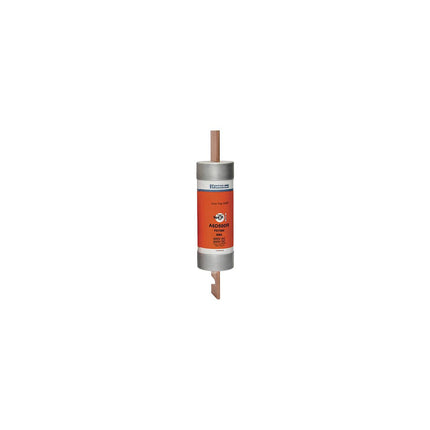

Fuse Amp-Trap 2000® 600V 500A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195175
Part: #A6D500R
UPC: 782001992293
Fuse Amp-Trap 2000® 600V 500A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195175
Part: #A6D500R
UPC: 782001992293
Description
Fuse Amp-Trap 2000® 600V 500A Time-Delay Class RK1 A6D Series Smart-Spot
The Amp-Trap 2000® SmartSpot A6D-R fuse is designed for reliable protection of motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. It offers IEC Type 2 "no damage" time-delay protection, providing fast response under extreme fault conditions to safeguard motor starters, switches, and other circuit components while allowing for motor inrush currents. Suitable for general-purpose circuits, this fuse is compatible with existing 600V Class H, K, or RK5 fuse installations, making it a practical solution for electrical distributors and switchgear suppliers requiring dependable wire and cable protection.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A6D500R
- Amperage Rating: 500 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Fuse Class: Class RK1
- Mounting Type: Clip
- Connection Type: Blade
- Insulation Material: PolyTube
- Dimensions (L x W x H): 13.38 in x 3.12 in x 3.12 in
- Diameter: 3.12 inches
- Product Weight: 4.82 lbs
Features
- IEC Type 2 "no damage" time-delay protection
- Fast operation under extreme fault conditions for maximum short circuit protection
- Time-delay feature allows for motor inrush current accommodation
- Replacement for older 600V Class H, K, or RK5 fuses
- SmartSpot indicator for easy fuse status identification
