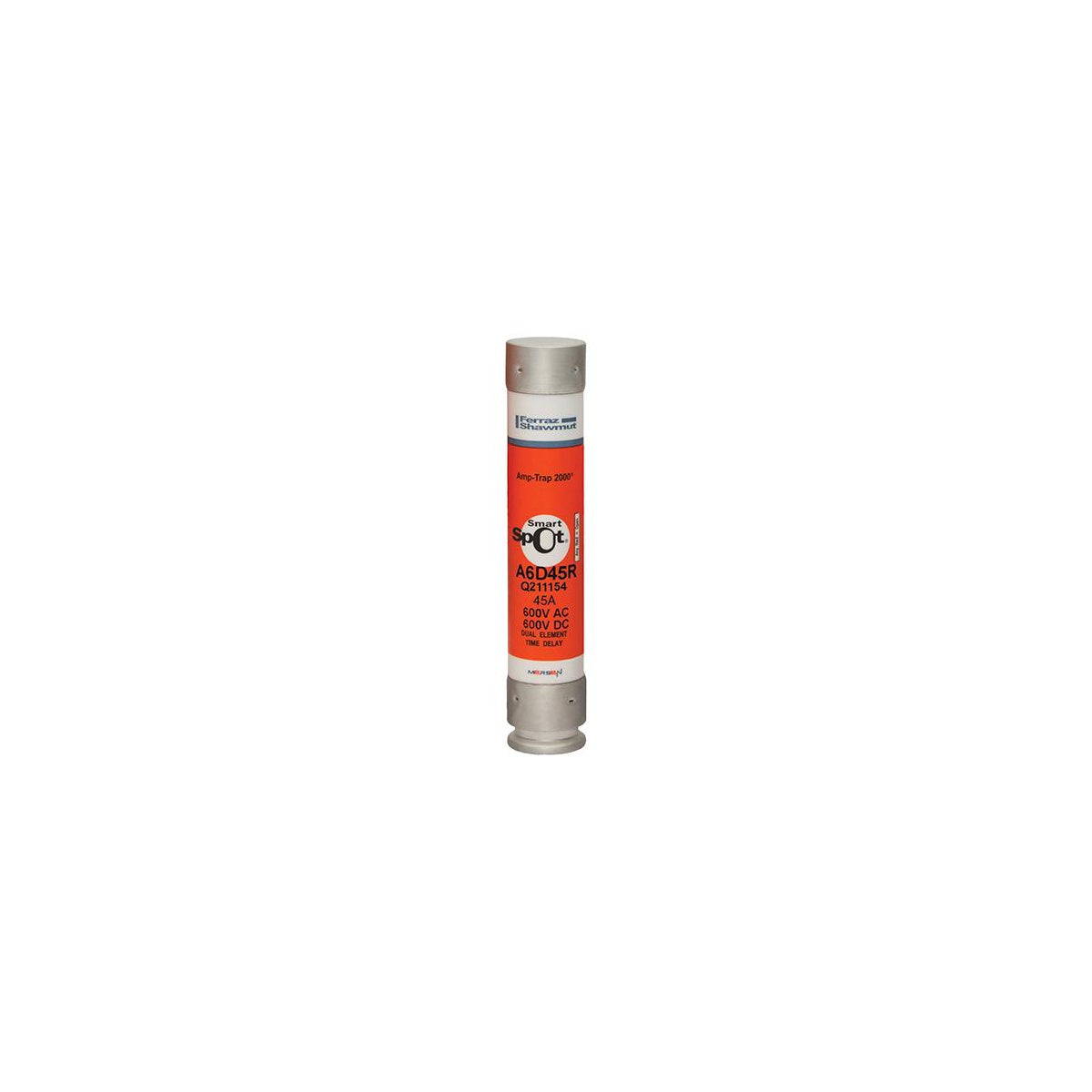

Fuse Amp-Trap 2000® 600V 45A Time-Delay Class RK1 A6D Series Smart-Spot

The Amp-Trap 2000® SmartSpot time-delay A6D-R fuse is designed to provide IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. It is suitable for all general-purpose circuits requiring reliable short circuit protection with time-delay capabilities to accommodate motor in-rush currents. This fuse is compatible with existing mains, feeders, and branch circuits serving motor and non-motor loads and can replace older 600V Class H, K, or RK5 fuses in the field. It is ideal for electrical distributors and switchgear suppliers seeking dependable fuse solutions for wire and cable protection in lighting and electrical systems.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A6D45R
• Fuse Class: Class RK1
• Amperage Rating: 45 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: PolyTube
• Product Weight: 0.34 lbs

Features

• IEC Type 2 "no damage" time-delay protection for motors and general circuits
• Fast-acting under extreme fault conditions to protect motor starters and switches
• Time-delay design to accommodate motor in-rush currents
• Direct replacement for older 600V Class H, K, or RK5 fuses
• SmartSpot indicator for easy fuse status identification
