Description

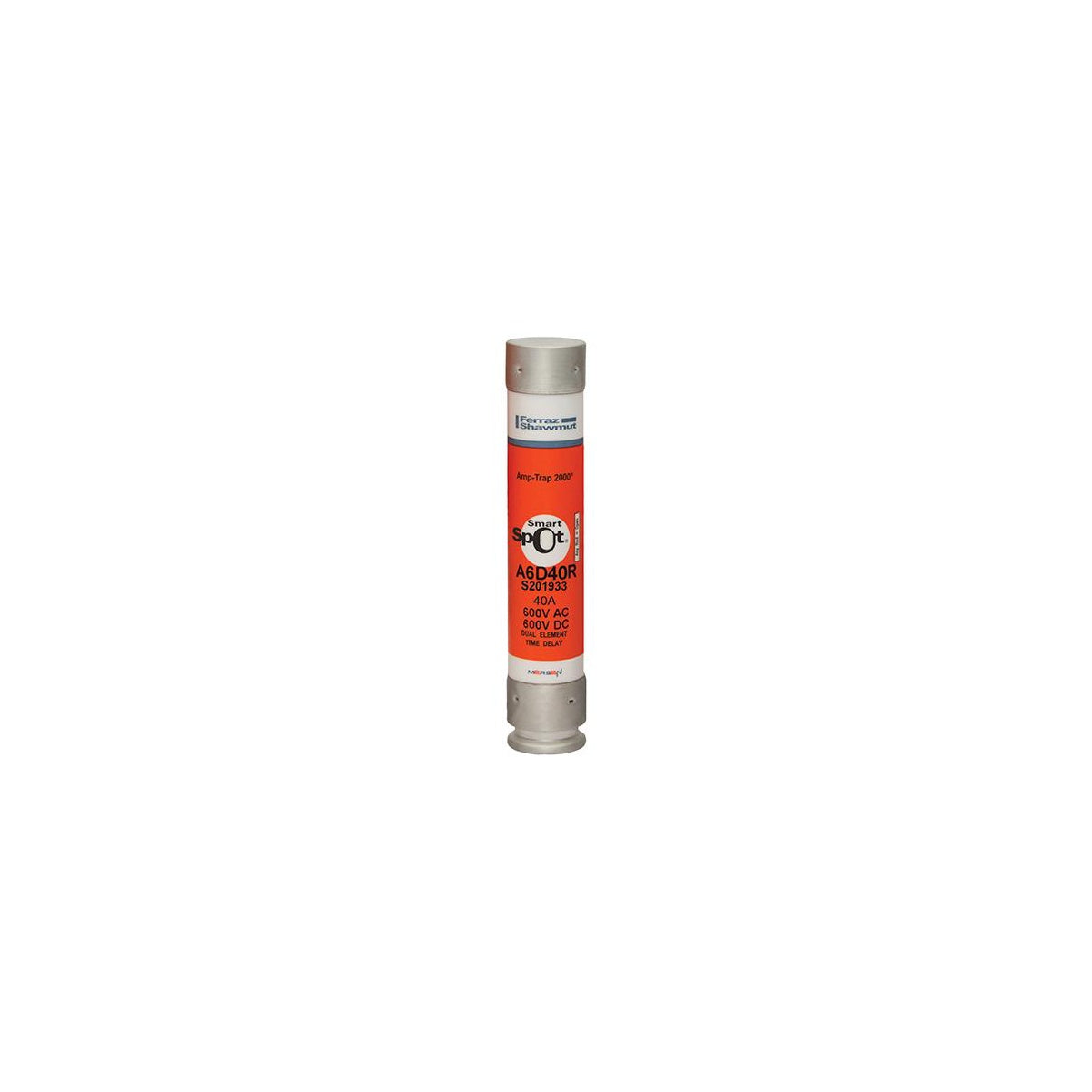

Fuse Amp-Trap 2000® 600V 40A Time-Delay Class RK1 A6D Series Smart-Spot
The Fuse Amp-Trap 2000® 600V 40A Time-Delay Class RK1 A6D Series Smart-Spot is designed to provide IEC Type 2 "no damage" protection for motors, transformers, branch circuits, disconnects, and control panels. This fuse offers time-delay characteristics to accommodate motor in-rush currents while delivering fast interruption under extreme fault conditions, making it suitable for general-purpose electrical circuits. It is compatible with existing 600V Class H, K, or RK5 fuse installations and is ideal for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers seeking reliable circuit protection.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A6D40R
- Class: Class RK1
- Fuse Class: Class RK1
- Amperage Rating: 40 A
- Interrupt Rating: 200 kA
- Voltage Rating: 600 V
- Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
- Diameter: 1.06 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Product Weight: 0.34 lbs
Features
- IEC Type 2 "no damage" protection for mains, feeders, and branch circuits
- Time-delay design for motor in-rush current accommodation
- Fast acting under extreme fault conditions to protect motor starters and switches
- Replacement for older 600V Class H, K, or RK5 fuses
- Smart-Spot indicator for easy fuse status identification
