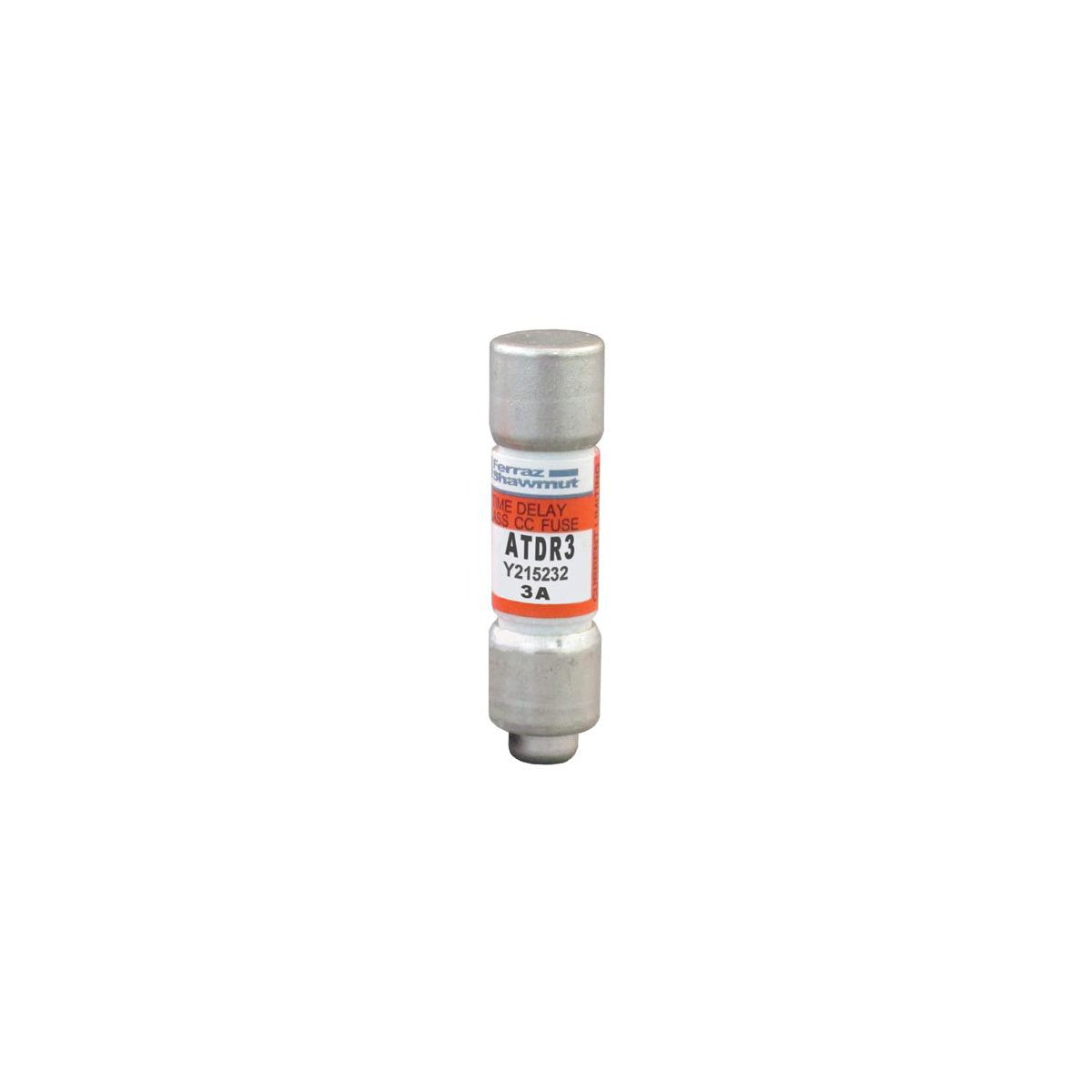

Fuse Amp-Trap 2000® 600V 3A Time-Delay Class CC ATDR Series
SKU: #195589
Part: #ATDR3
UPC: 782001900960
Fuse Amp-Trap 2000® 600V 3A Time-Delay Class CC ATDR Series
SKU: #195589
Part: #ATDR3
UPC: 782001900960
Description
Fuse Amp-Trap 2000® 600V 3A Time-Delay Class CC ATDR Series
The Fuse Amp-Trap 2000® ATDR Series is a Class CC time-delay fuse designed to provide IEC Type 2 "no damage" protection for sensitive branch circuit components and small motors. It is suitable for applications including small motors, contactors, lighting, heating, general loads, and branch circuit protection. This fuse offers superior time-delay characteristics with excellent cycling ability, making it ideal for electrical distributors and switchgear suppliers focused on reliable wire and cable protection and lighting solutions.
Specifications
- Amperage Rating: 3 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Fuse Class: Class CC
- Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part #: ATDR3
Features
- Time-delay design prevents unnecessary fuse blowing during motor startup currents
- Highly current-limiting for reduced peak let-through currents
- Enhanced cycling capability for frequent motor stops and starts
- Orange label for immediate visual identification and simplified replacement
- Durable fiber glass body ensures dimensional stability in industrial environments
- High-quality silica sand filler provides rapid arc quenching and limits high fault currents
- Engraved manufacturing date and catalog number for permanent identification
- Designed to minimize fault-related damage in sensitive branch circuits and small motors
