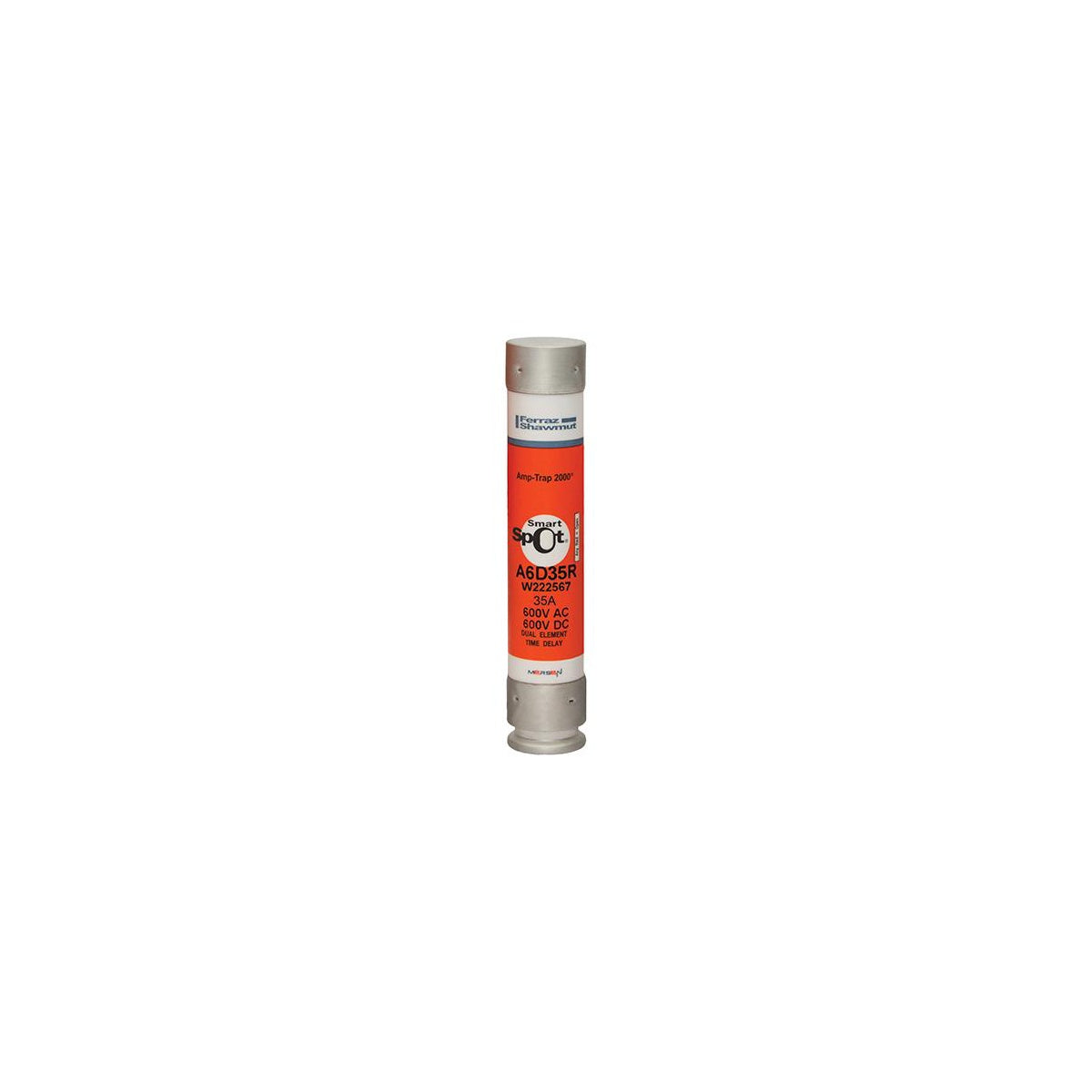

Fuse Amp-Trap 2000® 600V 35A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195155
Part: #A6D35R
UPC: 782001992002
Fuse Amp-Trap 2000® 600V 35A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195155
Part: #A6D35R
UPC: 782001992002
Description
Fuse Amp-Trap 2000® 600V 35A Time-Delay Class RK1 A6D Series Smart-Spot
The Amp-Trap 2000® SmartSpot time-delay fuse, model A6D-R, is designed to provide IEC Type 2 "no damage" protection for motors, transformers, branch circuits, and general-purpose electrical applications. This fuse offers reliable short circuit protection for motor starters, switches, and control panels while allowing for motor inrush currents. It is suitable for use by electrical distributors and switchgear suppliers looking for advanced wire and cable protection solutions.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A6D35R
- Fuse Class: Class RK1
- Amperage Rating: 35 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
- Diameter: 1.06 inches
- Weight: 0.34 lbs
- Connection Type: Ferrule
- Mounting Type: Clip
- Insulation Material: PolyTube
- UPC: 782001992002
Features
- IEC Type 2 "no damage" time-delay protection
- Fast operation under extreme fault conditions to prevent damage
- Time-delay feature accommodates motor inrush currents
- Compatible replacement for older 600V Class H, K, or RK5 fuses
- SmartSpot indicator for easy visual fuse status
