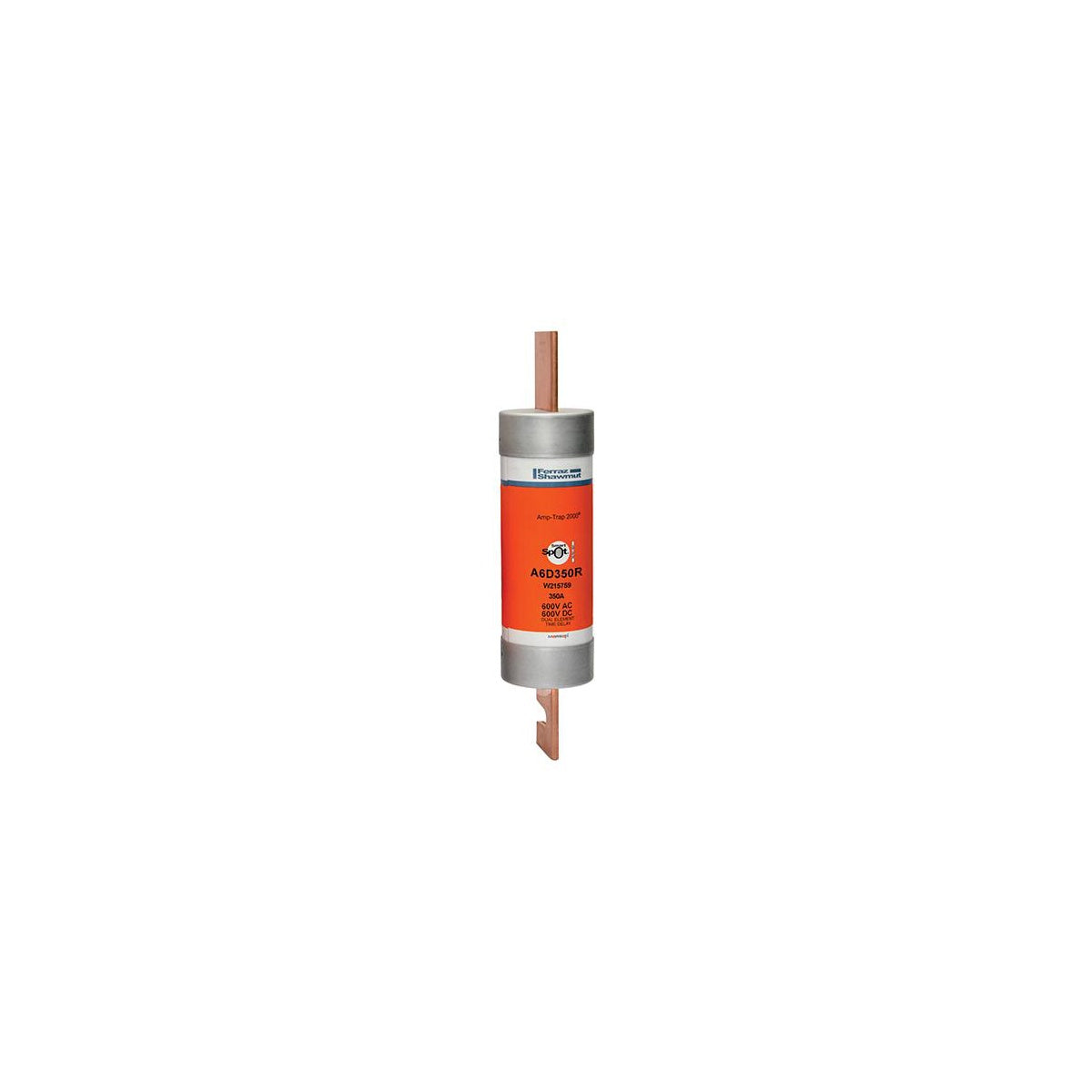

Fuse Amp-Trap 2000® 600V 350A Time-Delay Class RK1 A6D Series Smart-Spot

The Amp-Trap 2000® SmartSpot A6D-R fuse is designed to provide IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. It is suitable for both motor and non-motor loads in general-purpose electrical circuits. This time-delay fuse offers fast interruption under extreme fault conditions to protect motor starters, switches, and other circuit components, while allowing for motor inrush currents. It is compatible as a replacement for older 600V Class H, K, or RK5 fuses.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A6D350R
• Fuse Class: Class RK1
• Amperage Rating: 350 A
• Interrupt Rating: 200 kA
• Voltage Rating: 600 V
• Dimensions (L × W × H): 11.63 in × 2.56 in × 2.56 in
• Weight: 3.22 lbs
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: PolyTube
• Diameter: 2.56 inches

Features

• IEC Type 2 "no damage" time-delay protection
• Fast-acting under extreme fault conditions to prevent equipment damage
• Time-delay characteristic to accommodate motor inrush currents
• Compatible replacement for older 600V Class H, K, or RK5 fuses
• SmartSpot feature for easy visual indication of fuse status
• Robust PolyTube insulation for enhanced durability
