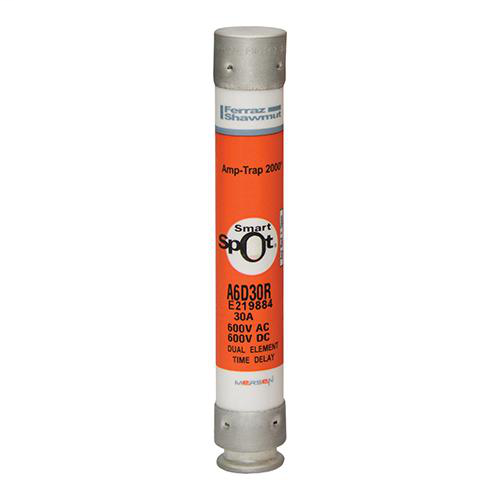

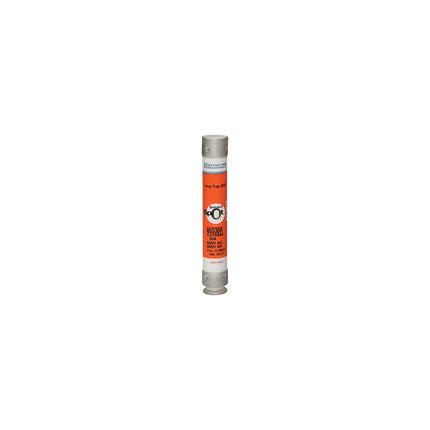

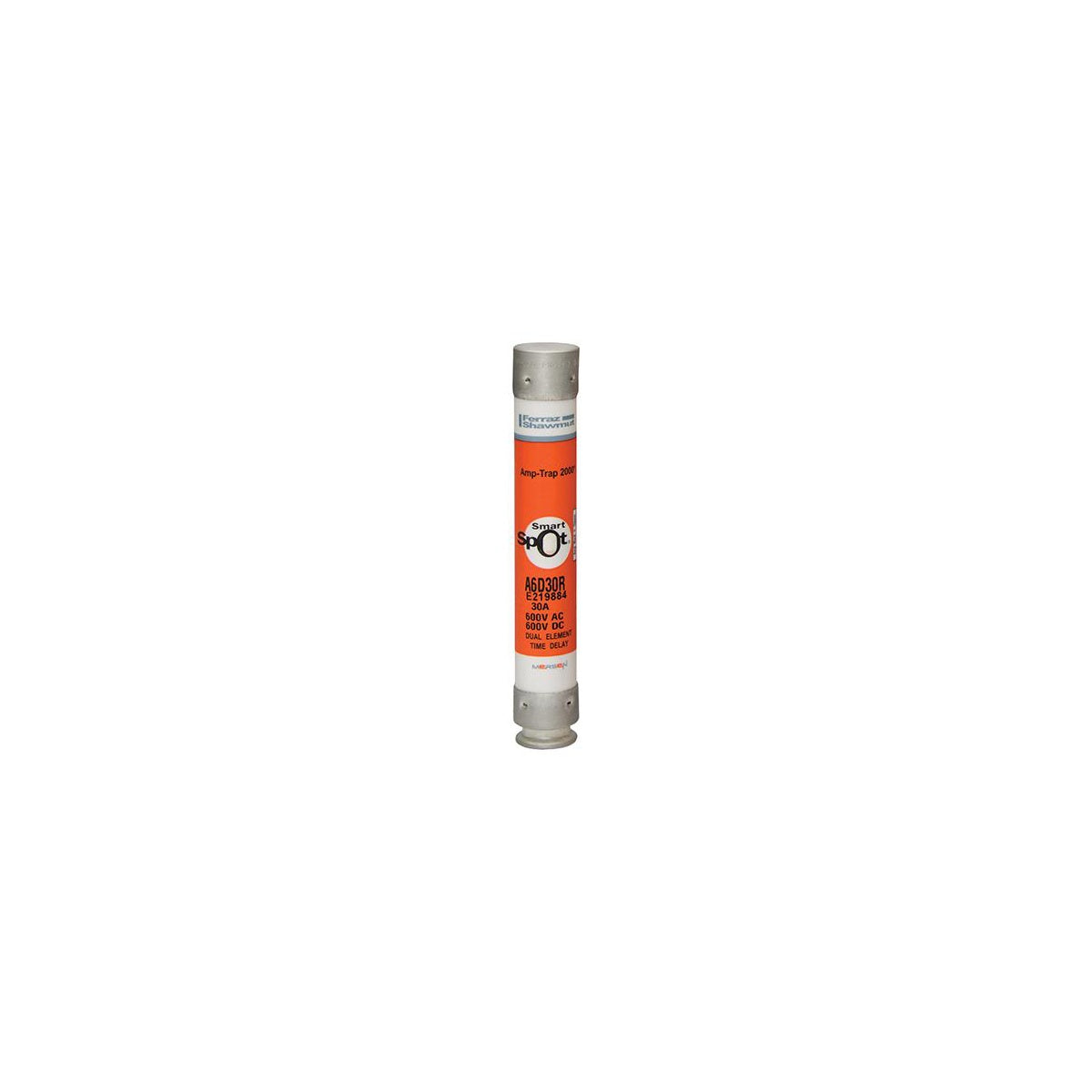

Fuse Amp-Trap 2000® 600V 30A Time-Delay Class RK1 A6D Series Smart-Spot

The Amp-Trap 2000® SmartSpot time-delay fuse A6D-R is designed to provide IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. It offers reliable short circuit protection for both motor and non-motor loads, suitable for general-purpose circuits. This fuse is engineered to open quickly under extreme fault conditions to protect motor starters, switches, and other circuit components, while allowing time-delay for motor in-rush currents. It is compatible as a replacement for older 600V Class H, K, or RK5 fuses.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A6D30R
• Fuse Class: Class RK1
• Amperage Rating: 30 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Dimensions (L x W x H): 5 in x 0.81 in x 0.81 in
• Diameter: 0.81 inches
• Product Weight: 0.1460 lbs
• Connection Type: Ferrule
• Mounting Type: Clip
• Insulation Material: PolyTube
• Application: Motors, Safety switches, Transformers, Branch circuit protection, Disconnects, Control panels, All general-purpose circuits

Features

• IEC Type 2 "no damage" time-delay fuse providing superior protection
• Fast acting under extreme fault conditions for maximum short circuit protection
• Time-delay feature accommodates motor in-rush currents
• SmartSpot indicator for easy blown fuse identification
• Compatible replacement for older 600V Class H, K, or RK5 fuses
• PolyTube insulation for enhanced durability and safety
