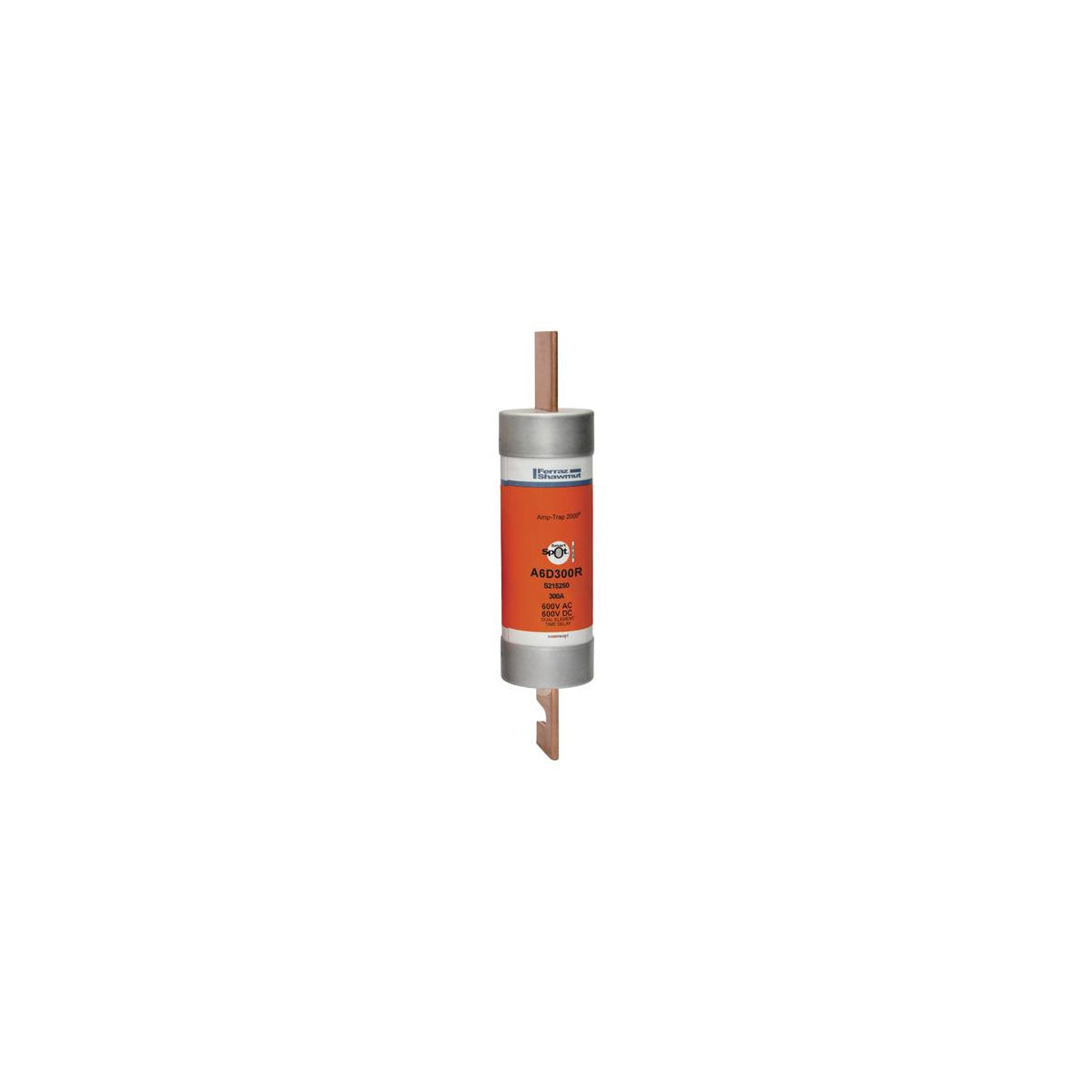

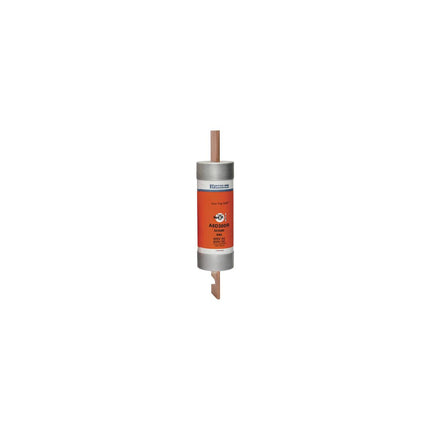

Fuse Amp-Trap 2000® 600V 300A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195127
Part: #A6D300R
UPC: 782001992231
Fuse Amp-Trap 2000® 600V 300A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195127
Part: #A6D300R
UPC: 782001992231
Description
Fuse Amp-Trap 2000® 600V 300A Time-Delay Class RK1 A6D Series Smart-Spot
The Fuse Amp-Trap 2000® A6D-R series provides IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. Designed for use in general-purpose circuits, this time-delay fuse offers fast interruption under extreme fault conditions to protect motor starters, switches, and other circuit components, while accommodating motor in-rush currents. It is suitable for replacement of older 600V Class H, K, or RK5 fuses in existing installations, making it a reliable choice for electrical distributors and switchgear suppliers.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A6D300R
- Fuse Class: Class RK1
- Amperage Rating: 300 A
- Interrupt Rating: 200 kA
- Voltage Rating: 600 V
- Dimensions (L x W x H): 11.63 in x 2.56 in x 2.56 in
- Diameter: 2.56 inches
- Mounting Type: Clip
- Connection Type: Blade
- Insulation Material: PolyTube
- Product Weight: 3.22 lbs
Features
- IEC Type 2 "no damage" protection for motors and branch circuits
- Time-delay design accommodates motor in-rush currents
- Fast acting under extreme fault conditions for maximum short circuit protection
- Compatible replacement for Class H, K, or RK5 fuses
- Smart-Spot indicator for easy fuse status verification
