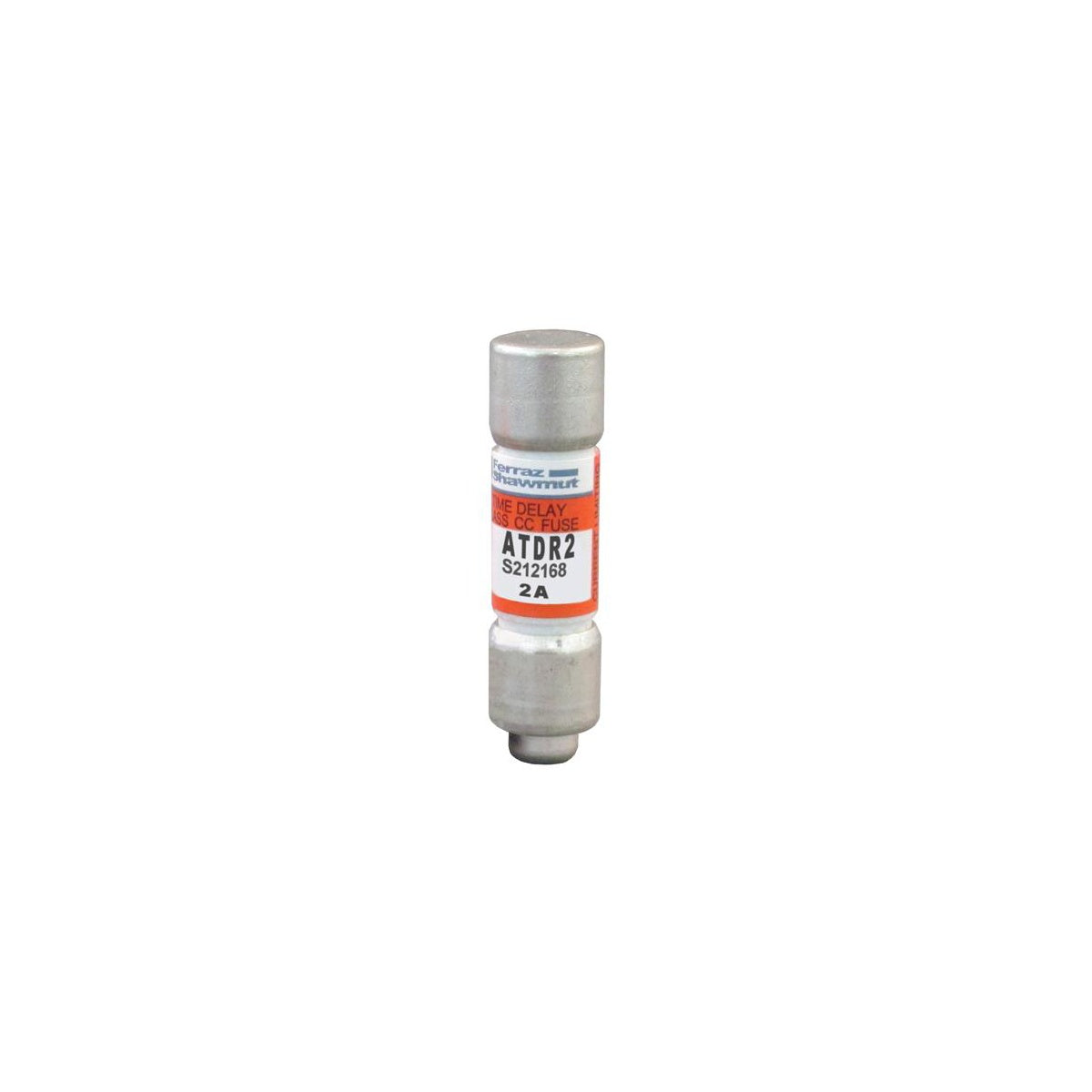

Fuse Amp-Trap 2000® 600V 2A Time-Delay Class CC ATDR Series

The Fuse Amp-Trap 2000® ATDR Series is a time-delay Class CC fuse designed for protection of small motors, contactors, lighting, heating, and general branch circuit loads. This fuse provides IEC Type 2 "no damage" protection to sensitive branch circuit components, minimizing fault-related damage. It is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable protection with excellent cycling ability for small motor loads.

Specifications

• Amperage Rating: 2 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Fuse Class: Class CC
• Mounting Type: Clip
• Connection: Ferrule
• Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
• Diameter: 0.41 inches
• Product Weight: 0.0170 lbs
• Insulation Material: GMG
• Manufacturer: Mersen
• Manufacturer Part #: ATDR2

Features

• Time-delay design accommodates motor starting currents without nuisance blowing
• Highly current limiting for low peak let-through currents
• Enhanced cycling capability for frequent motor starts and stops
• Visible orange label for quick identification and simplified replacement
• Durable fiber glass body ensures dimensional stability in industrial environments
• High-quality silica sand provides rapid arc extinction and limits high fault currents
• Engraved manufacturing date and catalog number for reliable identification
• Designed for branch circuit protection of lighting, heating, and general loads
