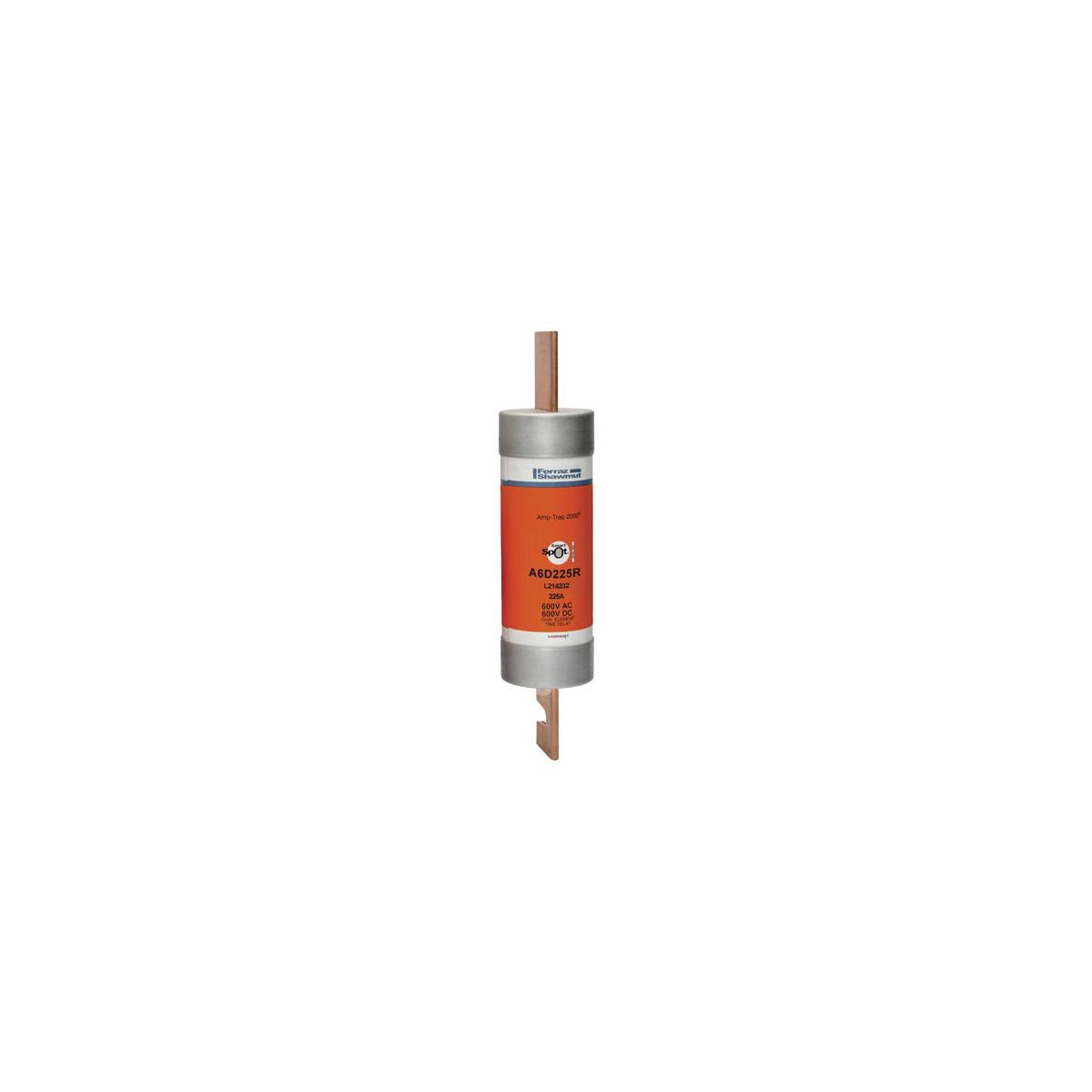

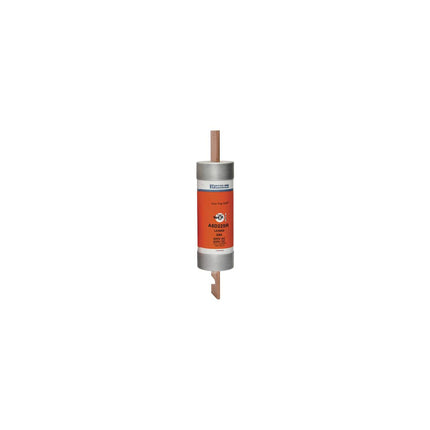

Fuse Amp-Trap 2000® 600V 225A Time-Delay Class RK1 A6D Series Smart-Spot

The Amp-Trap 2000® SmartSpot time-delay fuse is designed to provide IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. This Class RK1 fuse offers reliable short circuit protection while allowing the necessary time-delay for motor in-rush currents, making it suitable for both motor and non-motor load circuits. It is compatible with existing 600V Class H, K, or RK5 fuse installations and supports general-purpose electrical circuits. This product is ideal for electrical distributors and switchgear suppliers seeking dependable fuse solutions.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A6D225R
• Fuse Class: Class RK1
• Amperage Rating: 225 A
• Interrupt Rating: 200 kA
• Voltage Rating: 600 V
• Dimensions (L x W x H): 11.63 in x 2.56 in x 2.56 in
• Diameter: 2.56 inches
• Weight: 3.22 lbs
• Connection Type: Blade
• Mounting Type: Clip
• Insulation Material: PolyTube
• UPC: 782001992217

Features

• IEC Type 2 "no damage" time-delay protection
• Fast opening under extreme fault conditions to protect motor starters and switches
• Compatible replacement for older 600V Class H, K, or RK5 fuses
• SmartSpot indicator for easy fuse status identification
• Provides maximum short circuit protection while accommodating motor in-rush currents
