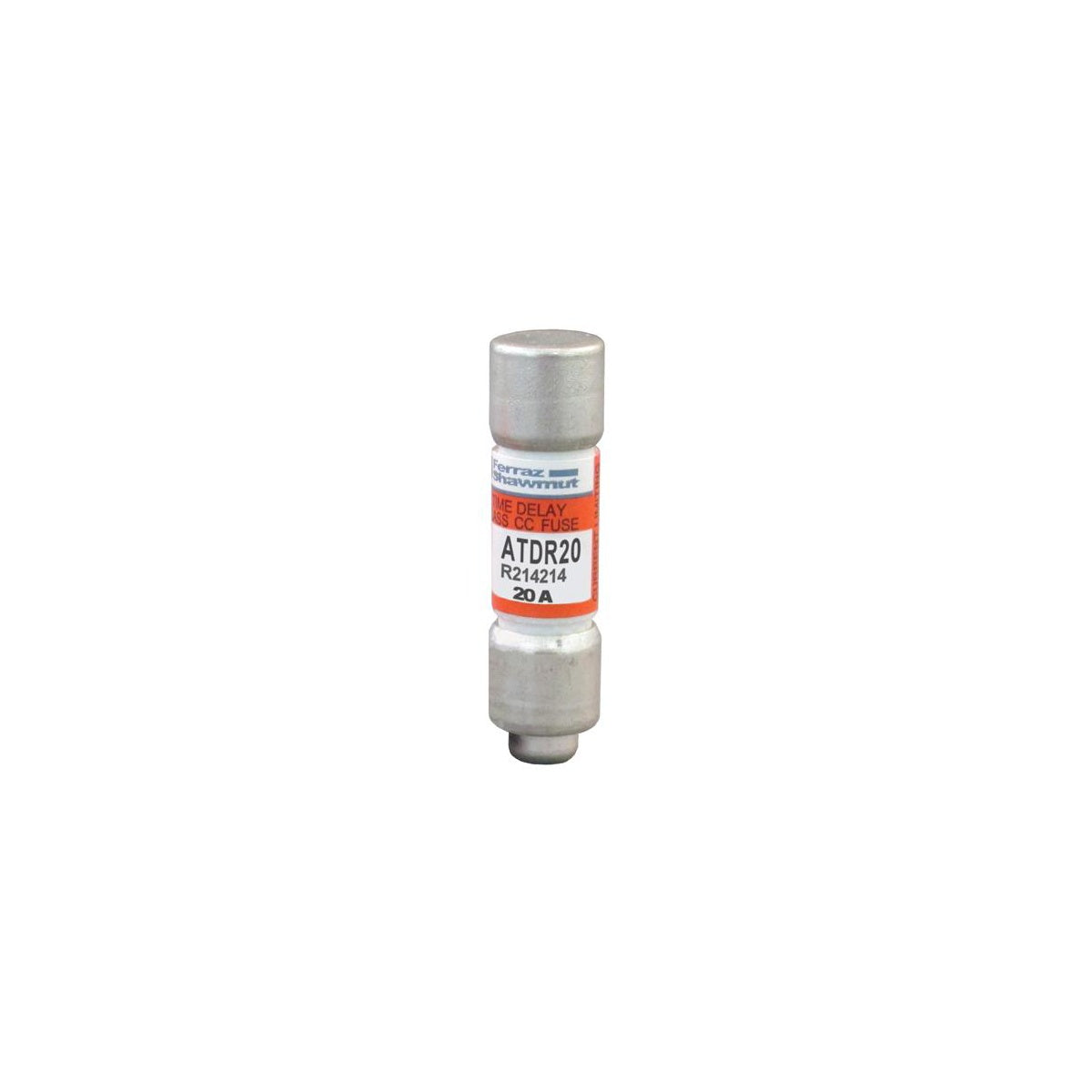

Fuse Amp-Trap 2000® 600V 20A Time-Delay Class CC ATDR Series
SKU: #195581
Part: #ATDR20
UPC: 782001908683
Fuse Amp-Trap 2000® 600V 20A Time-Delay Class CC ATDR Series
SKU: #195581
Part: #ATDR20
UPC: 782001908683
Description
Fuse Amp-Trap 2000® 600V 20A Time-Delay Class CC ATDR Series Fuse
The Fuse Amp-Trap 2000® ATDR Series is a time-delay Class CC fuse designed to provide IEC Type 2 "no damage" protection for small motors, contactors, lighting, heating, and general loads. It is optimized for branch circuit protection, minimizing the risk of fault-related damage to sensitive electrical components. This fuse is suitable for electrical distributors and lighting solutions requiring reliable protection with excellent cycling ability for small motor loads.
Specifications
- Amperage Rating: 20 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Fuse Class: Class CC
- Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part #: ATDR20
Features
- IEC Type 2 "no damage" protection for sensitive branch circuit components
- Time-delay characteristics optimized for small motor loads
- Excellent cycling ability to withstand motor starting currents
- Compact small-dimension design for space-saving installation
- Reliable branch circuit protection for lighting, heating, and general loads
