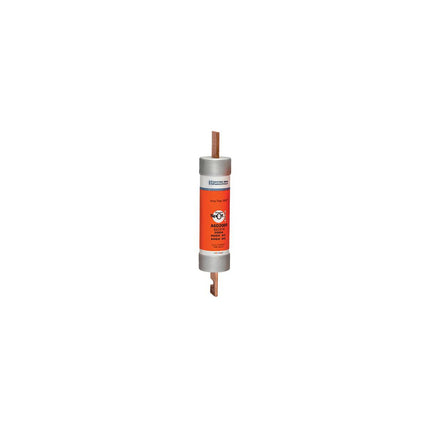

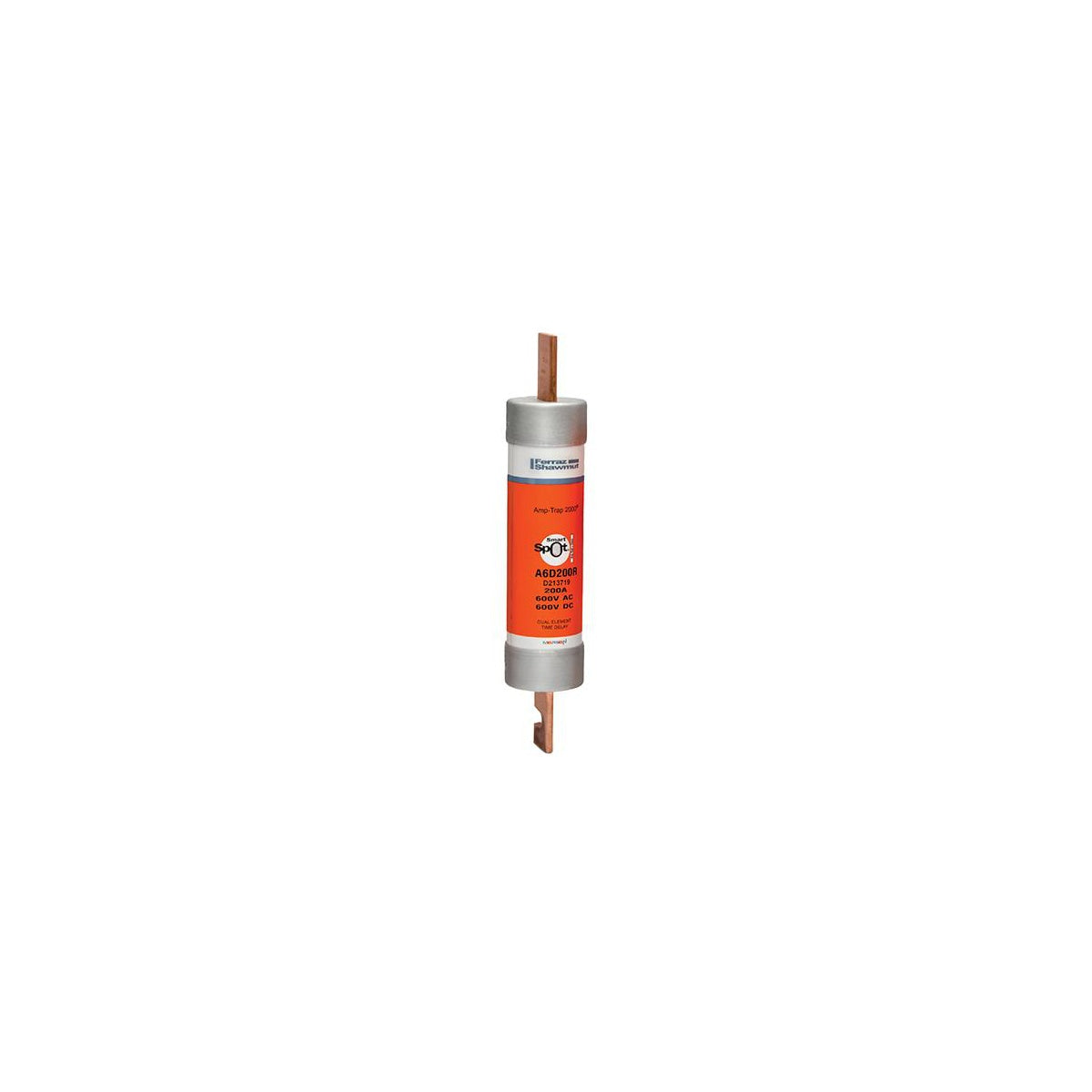

Fuse Amp-Trap 2000® 600V 200A Time-Delay Class RK1 A6D Series Smart-Spot

The Fuse Amp-Trap 2000® A6D-R series provides IEC Type 2 "no damage" protection with time-delay characteristics for motors, transformers, branch circuit protection, disconnects, and control panels. Designed for electrical distributors and switchgear suppliers, these fuses offer reliable short circuit protection while accommodating motor in-rush currents. They are suitable for general-purpose circuits and can replace older 600V Class H, K, or RK5 fuses in existing installations.

Specifications

• Amperage Rating: 200 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Fuse Class: Class RK1
• Dimensions (L x W x H): 9.63 in x 1.81 in x 1.81 in
• Diameter: 1.81 inches
• Connection Type: Blade
• Mounting Type: Clip
• Product Weight: 1.46 lbs
• Insulation Material: PolyTube
• Manufacturer Part Number: A6D200R

Features

• IEC Type 2 "no damage" time-delay protection for motor and non-motor loads
• Fast opening under extreme fault conditions to protect motor starters, switches, and circuit components
• Time-delay design to allow motor in-rush currents without nuisance blowing
• Compatible replacement for older Class H, K, or RK5 fuses
• Smart-Spot indicator for easy fuse status identification
