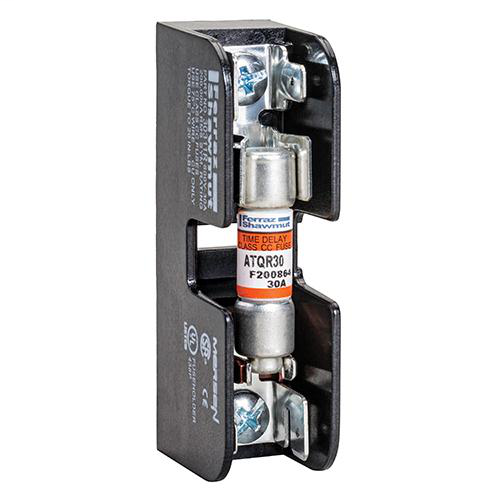

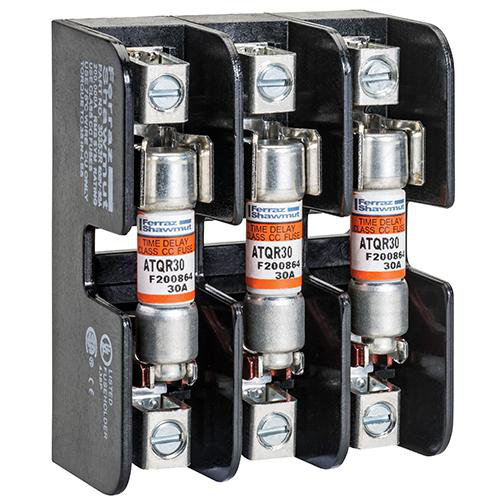

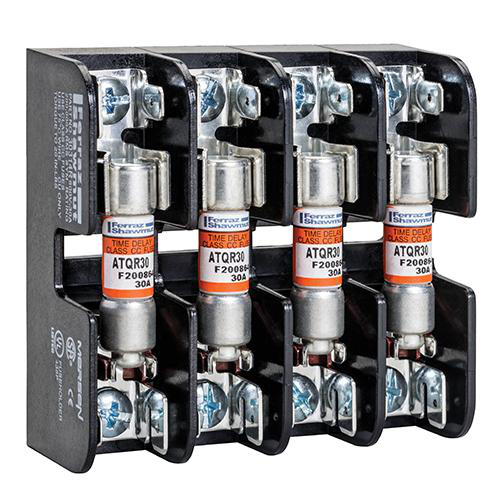

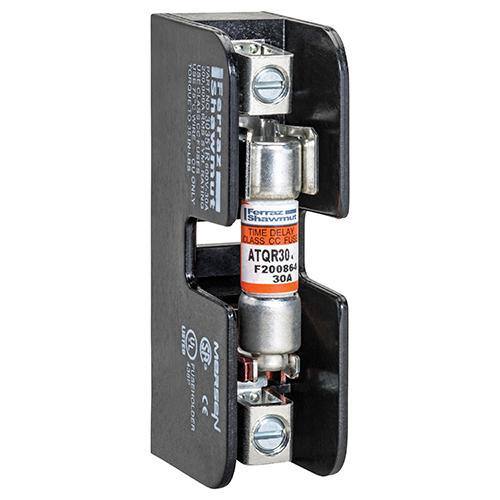

Fuse Amp-Trap 2000® 600V 2.5A Time-Delay Class CC ATQR Series

The Fuse Amp-Trap 2000® ATQR Series is a Class CC time-delay fuse designed for protection of branch circuits in electrical distribution systems. It is specifically engineered for use with control transformers, solenoids, inductive loads, as well as lighting, heating, and general-purpose loads. This fuse is suitable for electrical distributors and switchgear suppliers seeking reliable wire and cable protection solutions with high interrupting capacity.

Specifications

• Voltage Rating: 600 V
• Amperage Rating: 2.5 A
• Fuse Class: Class CC
• Interrupt Rating: 200 kA
• Frequency: 50 hertz
• Dimensions: Length 1.50 in, Width 0.41 in, Height 0.41 in, Diameter 0.41 in
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0170 lb
• Manufacturer: Mersen
• Manufacturer Part Number: ATQR2-1/2

Features

• Time-delay characteristics optimized for high inrush currents typical of control transformers and inductive loads
• Small dimension design enabling space-efficient installation
• Provides superior protection for branch circuits in electrical distribution systems
• Clip mounting allows quick and secure installation
