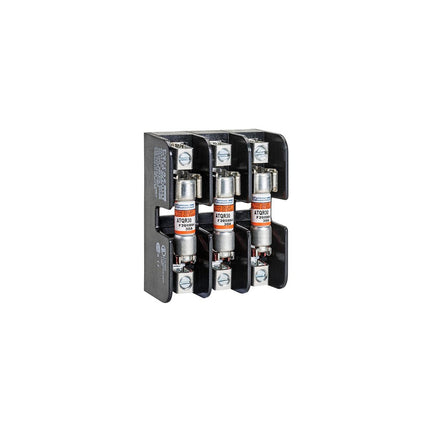

Fuse Amp-Trap 2000® 600V 1A Time-Delay Class CC ATQR Series
SKU: #195839
Part: #ATQR1
UPC: 782001906375
Fuse Amp-Trap 2000® 600V 1A Time-Delay Class CC ATQR Series
SKU: #195839
Part: #ATQR1
UPC: 782001906375
Description
Fuse Amp-Trap 2000® 600V 1A Time-Delay Class CC ATQR Series
The Mersen Amp-Trap 2000 ATQR fuse is a small-dimension, time-delay fuse designed for protection of branch circuits in electrical distribution systems. It is specifically suited for control transformers, solenoids, inductive loads, as well as lighting, heating, and general-purpose loads. This fuse is ideal for electrical distributors and switchgear suppliers requiring reliable protection with time-delay characteristics to handle high inrush currents.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: ATQR1
- Voltage Rating: 600 V
- Amperage Rating: 1 A
- Interrupt Rating: 200 kA
- Fuse Class: Class CC
- Frequency: 50 hertz
- Dimensions (L x W x H): 1.50 in x 0.41 in x 0.41 in
- Diameter: 0.41 inches
- Weight: 0.0170 lbs
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
Features
- Time-delay characteristics suitable for high inrush currents
- Compact size for small-dimension applications
- Provides superior protection for branch circuits in electrical distribution systems
- Designed for control transformers, solenoids, inductive, lighting, heating, and general-purpose loads
