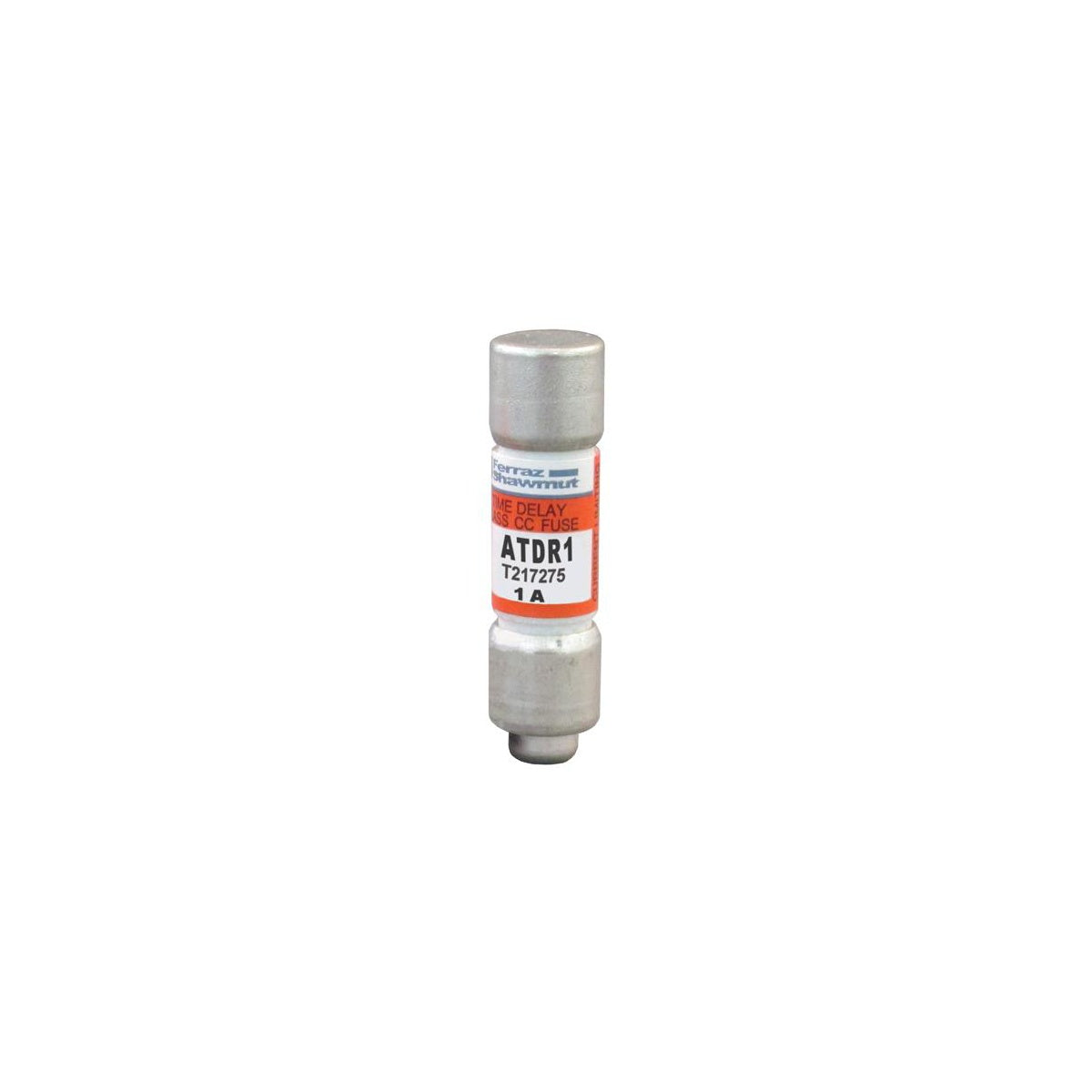

Fuse Amp-Trap 2000® 600V 1A Time-Delay Class CC ATDR Series

The Fuse Amp-Trap 2000® 600V 1A Time-Delay Class CC ATDR Series is designed for reliable protection of small motors, contactors, lighting, heating, and general loads. This fuse provides IEC Type 2 "no damage" protection for sensitive branch circuit components, minimizing fault-related damage. It is suitable for branch circuit protection in industrial electrical distribution and lighting solutions, offering excellent cycling ability for small motor loads.

Specifications

• Amperage Rating: 1 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Fuse Class: Class CC
• Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
• Diameter: 0.41 inches
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0170 lbs
• Manufacturer Part #: ATDR1
• Manufacturer: Mersen

Features

• Time-delay design suitable for motor starting currents without nuisance blowing
• High current limiting capability reduces peak let-through current
• Enhanced cycling endurance for frequent motor starts and stops
• Keyed design to prevent replacement errors when used with recommended fuse holders
• Visible orange label for quick identification and simplified replacement
• Durable markings including manufacturing date and catalog number for traceability
• Fiberglass body ensures dimensional stability in harsh industrial environments
• High-quality silica sand filler for rapid arc extinction and fault current limitation
