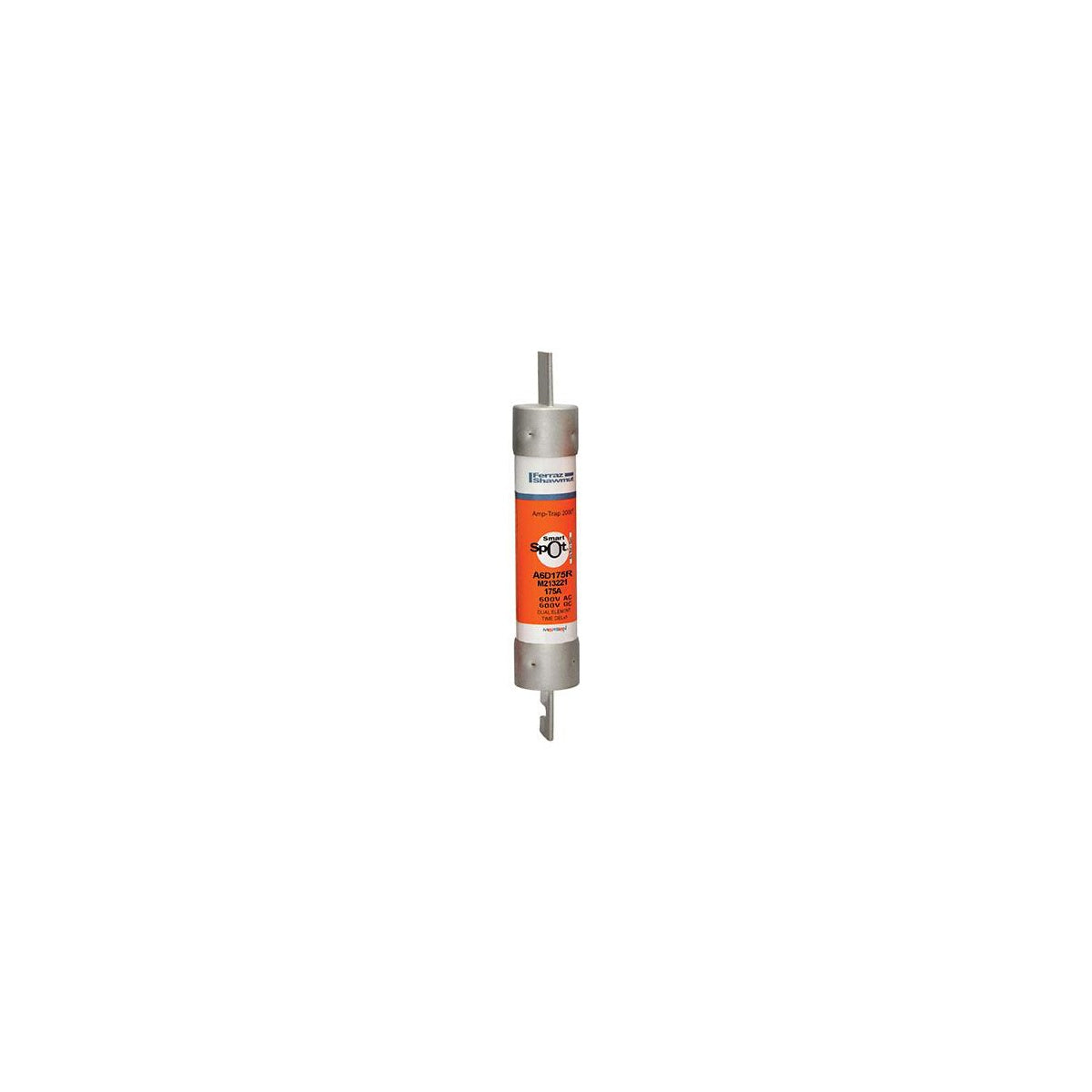

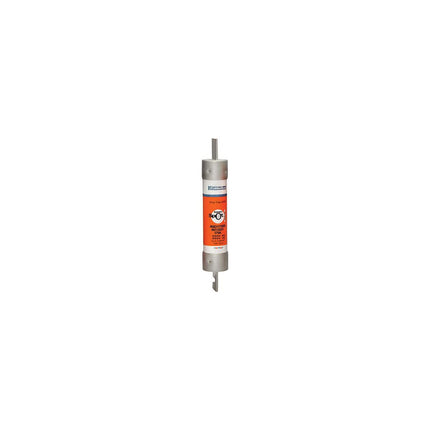

Fuse Amp-Trap 2000® 600V 175A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195110
Part: #A6D175R
UPC: 782001992170
Fuse Amp-Trap 2000® 600V 175A Time-Delay Class RK1 A6D Series Smart-Spot
SKU: #195110
Part: #A6D175R
UPC: 782001992170
Description
Fuse Amp-Trap 2000® 600V 175A Time-Delay Class RK1 A6D Series Smart-Spot
The Amp-Trap 2000® SmartSpot time-delay fuse provides reliable electrical protection for motors, transformers, branch circuits, and control panels. Designed for use in general-purpose circuits, this fuse offers IEC Type 2 "no damage" protection, making it suitable for motor and non-motor load applications. It ensures fast interruption under extreme fault conditions to safeguard motor starters, switches, and other circuit components, while allowing time-delay for motor in-rush currents. This fuse is compatible as a direct replacement for older 600V Class H, K, or RK5 fuses, supporting electrical distributors and switchgear suppliers with efficient wire and cable protection solutions.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A6D175R
- Fuse Class: Class RK1
- Amperage Rating: 175 A
- Interrupt Rating: 200 kA
- Voltage Rating: 600 V
- Dimensions (L x W x H): 9.63 in x 1.81 in x 1.81 in
- Diameter: 1.81 inches
- Weight: 1.46 lbs
- Mounting Type: Clip
- Connection Type: Blade
- Insulation Material: PolyTube
- Application: Motors, Safety switches, Transformers, Branch circuit protection, Disconnects, Control panels, All general-purpose circuits
Features
- IEC Type 2 "no damage" protection for mains, feeders, and branch circuits
- Time-delay design allows motor in-rush current without nuisance blowing
- Fast-acting under extreme fault conditions for maximum short circuit protection
- SmartSpot indicator for easy fuse status identification
- Direct replacement for older 600V Class H, K, or RK5 fuses
- PolyTube insulation enhances safety and durability
