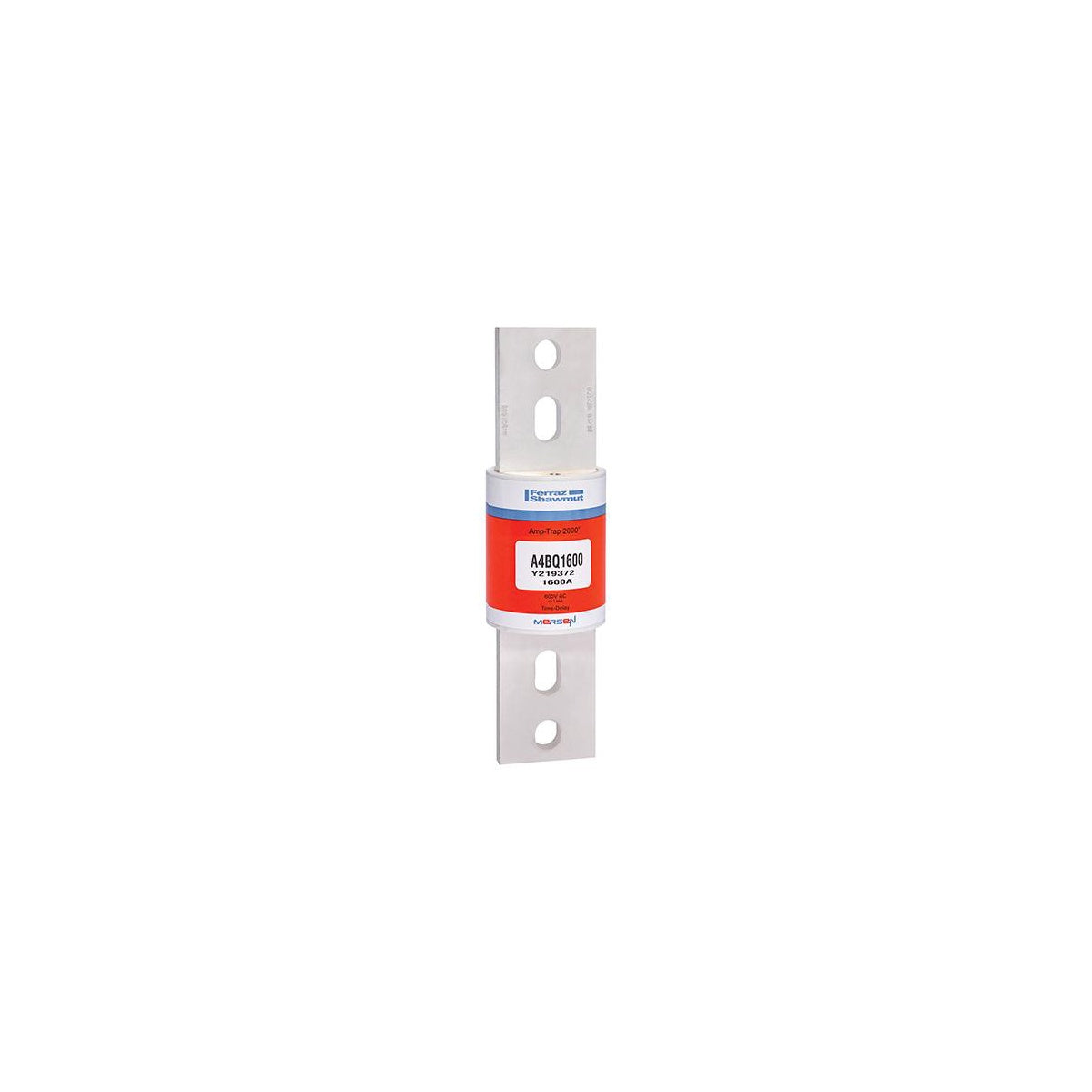

Fuse Amp-Trap 2000® 600V 1600A Time-Delay Class L A4BQ Series

The Amp-Trap 2000® A4BQ fuse is a Class L time-delay fuse designed for high-performance electrical protection in mains, feeders, large motors, lighting, heating, and general loads. It is suitable for use as circuit breaker back-up and in DC-rated applications such as UPS DC links and battery disconnects. This fuse offers superior current-limiting capabilities, providing enhanced protection for service entrance equipment and downstream circuit components by minimizing short circuit let-thru current.

Specifications

• Voltage Rating: 600 VAC, 500 VDC
• Amperage Rating: 1600 A
• Interrupt Rating: 200 kA
• Fuse Class: Class L
• Connection Type: Blade
• Mounting Type: Bolted
• Dimensions (L x W x H): 10.75 in x 3 in x 3 in
• Diameter: 3 inches
• Product Weight: 5.97 lbs
• Insulation Material: GMG
• Manufacturer Part Number: A4BQ1600

Features

• 20% more current-limiting than other Class L fuses, reducing let-thru current and energy
• 4-second built-in time-delay at 500% of rated current to accommodate harmless inrush currents without nuisance opening
• Fastest operation under short circuit conditions with up to 40% lower clearing I2t than comparable fuses
• Self-certified 300kA interrupting rating with UL witnessed tests
• Pure silver links for lowest let-thru current and extended fuse life
• Recommended for Arc Flash energy reduction
• Easy 2-to-1 selectivity to prevent nuisance shutdowns and blackouts
• Rejection-style design to prevent replacement errors
• High-visibility orange label for instant brand recognition
• Metal-embossed date and catalog number for traceability
• Fiberglass body ensures dimensional stability in harsh industrial environments
• High-grade silica filler for fast arc quenching
