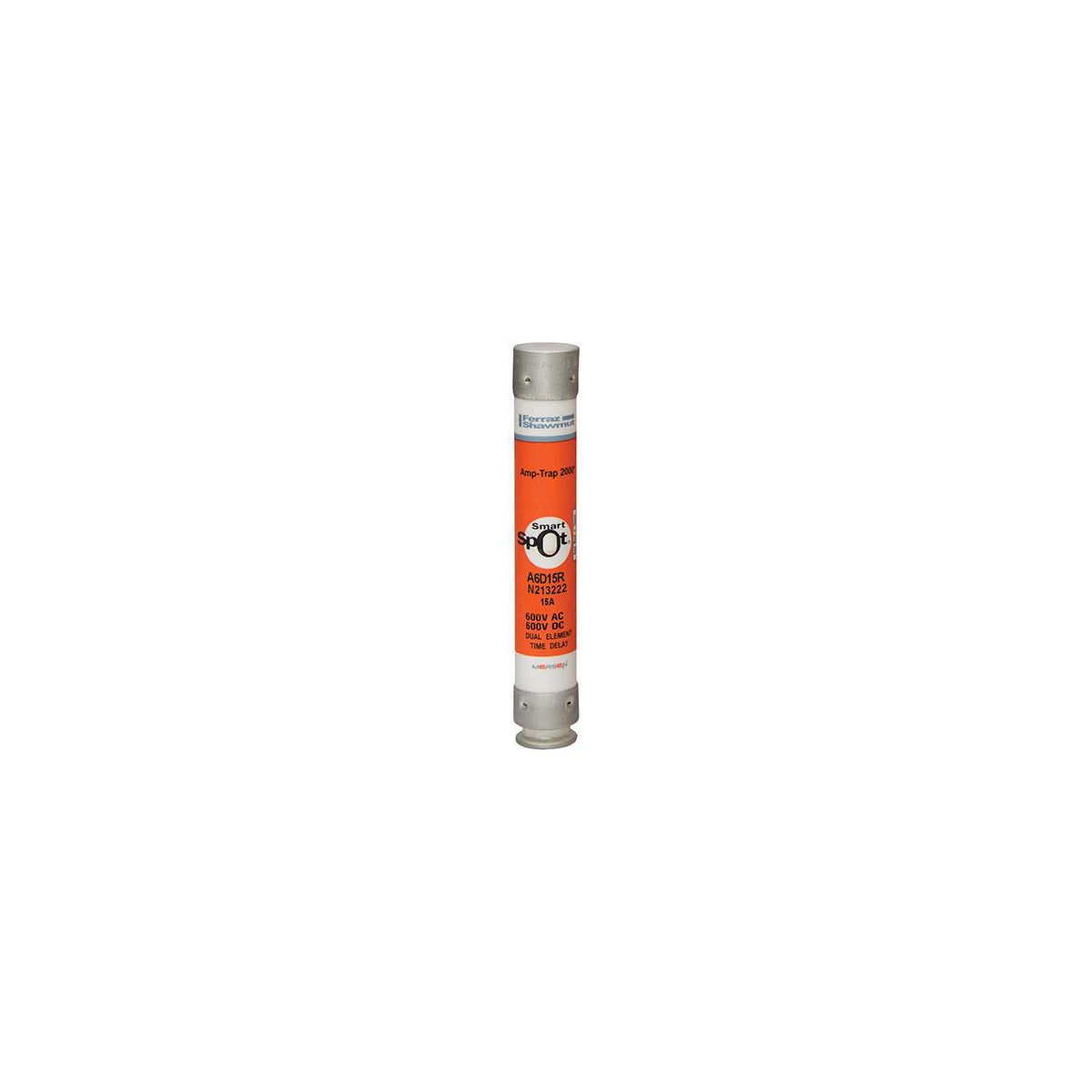

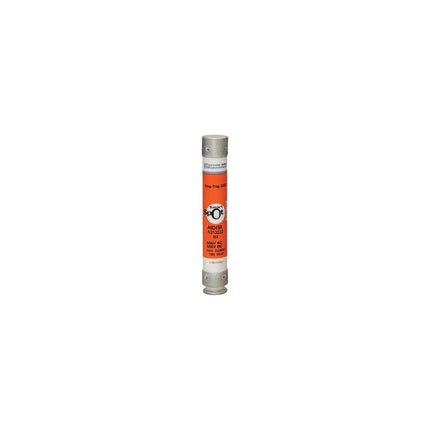

Fuse Amp-Trap 2000® 600V 15A Time-Delay Class RK1 A6D Series Smart-Spot

The Fuse Amp-Trap 2000® A6D-R series is designed for providing IEC Type 2 "no damage" protection in electrical distribution systems. It serves applications including motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. This fuse is suitable for general-purpose circuits requiring reliable time-delay protection, making it ideal for motor and non-motor loads in lighting solutions, wire and cable systems, and switchgear supplied by electrical distributors.

Specifications

• Amperage Rating: 15 A
• Voltage Rating: 600 V AC/DC
• Interrupt Rating: 200 kA
• Fuse Class: Class RK1
• Dimensions: Length 5 in, Diameter 0.81 in, Width 0.81 in, Height 0.81 in
• Mounting Type: Clip
• Connection: Ferrule
• Product Weight: 0.1460 lbs
• Insulation Material: PolyTube
• Manufacturer: Mersen
• Manufacturer Part Number: A6D15R

Features

• IEC Type 2 "no damage" protection to mains, feeders, and branch circuits
• Fast opening under extreme fault conditions for maximum short circuit protection
• Time-delay characteristic to accommodate motor in-rush currents
• Compatible replacement for older 600V Class H, K, or RK5 fuses
• Smart-Spot indicator for easy fuse status identification
