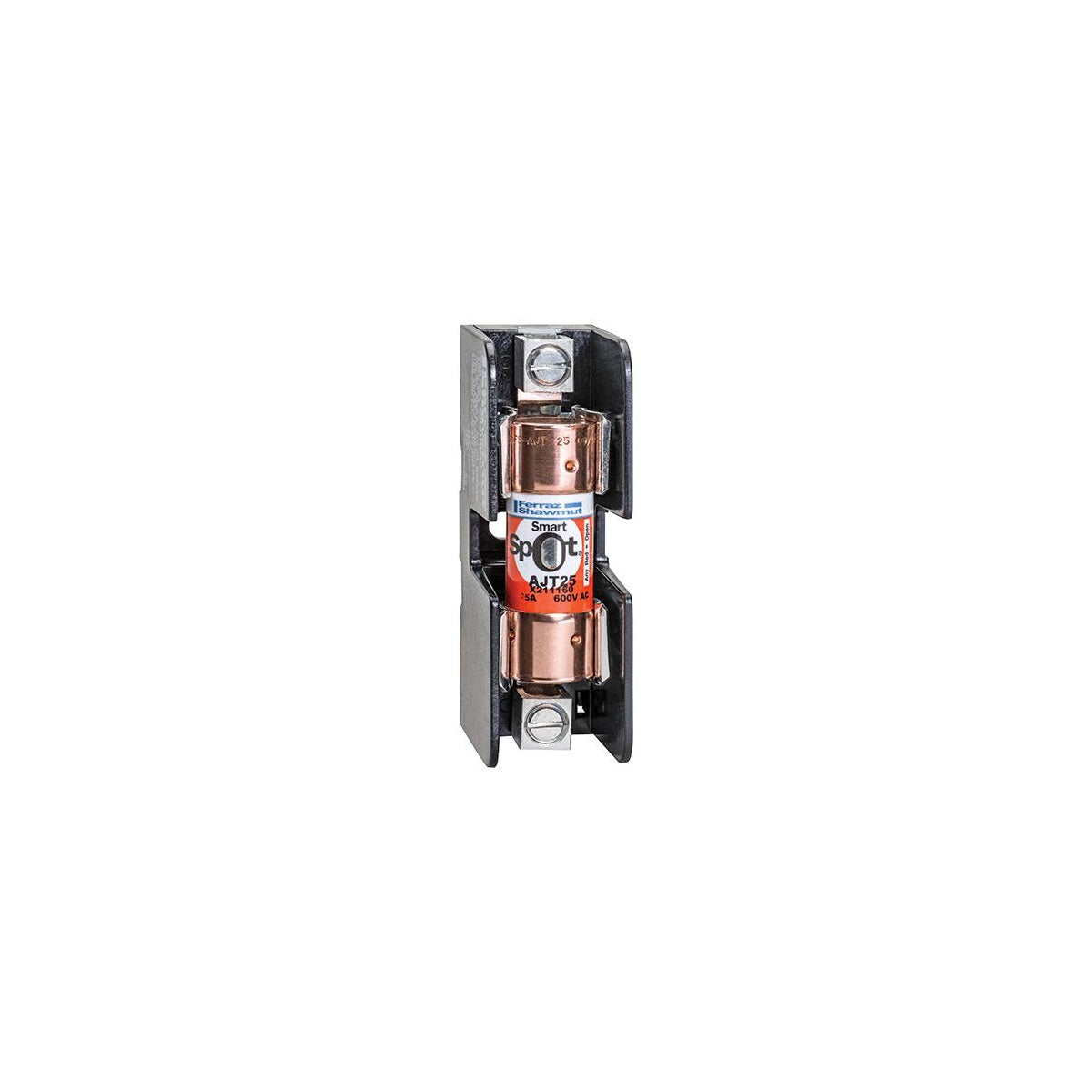

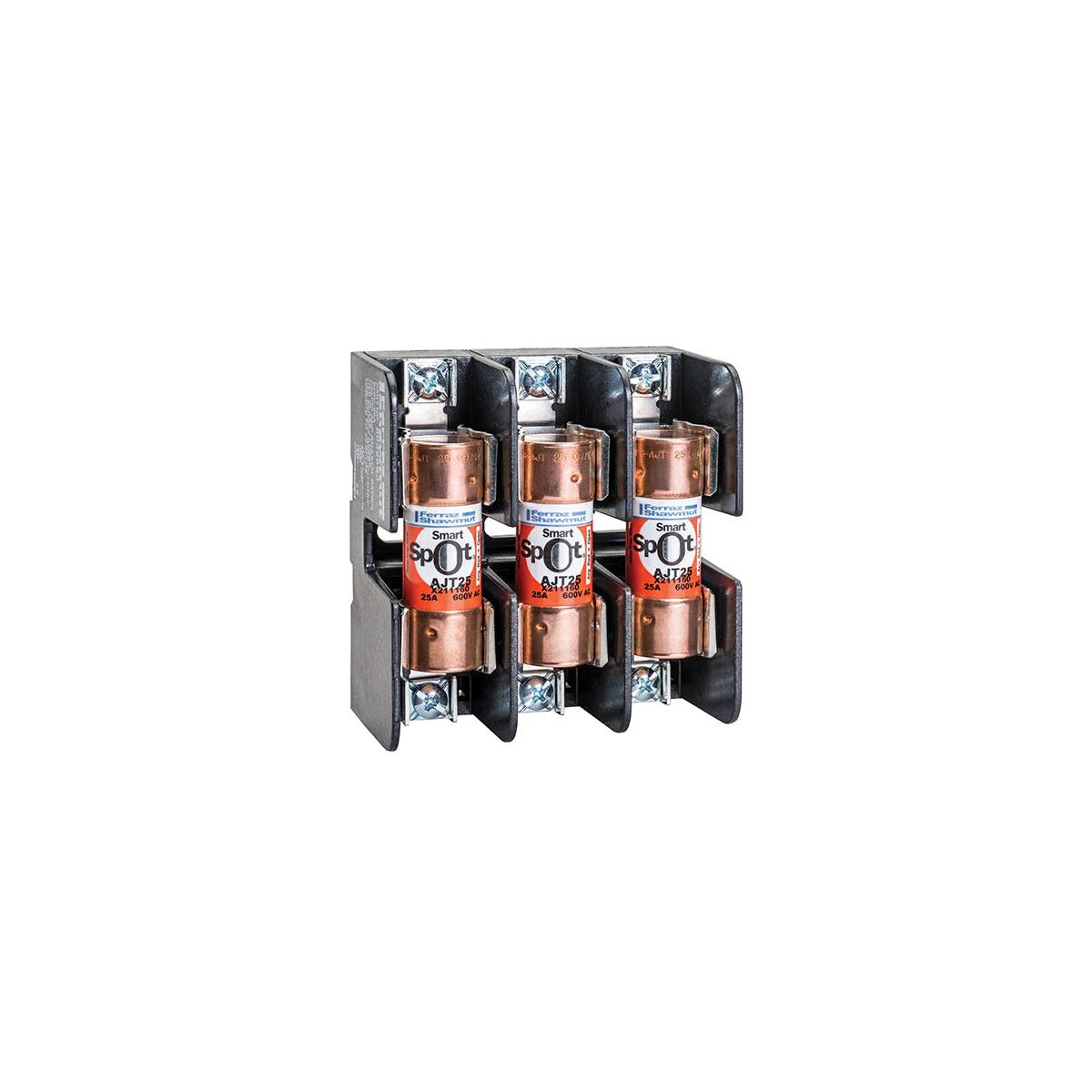

Fuse Amp-Trap 2000® 600V 15A Time-Delay Class J AJT Series Smart-Spot

The Amp-Trap 2000® AJT fuse is a Class J time-delay fuse designed for protection of motor circuits, mains feeders, branch circuits, lighting, heating, general loads, transformers, control panels, circuit breaker back-up, bus ducts, and load centers. This fuse features advanced material technology providing IEC Type 2 no-damage protection with superior current-limiting capabilities, ideal for electrical distributors and lighting solutions requiring compact and reliable wire and cable protection. The SmartSpot visual open fuse indicator enhances maintenance efficiency, while the compact size requires only half the mounting space of typical 600VAC Class RK fuses.

Specifications

• Amperage Rating: 15 A
• Voltage Rating: 600 V AC
• Fuse Class: Class J
• Interrupt Rating: 200 kA
• Frequency: 50 hertz
• Dimensions (L×W×H): 2.25 in × 0.81 in × 0.81 in
• Diameter: 0.81 inches
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0970 lbs
• Manufacturer Part Number: AJT15
• Manufacturer: Mersen

Features

• SmartSpot visual open fuse indicator for quick status verification
• Time-delay characteristics suitable for motor and transformer inrush currents
• IEC Type 2 no-damage protection for main, feeder, and branch circuits
• Compact size requiring half the mounting space compared to 600VAC Class RK fuses
• Superior current-limiting ability to reduce peak currents and protect downstream equipment
• Clip mounting for easy installation
• Orange label for rapid identification
• Durable fiber glass body ensuring dimensional stability in industrial environments
