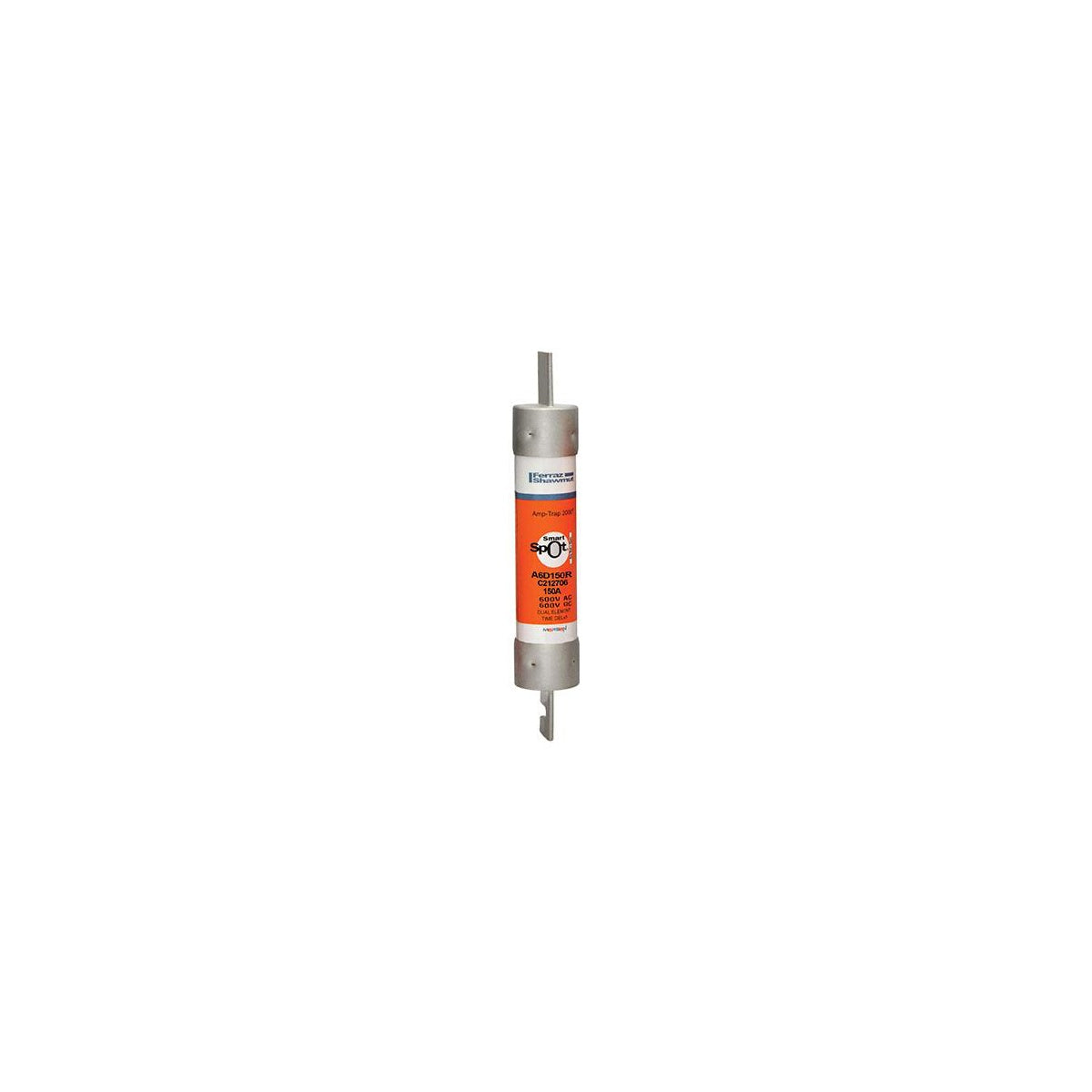

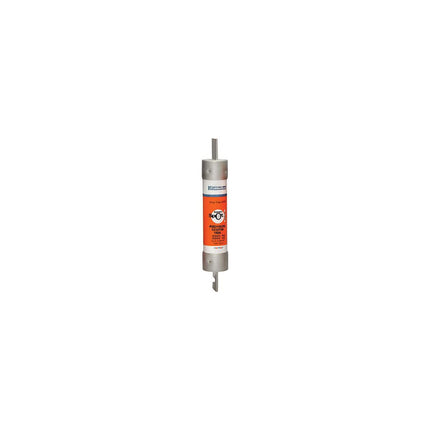

Fuse Amp-Trap 2000® 600V 150A Time-Delay Class RK1 A6D Series Smart-Spot

The Fuse Amp-Trap 2000® A6D Series Smart-Spot is a time-delay Class RK1 fuse designed for protection in motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. It provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving both motor and non-motor loads. This fuse is suitable for electrical distributors and switchgear suppliers requiring reliable short circuit protection and coordination with motor in-rush currents. It replaces older 600V Class H, K, or RK5 fuses in existing installations.

Specifications

• Amperage Rating: 150 A
• Voltage Rating: 600 V
• Fuse Class: Class RK1
• Interrupt Rating: 200 kA
• Dimensions (L × W × H): 9.63 in × 1.81 in × 1.81 in
• Diameter: 1.81 inches
• Mounting Type: Clip
• Connection: Blade
• Insulation Material: PolyTube
• Product Weight: 1.46 lbs
• Manufacturer Part Number: A6D150R

Features

• IEC Type 2 "no damage" protection to prevent damage to motor starters, switches, and circuit components
• Time-delay design accommodates motor in-rush currents
• Fast interruption under extreme fault conditions for maximum short circuit protection
• Smart-Spot indicator for easy fuse status identification
• Compatible replacement for older 600V Class H, K, or RK5 fuses
