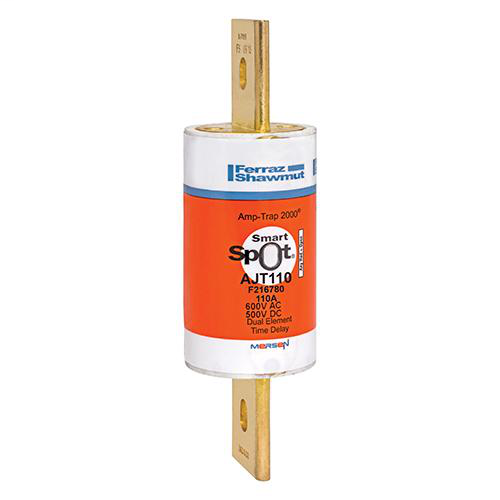

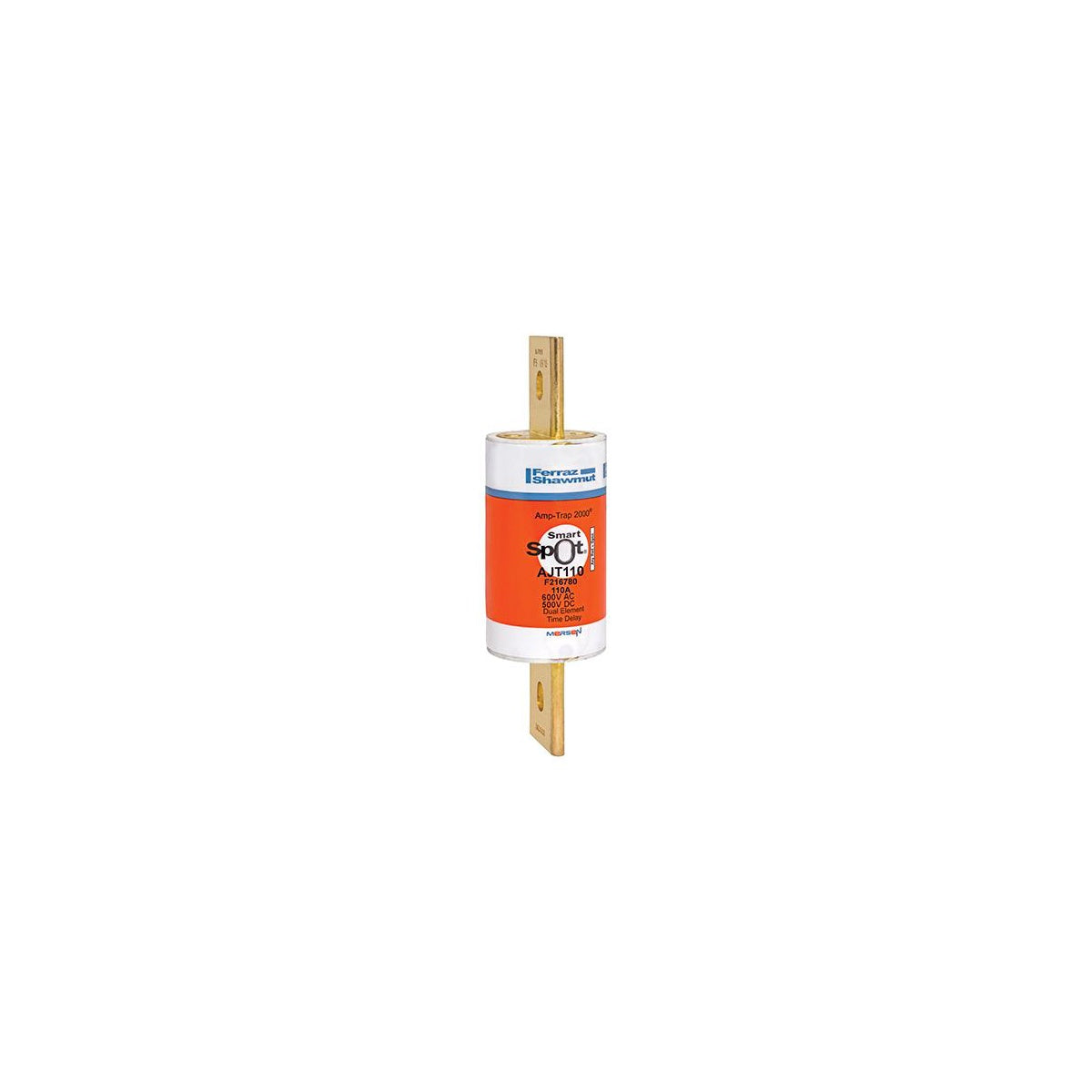

Fuse Amp-Trap 2000® 600V 110A Time-Delay Class J AJT Series Smart-Spot
SKU: #195426
Part: #AJT110
UPC: 782001962630
Fuse Amp-Trap 2000® 600V 110A Time-Delay Class J AJT Series Smart-Spot
SKU: #195426
Part: #AJT110
UPC: 782001962630
Description
Fuse Amp-Trap 2000® 600V 110A Time-Delay Class J AJT Series Smart-Spot
The Amp-Trap 2000® AJT fuse by Mersen is designed for motor circuits, mains feeders, branch circuits, lighting, heating, general loads, transformers, control panels, circuit breaker backup, bus duct, and load centers. This time-delay Class J fuse offers IEC Type 2 no damage protection with advanced material technology, providing superior current-limiting ability while requiring only half the mounting space of 600VAC Class RK fuses. Its SmartSpot visual open fuse indicator enhances operational visibility, making it suitable for electrical distributors and switchgear suppliers seeking compact and reliable fuse solutions.
Specifications
- Amperage Rating: 110 A
- Voltage Rating: 600 V AC
- Frequency: 50 hertz
- Interrupt Rating: 200 kA
- Fuse Class: Class J
- Mounting Type: Bolted
- Connection: Blade
- Dimensions (L x W x H): 5.75 in x 1.62 in x 1.62 in
- Diameter: 1.62 inches
- Product Weight: 0.7640 lbs
- Insulation Material: GMG
- Manufacturer Part #: AJT110
Features
- Non-indicating or SmartSpot visual open fuse indicator options
- Time-delay characteristics ideal for motor and transformer inrush currents
- IEC Type 2 no damage protection for main, feeder, and branch circuits
- Compact size reduces mounting space by half compared to 600VAC Class RK fuses
- Superior current-limiting ability to reduce peak currents
- Orange label for quick identification
- Durable fiber glass body for dimensional stability in industrial environments
- High-quality silica sand ensures rapid arc extinction
