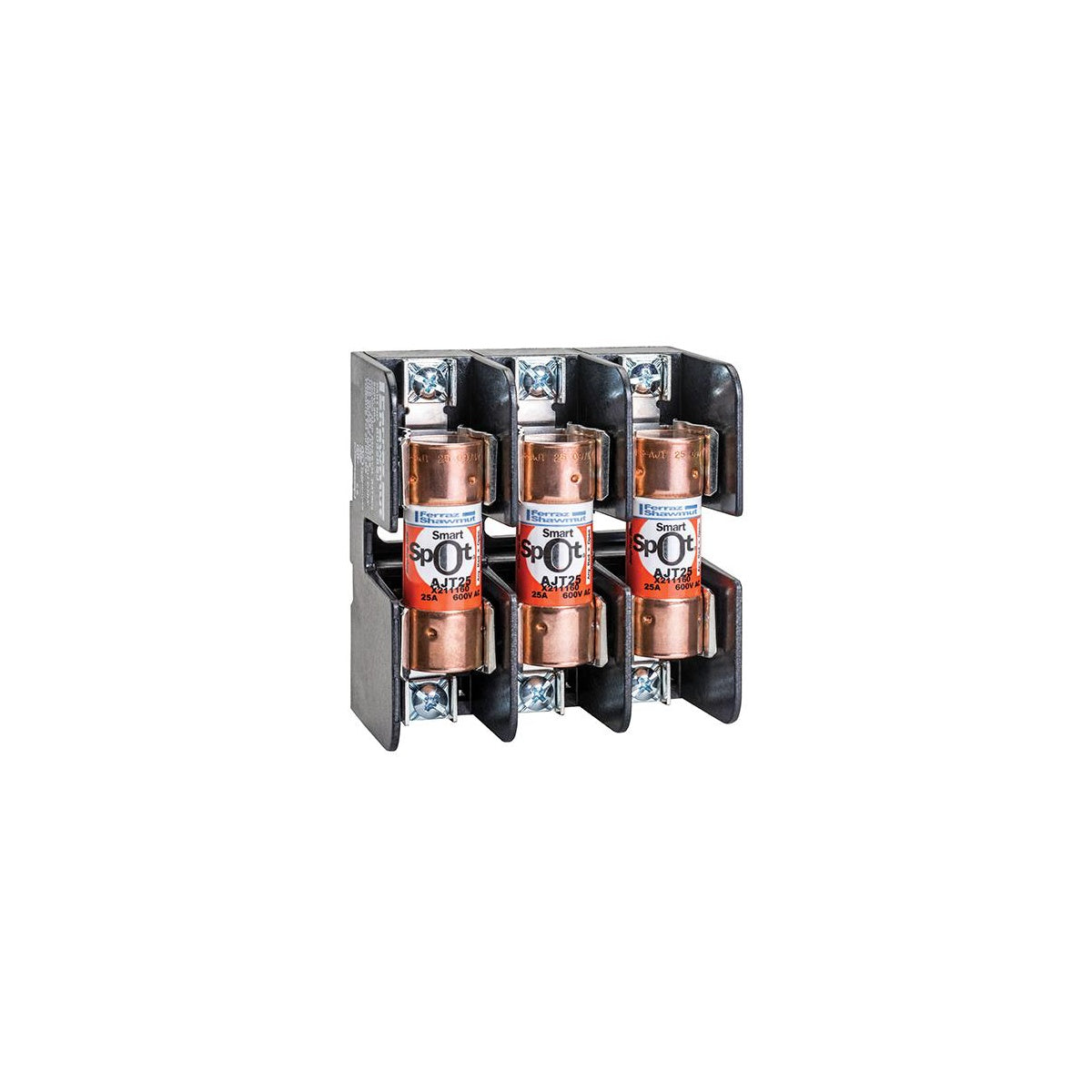

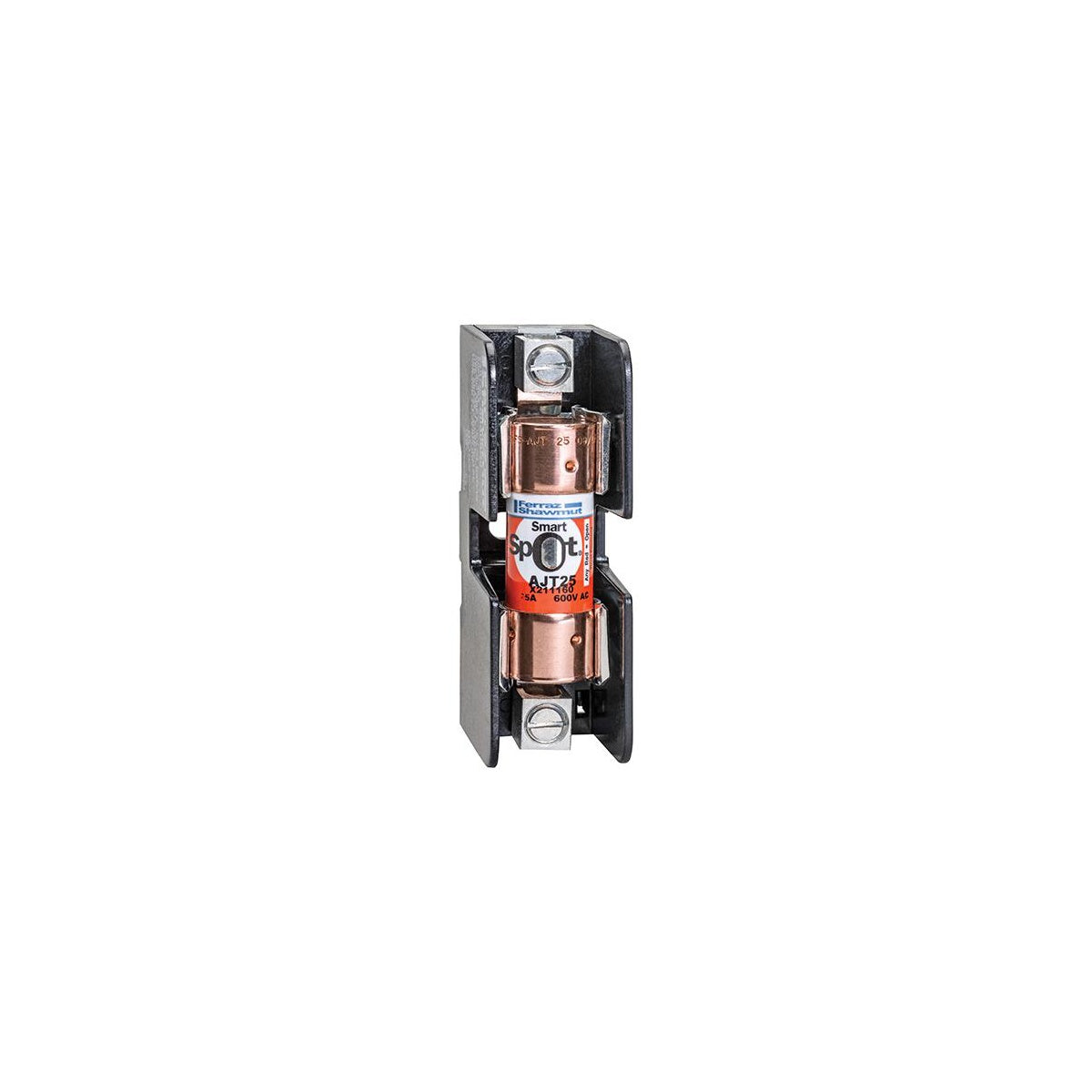

Fuse Amp-Trap 2000® 600V 10A Time-Delay Class J AJT Series Smart-Spot Fuse

The Fuse Amp-Trap 2000® AJT Series is designed for motor circuits, mains feeders, branch circuits, lighting, heating, general loads, transformers, control panels, circuit breaker back-up, bus duct, and load centers. This Class J time-delay fuse offers IEC Type 2 no damage protection with advanced material technology, suitable for electrical distributors and switchgear suppliers requiring compact, reliable overcurrent protection. Its time-delay characteristics handle motor and transformer inrush currents effectively while providing superior current-limiting performance in a space-saving design.

Specifications

• Amperage Rating: 10 A
• Voltage Rating: 600 V AC
• Fuse Class: Class J
• Interrupt Rating: 200 kA
• Frequency: 50 hertz
• Dimensions (L x W x H): 2.25 in x 0.81 in x 0.81 in
• Diameter: 0.81 inches
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0970 lb
• Manufacturer Part Number: AJT10
• Manufacturer: Mersen

Features

• Available with non-indicating or SmartSpot visual open fuse indicator
• IEC Type 2 no damage protection for main, feeder, and branch circuits
• Time-delay characteristics ideal for motor starting and transformer inrush currents
• Superior current-limiting ability reduces energy of arc flashes
• Compact size requires half the mounting space compared to 600V Class RK fuses
• Orange label for quick identification
• Durable fiber glass body ensures dimensional stability in industrial environments
• High-quality silica sand for rapid arc extinction
