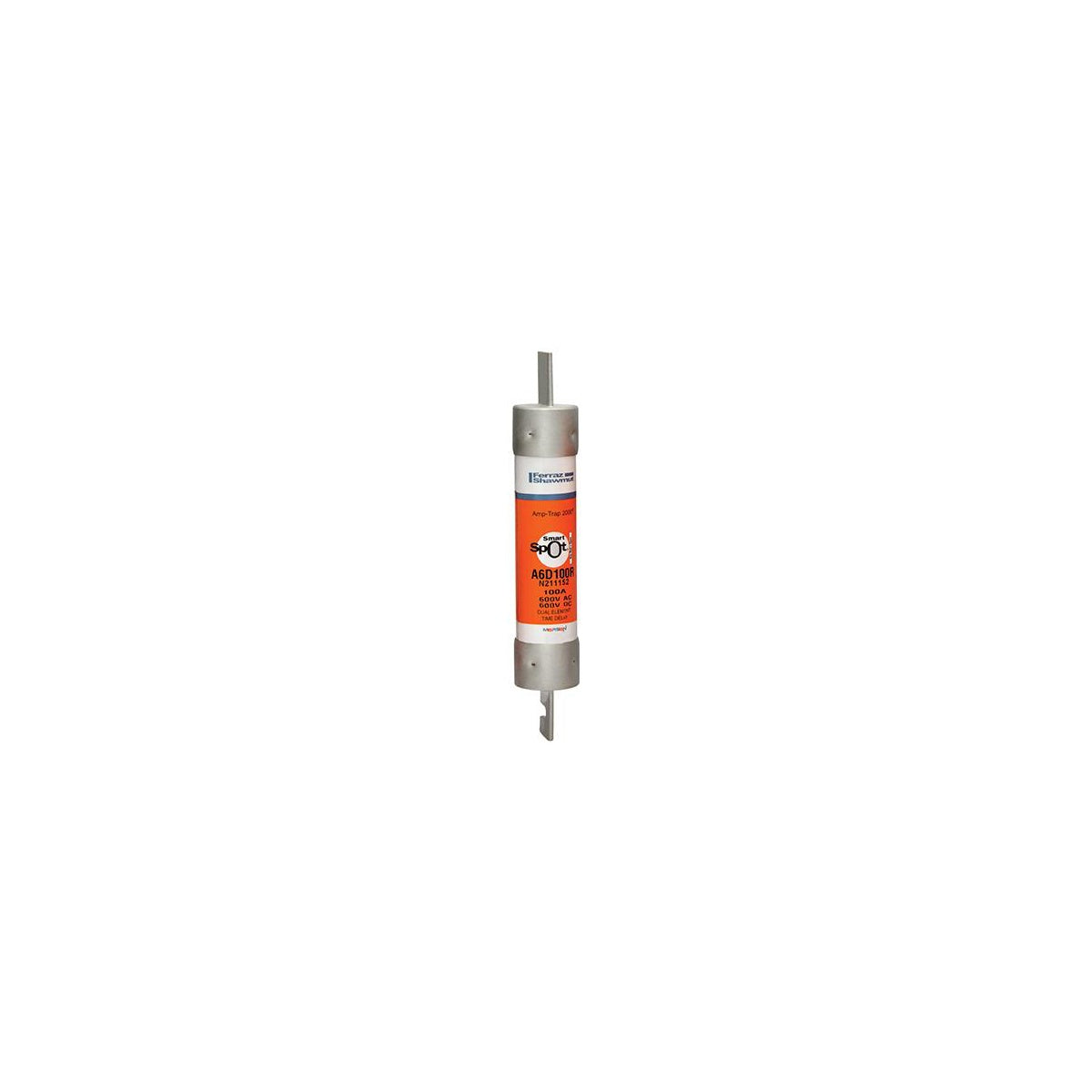

Fuse Amp-Trap 2000® 600V 100A Time-Delay Class RK1 A6D Series Smart-Spot

The Amp-Trap 2000® SmartSpot time-delay fuse A6D-R series provides IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. Designed for use in general-purpose circuits, these fuses ensure fast interruption under extreme fault conditions to protect motor starters, switches, and other circuit components, while allowing time-delay for motor inrush currents. Suitable for replacing older 600V Class H, K, or RK5 fuses, this fuse supports electrical distributors and switchgear suppliers in delivering reliable protection solutions.

Specifications

• Amperage Rating: 100 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Fuse Class: Class RK1
• Mounting Type: Clip
• Connection: Blade
• Dimensions (L x W x H): 7.88 in x 1.31 in x 1.31 in
• Diameter: 1.31 inches
• Product Weight: 0.6180 lbs
• Insulation Material: PolyTube
• Manufacturer Part Number: A6D100R

Features

• IEC Type 2 "no damage" time-delay protection
• Fast opening under extreme fault conditions for maximum short circuit protection
• Time-delay allows motor inrush currents without nuisance opening
• Compatible replacement for 600V Class H, K, or RK5 fuses
• SmartSpot indicator for easy fuse status identification
