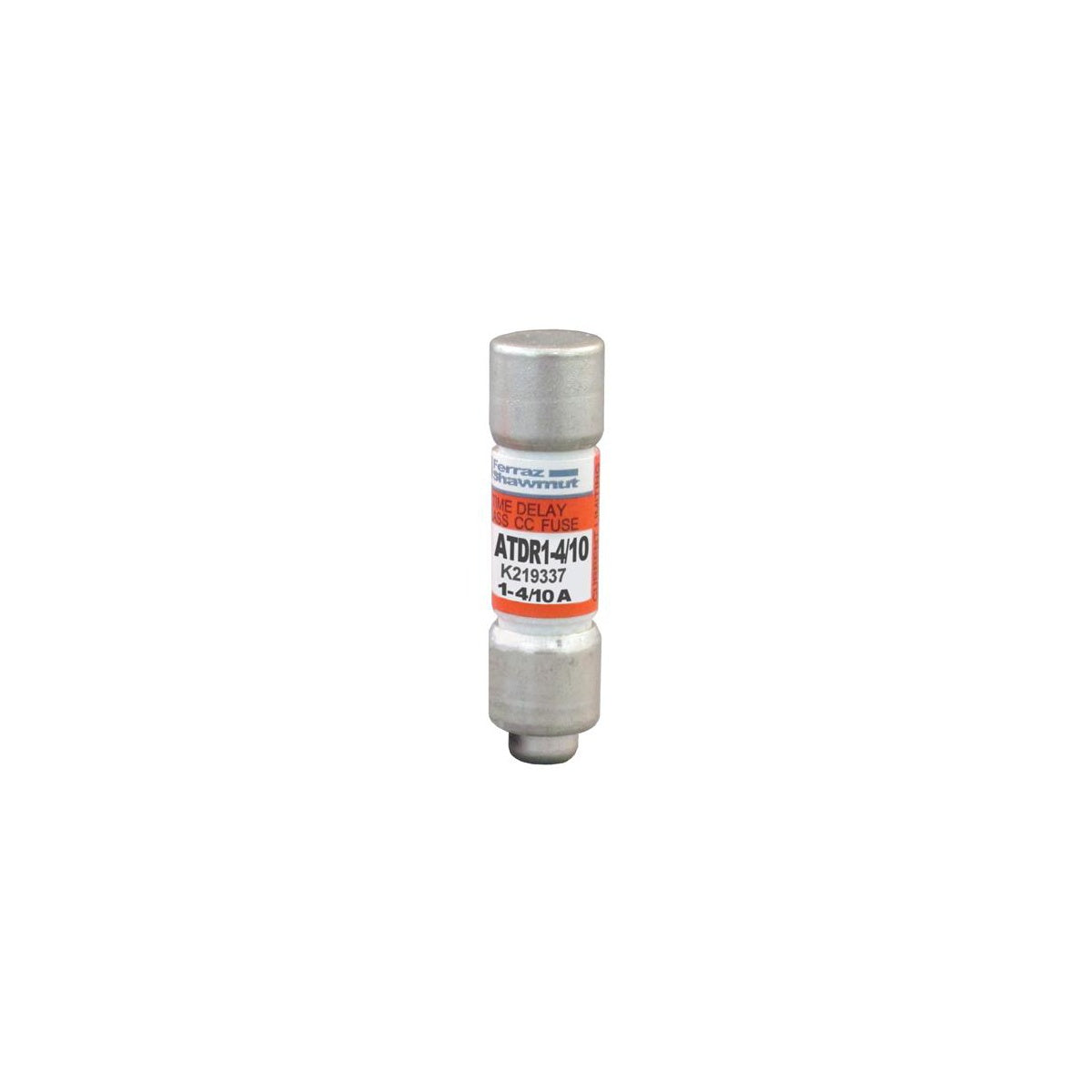

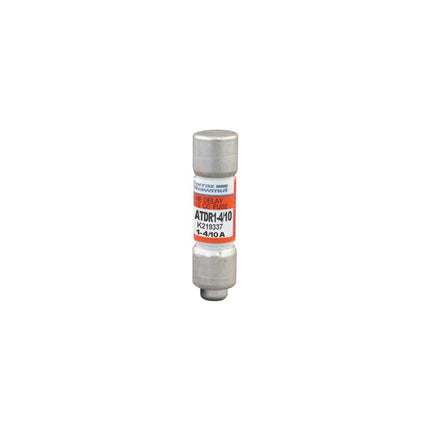

Fuse Amp-Trap 2000® 600V 1.4A Time-Delay Class CC ATDR Series - Small Motor Protection Fuse

The Fuse Amp-Trap 2000® ATDR Series is designed to provide IEC Type 2 "no damage" time-delay protection for small motors, contactors, lighting, heating, and general loads in branch circuit applications. Manufactured by Mersen, this Class CC fuse offers superior cycling ability and excellent current-limiting characteristics, making it a reliable choice for electrical distributors and switchgear suppliers focused on wire and cable and lighting solutions protection.

Specifications

• Amperage Rating: 1.4 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Fuse Class: Class CC
• Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
• Diameter: 0.41 inches
• Product Weight: 0.0170 lbs
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Manufacturer Part Number: ATDR1-4/10
• Manufacturer: Mersen

Features

• Time-delay design for motor starting currents without nuisance blowing
• High current-limiting capability reduces peak let-through current
• Excellent cycling endurance for frequent motor starts and stops
• Orange label for immediate visual identification and simplified replacement
• Durable fiberglass body ensures dimensional stability in industrial environments
• High-quality silica sand filler for rapid arc extinction and fault current limitation
• Anti-misapplication design with recommended fuse holders to prevent replacement errors
• UL Listed to Standard 248-4 and CSA Certified to C22.2 No 248-4
