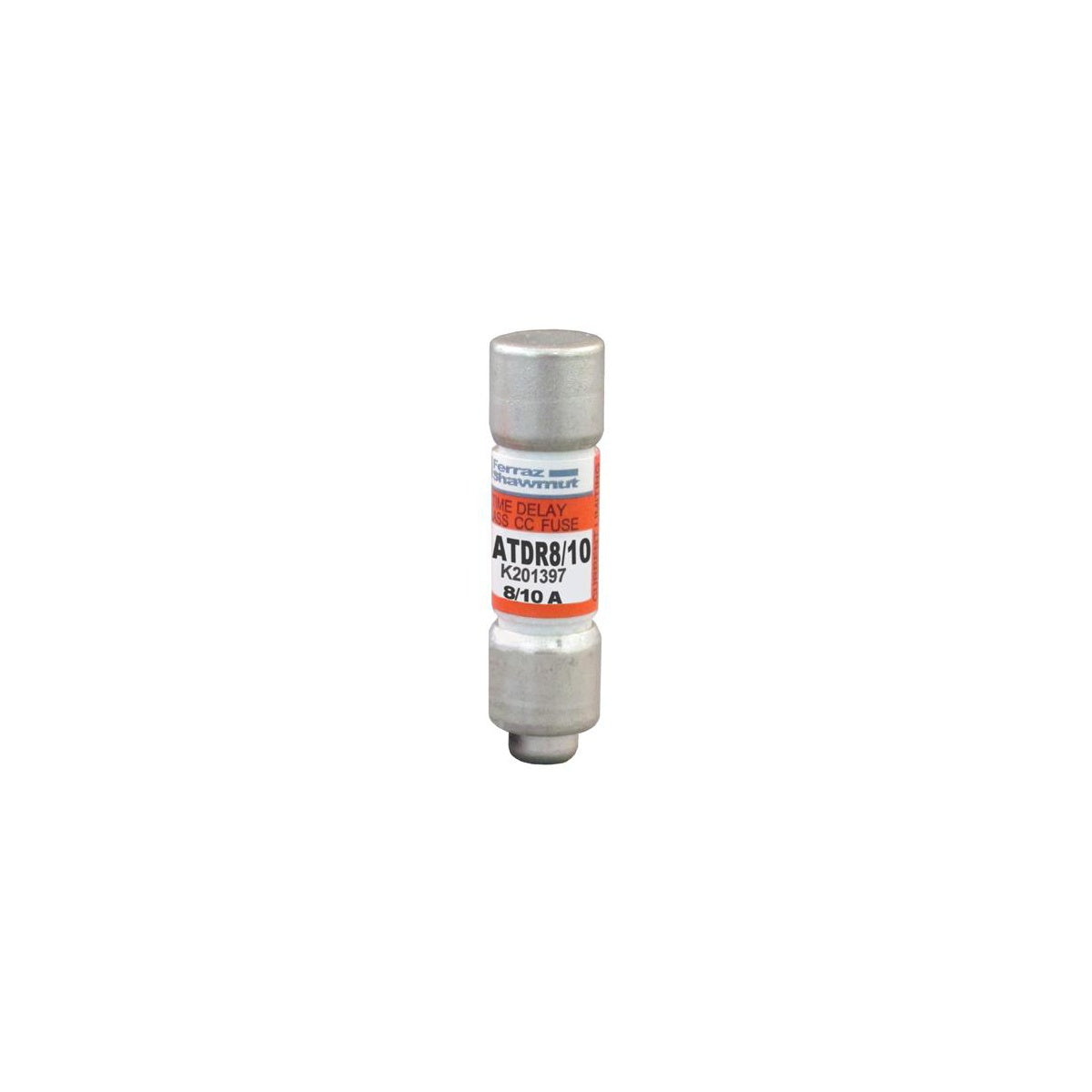

Fuse Amp-Trap 2000® 600V 0.8A Time-Delay Class CC ATDR Series

The Amp-Trap 2000® ATDR time-delay Class CC fuse is designed for reliable protection of small motors, contactors, lighting, heating, and general branch circuit loads. This fuse provides IEC Type 2 "no damage" protection, minimizing fault-related damage to sensitive branch circuit components. It is ideal for electrical distributors and switchgear suppliers requiring high-performance wire and cable protection with excellent cycling ability for small motor loads.

Specifications

• Amperage Rating: 0.8 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Fuse Class: Class CC
• Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
• Diameter: 0.41 inches
• Mounting Type: Clip
• Connection: Ferrule
• Product Weight: 0.0170 lbs
• Insulation Material: GMG
• Manufacturer Part #: ATDR8/10
• Manufacturer: Mersen

Features

• Time-delay design for motor starting currents without nuisance blowing
• Highly current-limiting for low peak let-through currents
• Enhanced cycling capability for frequent motor stops and starts
• Polarized design to prevent incorrect fuse replacement when used with recommended fuse holders
• Visible orange label for quick identification and simplified replacement
• Durable markings including manufacturing date and catalog number for traceability
• Fiberglass body ensures dimensional stability in harsh industrial environments
• High-quality silica sand filler for rapid arc quenching and fault current limitation
