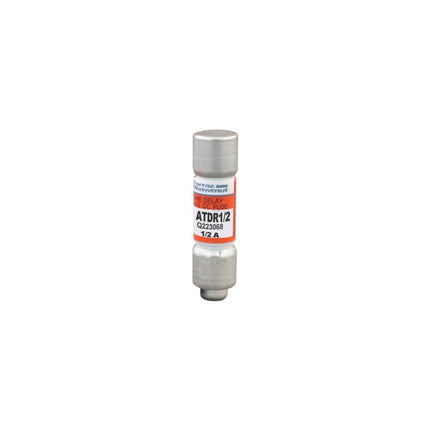

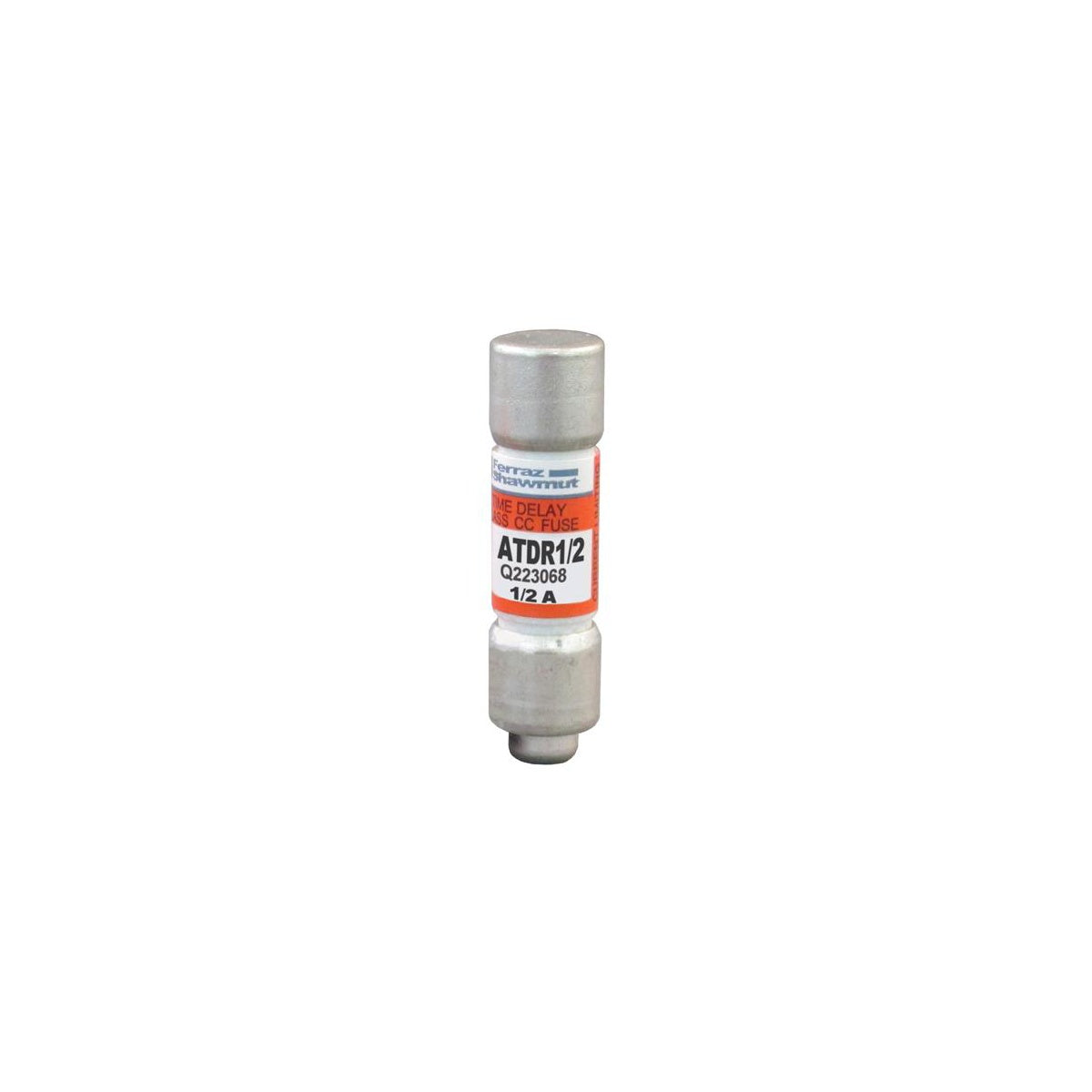

Fuse Amp-Trap 2000® 600V 0.5A Time-Delay Class CC ATDR Series

The Amp-Trap 2000® ATDR Class CC time-delay fuse is designed for protection of small motors, contactors, lighting, heating, and general branch circuit loads. It provides IEC Type 2 "no damage" protection, minimizing fault-related damage to sensitive branch circuit components and small motors. This fuse is suitable for electrical distributors and switchgear suppliers seeking reliable, time-delay protection with excellent cycling ability for small motor loads.

Specifications

• Amperage Rating: 0.5 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Fuse Class: Class CC
• Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
• Diameter: 0.41 inches
• Product Weight: 0.0170 lbs
• Connection: Ferrule
• Mounting Type: Clip
• Insulation Material: GMG
• Manufacturer: Mersen
• Manufacturer Part #: ATDR1/2

Features

• Time-delay design for motor starting currents without nuisance blowing
• High current limiting capability for reduced peak let-through current
• Improved cycling endurance for frequent motor starts and stops
• Visible orange label for easy identification and replacement
• Durable fiber glass body ensuring dimensional stability in industrial environments
• High-quality silica sand filler for fast arc extinction and fault current limitation
• Anti-misapplication design with recommended fuse holders
• UL and CSA listed to applicable standards (UL 248-4, CSA C22.2 No 248-4)
