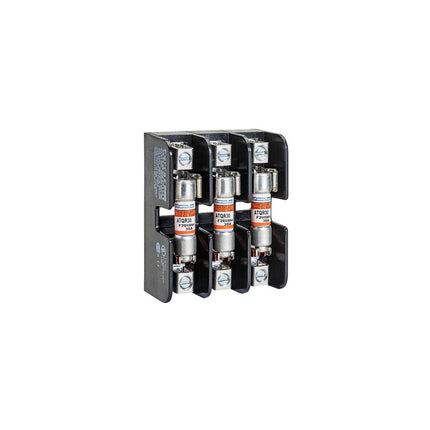

Fuse Amp-Trap 2000® 600V 0.1A Time-Delay Class CC ATQR Series
SKU: #195894
Part: #ATQR1/10
UPC: 782001904661
Fuse Amp-Trap 2000® 600V 0.1A Time-Delay Class CC ATQR Series
SKU: #195894
Part: #ATQR1/10
UPC: 782001904661
Description
Fuse Amp-Trap 2000® 600V 0.1A Time-Delay Class CC ATQR Series
The Mersen Fuse Amp-Trap 2000® ATQR Series is a Class CC time-delay fuse designed for superior protection of branch circuits in electrical distribution systems. It is specifically engineered to handle the high inrush currents typical of control transformers, solenoids, and inductive loads, making it suitable for lighting, heating, and general-purpose electrical applications. This fuse is an essential component for electrical distributors and switchgear suppliers seeking reliable wire and cable protection solutions.
Specifications
- Amperage Rating: 0.1 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Fuse Class: Class CC
- Dimensions: Length 1.5 in, Width 0.41 in, Height 0.41 in, Diameter 0.41 in
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer Part Number: ATQR1/10
Features
- Time-delay characteristic to accommodate control transformer inrush currents without nuisance fuse opening
- Highly current-limiting design reduces peak let-thru current for enhanced circuit protection
- Rejection-style design prevents replacement errors when used with recommended fuse blocks
- High visibility orange label for instant brand recognition and simplified replacement
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial environments
- High-grade silica filler ensures fast arc quenching and effective current limitation
- UL listed to standard 248-4 and CSA certified to C22.2 No. 248.4 for safety compliance
