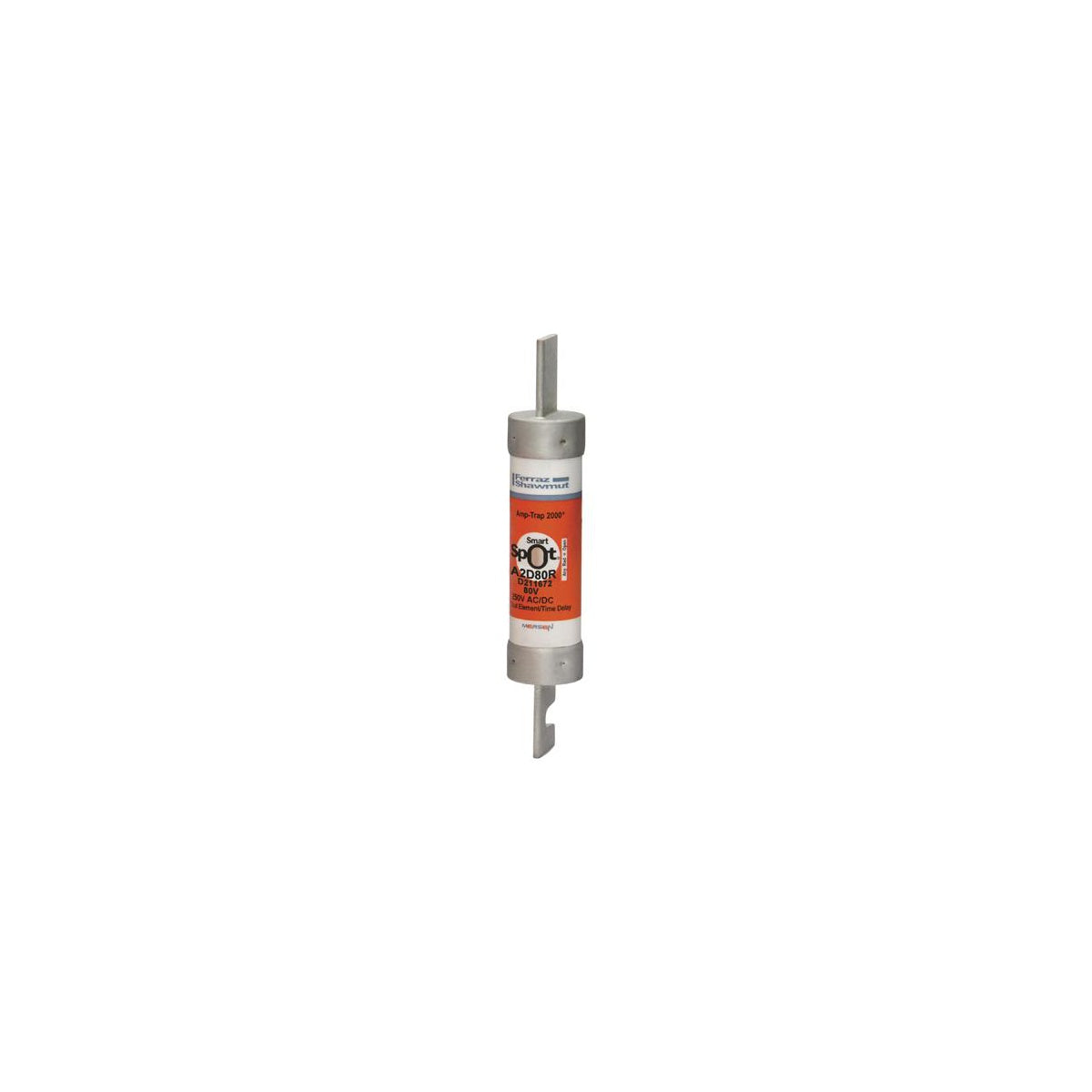

Fuse Amp-Trap 2000® 250V 80A Time-Delay Class RK1 A2D Series Smart-Spot

The Amp-Trap 2000 SmartSpot A2D-R fuse is designed for reliable protection of motors, safety switches, transformers, branch circuit protection, disconnects, and control panels in general-purpose electrical circuits. This time-delay fuse provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving both motor and non-motor loads. It offers fast interruption under extreme fault conditions to protect motor starters, switches, and other circuit components, while accommodating motor inrush currents. Suitable for use by electrical distributors and switchgear suppliers, this fuse can replace older 250V Class H, K, or RK5 fuses in existing installations.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A2D80R
• Fuse Class: Class RK1
• Amperage Rating: 80 A
• Interrupt Rating: 200 kA
• Voltage Rating: 250 V
• Dimensions (L x W x H): 5.88 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Weight: 0.2950 lbs
• Connection Type: Blade
• Mounting Type: Clip
• Insulation Material: PolyTube

Features

• Time-delay design accommodates motor inrush currents
• IEC Type 2 "no damage" protection to minimize equipment damage
• Fast response under extreme fault conditions for maximum short circuit protection
• SmartSpot indicator for easy fuse status identification
• Compatible replacement for older Class H, K, or RK5 fuses
