Description

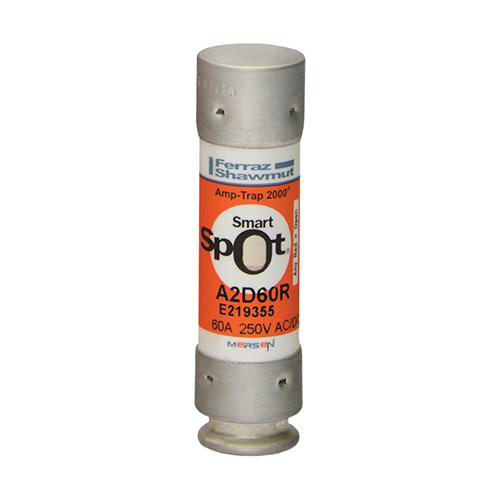

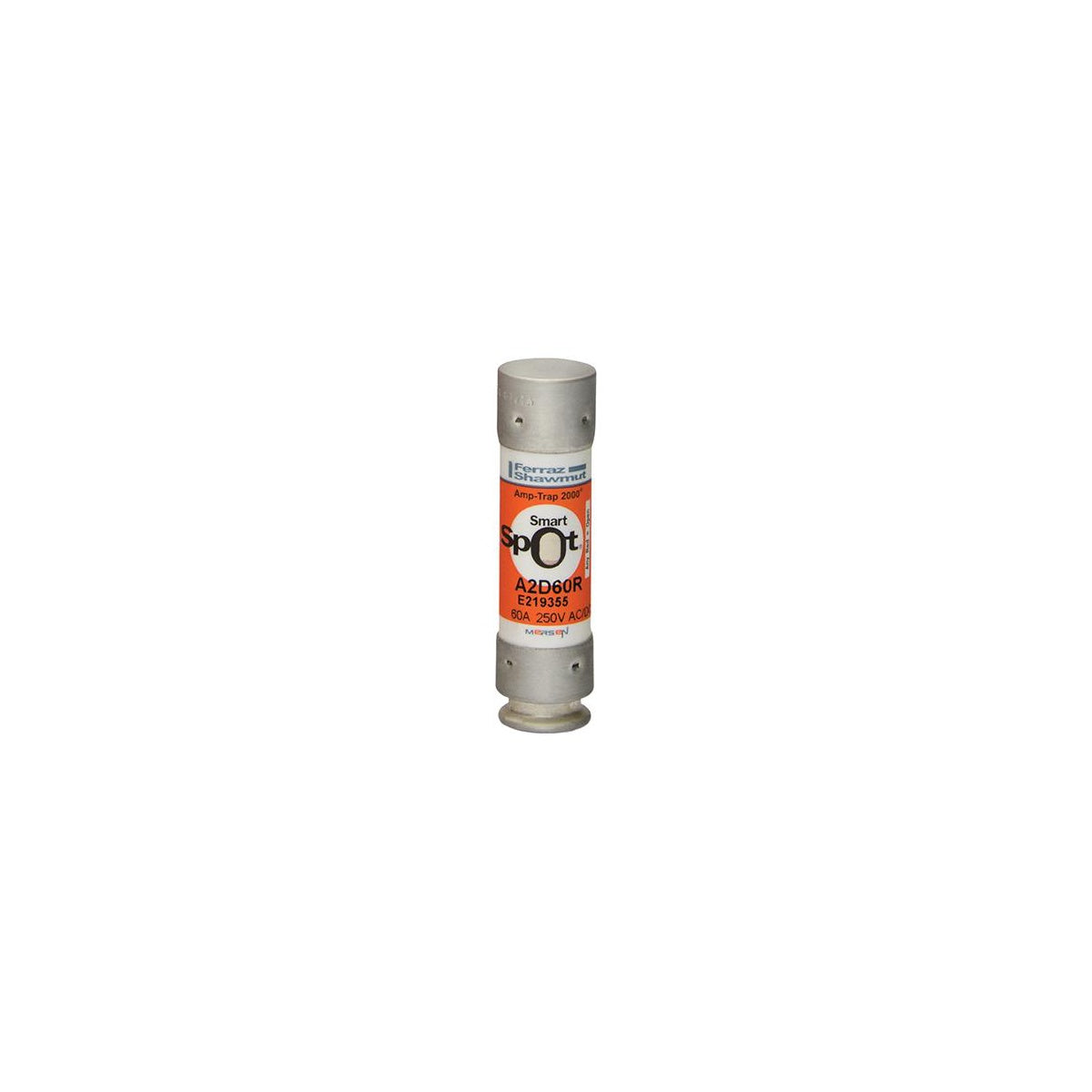

Fuse Amp-Trap 2000® 250V 60A Time-Delay Class RK1 A2D Series Smart-Spot
The Fuse Amp-Trap 2000® A2D Series Smart-Spot is a time-delay Class RK1 fuse designed for protection of motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. It provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving motor and non-motor loads. This fuse offers fast interruption under extreme fault conditions to protect motor starters, switches, and other circuit components, while allowing time-delay for motor inrush currents. Suitable for electrical distributors and lighting solutions requiring reliable wire and cable protection.
Specifications
- Amperage Rating: 60 A
- Voltage Rating: 250 V
- Interrupt Rating: 200 kA
- Fuse Class: Class RK1
- Dimensions (L x W x H): 3 in x 0.81 in x 0.81 in
- Diameter: 0.81 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Product Weight: 0.1190 lbs
- Manufacturer Part #: A2D60R
- Manufacturer: Mersen
Features
- Smart-Spot visual fuse operation indicator
- Time-delay characteristic for motor starting and transformer inrush currents without nuisance blowing
- Provides IEC Type 2 "no damage" protection for motor and non-motor loads
- High interrupting rating of 200 kA for maximum short circuit protection
- Replacement for older 250V Class H, K, or RK5 fuses to reduce inventory
- Orange label for quick identification
- Body constructed with fiber glass for dimensional stability in industrial environments
- Clip mounting for easy installation
- Rejection system to prevent incorrect fuse replacement when used with recommended fuse holders
