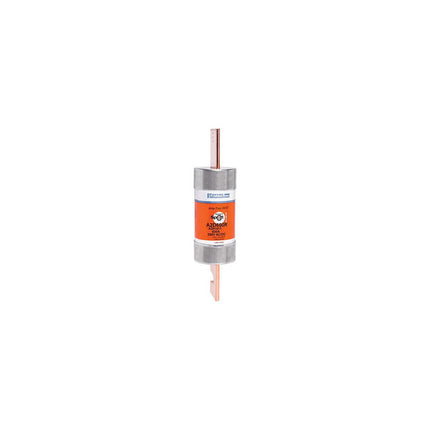

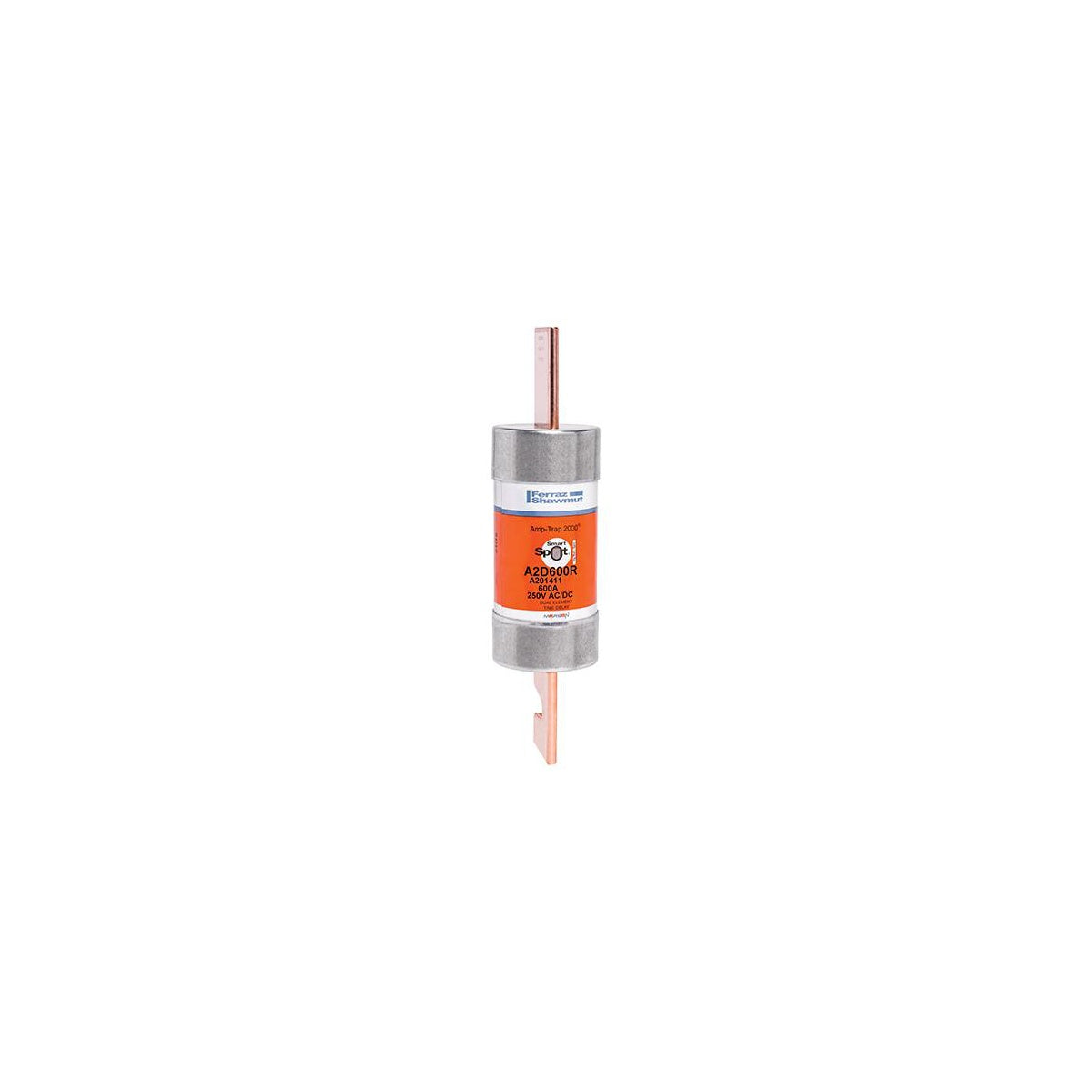

Fuse Amp-Trap 2000® 250V 600A Time-Delay Class RK1 A2D Series Smart-Spot

The Fuse Amp-Trap 2000® A2D Series Smart-Spot provides IEC Type 2 "no damage" time-delay protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. Designed for both motor and general-purpose circuits, these fuses offer reliable short circuit protection while allowing for motor inrush currents. Suitable for use by electrical distributors and switchgear suppliers, this fuse supports the replacement of older 250V Class H, K, or RK5 fuses with enhanced safety and performance.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A2D600R
• Fuse Class: Class RK1
• Amperage Rating: 600 A
• Interrupt Rating: 200 kA
• Voltage Rating: 250 V AC/DC
• Dimensions (L x W x H): 10.38 in x 3.12 in x 3.12 in
• Diameter: 3.12 inches
• Mounting Type: Clip
• Connection: Blade
• Insulation Material: PolyTube
• Product Weight: 2.9330 lbs
• Application: Motors, Safety switches, Transformers, Branch circuit protection, Disconnects, Control panels, All general-purpose circuits

Features

• SmartSpot visual fuse operation indicator for easy status identification
• Time-delay characteristic suitable for motor starting and transformer inrush currents
• Provides IEC Type 2 "no damage" protection to mains, feeders, and branch circuits
• High interrupting capacity to prevent damage to motor starters, switches, and circuit components
• Compatible replacement for older 250V Class H, K, or RK5 fuses
• PolyTube insulation ensures durability and stability in industrial environments
• Clip mounting for secure and convenient installation
