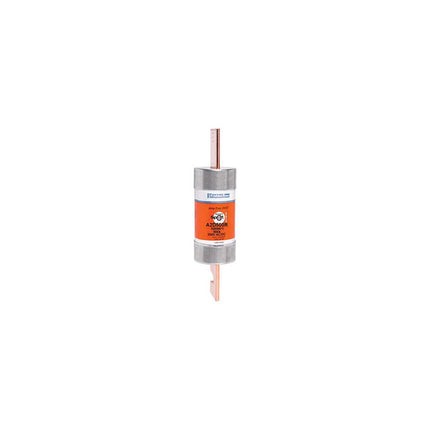

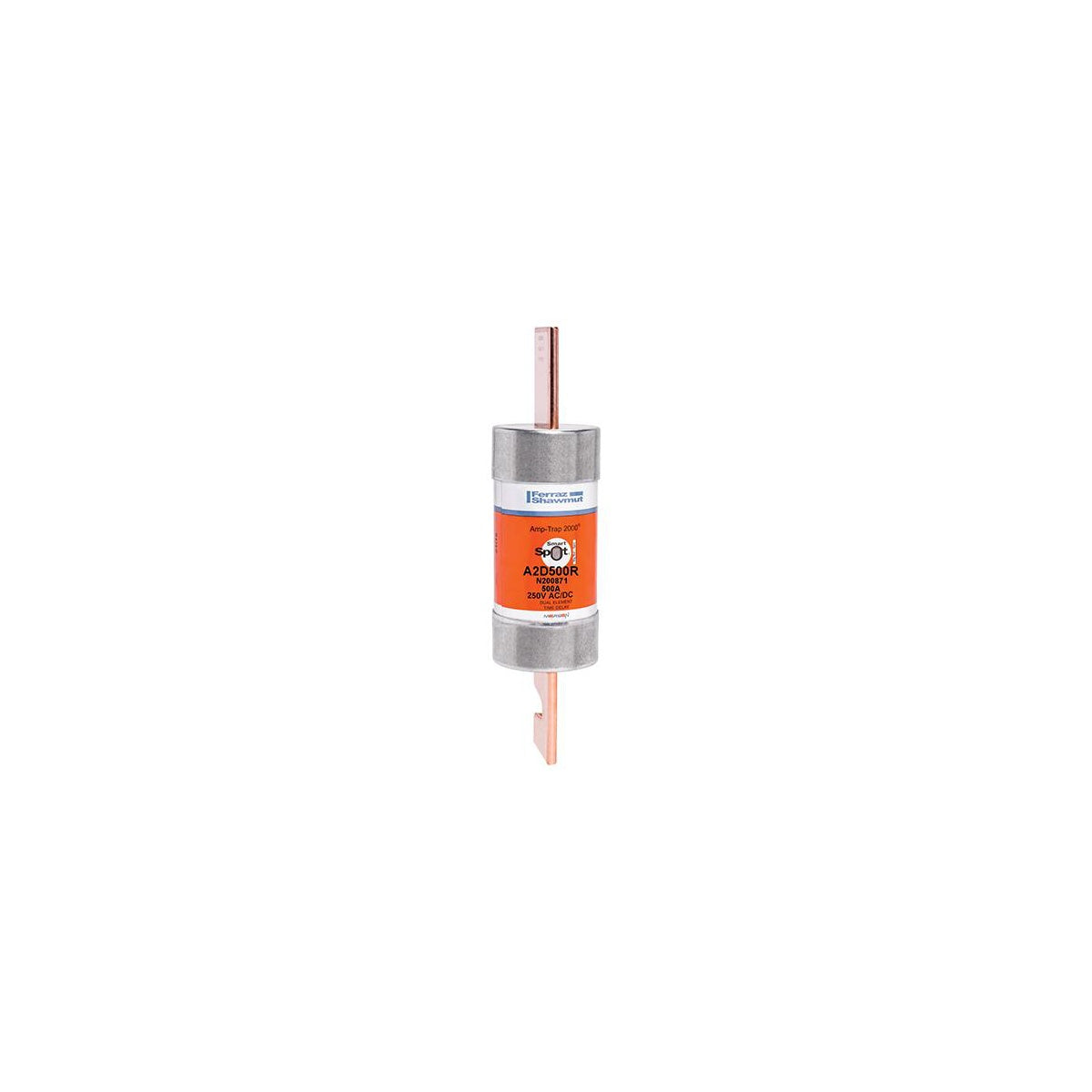

Fuse Amp-Trap 2000® 250V 500A Time-Delay Class RK1 A2D Series Smart-Spot
SKU: #194282
Part: #A2D500R
UPC: 782001991197
Fuse Amp-Trap 2000® 250V 500A Time-Delay Class RK1 A2D Series Smart-Spot
SKU: #194282
Part: #A2D500R
UPC: 782001991197
Description
Fuse Amp-Trap 2000® 250V 500A Time-Delay Class RK1 A2D Series Smart-Spot
The Fuse Amp-Trap 2000® A2D Series Smart-Spot is designed to provide IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. This time-delay fuse is suitable for both motor and non-motor loads, offering fast response under extreme fault conditions to protect motor starters, switches, and other circuit components while allowing motor in-rush currents. It is an ideal solution for electrical distributors and switchgear suppliers looking to upgrade or replace older 250V Class H, K, or RK5 fuses in general-purpose circuits.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A2D500R
- Fuse Class: Class RK1
- Amperage Rating: 500 A
- Interrupt Rating: 200 kA
- Voltage Rating: 250 V AC/DC
- Dimensions (L x W x H): 10.38 in x 3.12 in x 3.12 in
- Diameter: 3.12 inches
- Weight: 2.9330 lbs
- Connection Type: Blade
- Mounting Type: Clip
- Insulation Material: PolyTube
- UPC: 782001991197
Features
- Smart-Spot visual fuse operation indicator for quick status identification
- Time-delay characteristic suitable for motor starting and transformer inrush currents
- Provides IEC Type 2 "no damage" protection to mains, feeders, and branch circuits
- Fast acting under extreme fault conditions to prevent damage to circuit components
- Compatible replacement for older 250V Class H, K, and RK5 fuses
- PolyTube insulation ensures durability and dimensional stability in industrial environments
- Clip mounting with blade connection for secure and reliable installation
