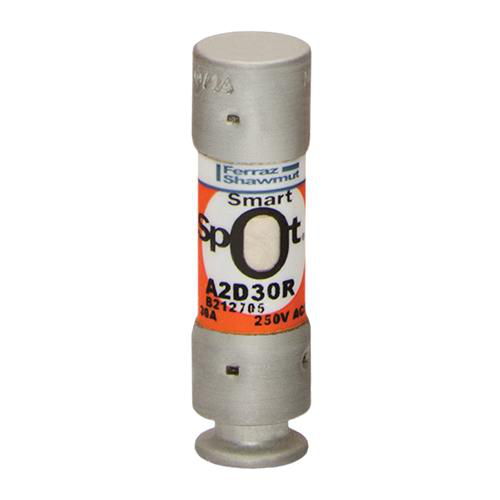

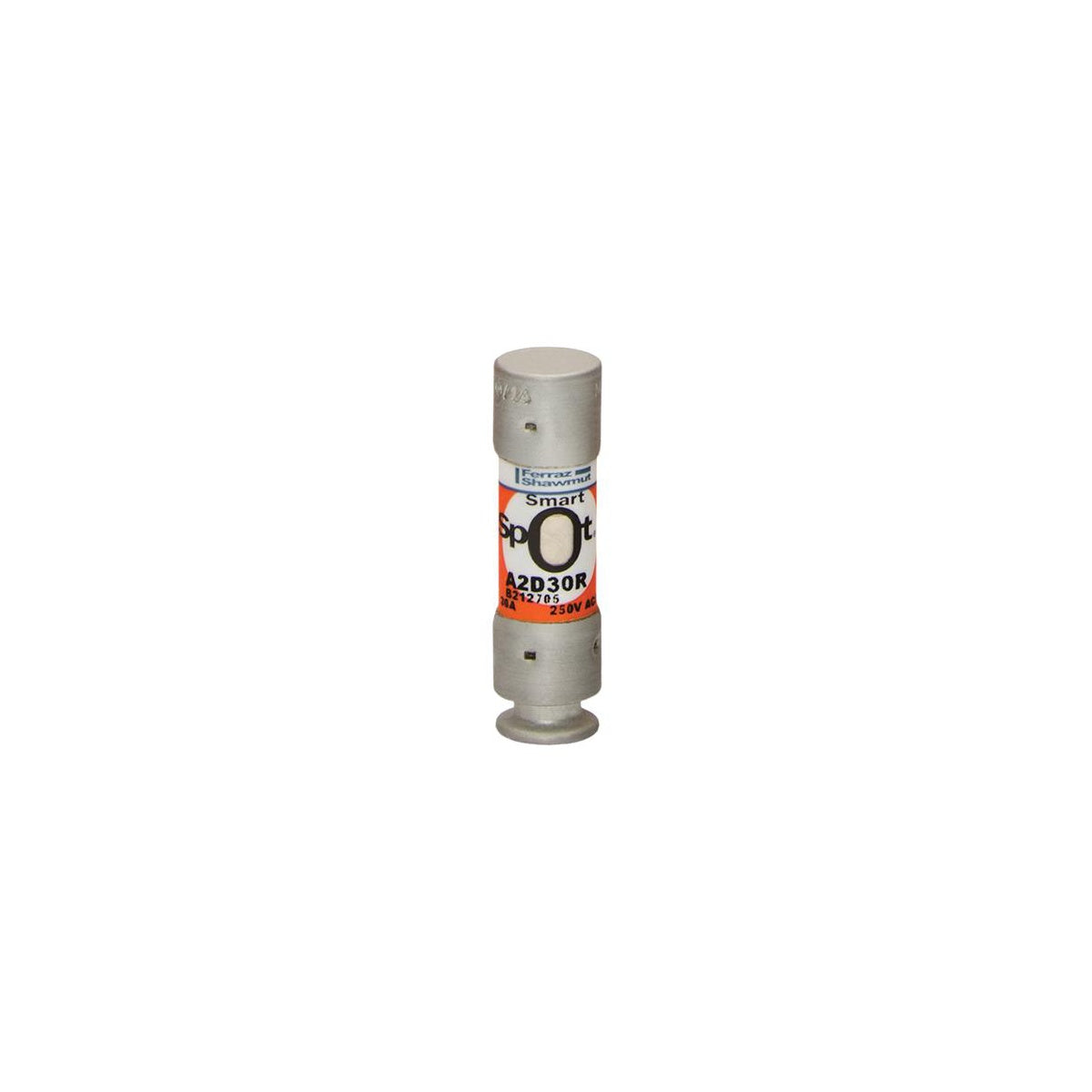

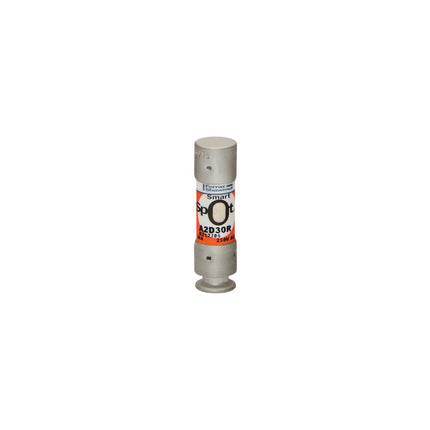

Fuse Amp-Trap 2000® 250V 30A Time-Delay Class RK1 A2D Series Smart-Spot
SKU: #194262
Part: #A2D30R
UPC: 782001990862
Fuse Amp-Trap 2000® 250V 30A Time-Delay Class RK1 A2D Series Smart-Spot
SKU: #194262
Part: #A2D30R
UPC: 782001990862
Description
Fuse Amp-Trap 2000® 250V 30A Time-Delay Class RK1 A2D Series Smart-Spot – Electrical Fuse
The Fuse Amp-Trap 2000® 250V 30A Time-Delay Class RK1 A2D Series Smart-Spot is designed to provide IEC Type 2 "no damage" protection for motors, safety switches, transformers, branch circuit protection, disconnects, and control panels. This fuse is suitable for general-purpose circuits and offers reliable short circuit protection, making it an essential component for electrical distributors and switchgear suppliers focusing on lighting solutions and wire and cable applications.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A2D30R
- Amperage Rating: 30 A
- Voltage Rating: 250 V AC
- Fuse Class: Class RK1
- Interrupt Rating: 200 kA
- Dimensions (L x W x H): 2 in x 0.56 in x 0.56 in
- Diameter: 0.56 inches
- Product Weight: 0.0370 lbs
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
Features
- SmartSpot visual fuse operation indicator for quick status identification
- Time-delay characteristics to accommodate motor starting and transformer inrush currents without nuisance blowing
- Provides fast opening under extreme fault conditions for maximum short circuit protection
- Compatible replacement for older 250V Class H, K, or RK5 fuses
- Orange label for easy identification
- Durable fiberglass body ensures dimensional stability in industrial environments
- UL and CSA listed for safety and compliance
