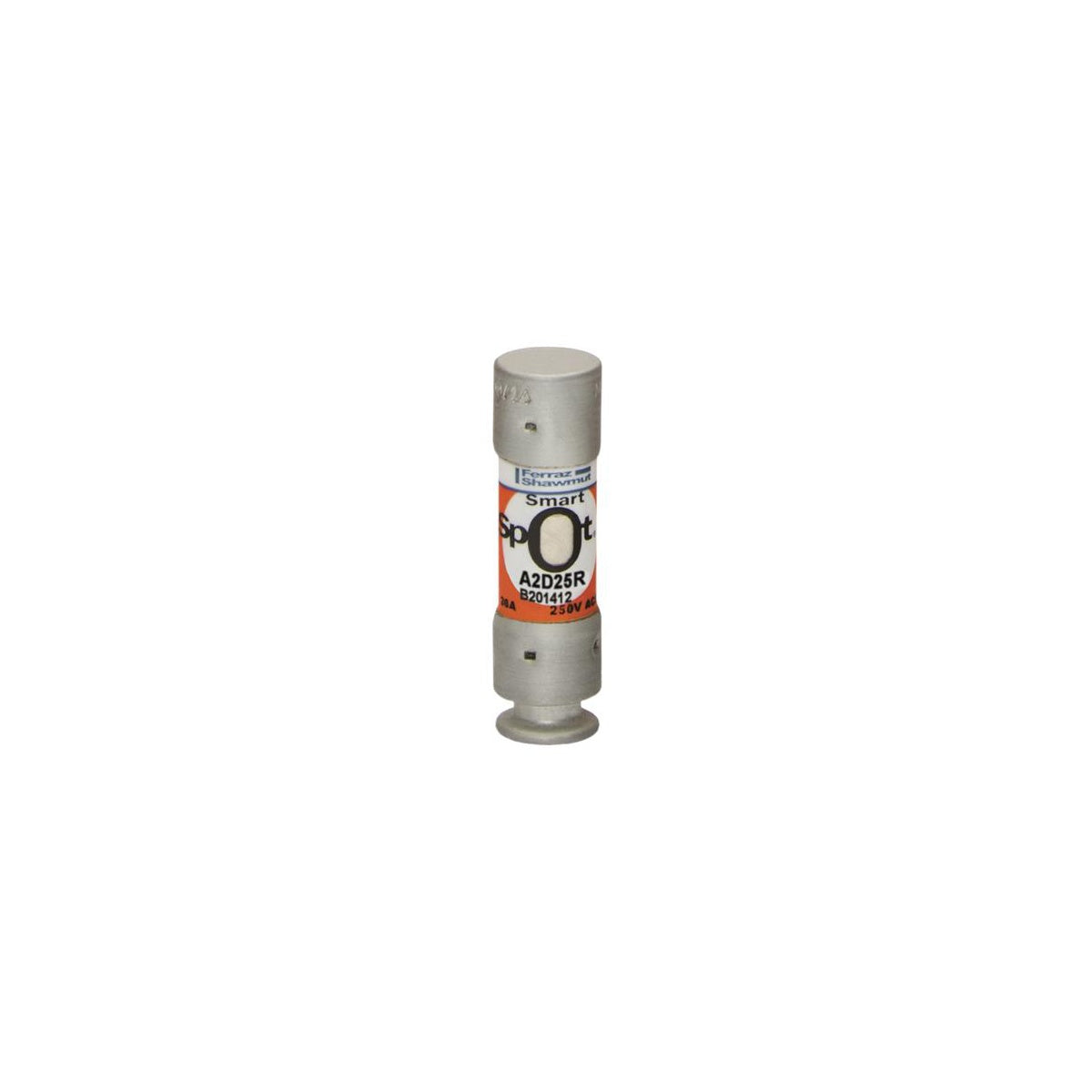

Fuse Amp-Trap 2000® 250V 25A Time-Delay Class RK1 A2D Series Smart-Spot

The Amp-Trap 2000 SmartSpot time-delay A2D-R fuse provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving motor and non-motor loads. Designed for use in motors, safety switches, transformers, branch circuit protection, disconnects, and control panels, this fuse offers fast interruption under extreme fault conditions to protect motor starters, switches, and other circuit components. It also provides the necessary time-delay to accommodate motor in-rush currents and can replace older 250V Class H, K, or RK5 fuses in the field. Suitable for electrical distributors and lighting solutions requiring reliable wire and cable protection or switchgear supplier applications.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A2D25R
• Fuse Class: Class RK1
• Amperage Rating: 25 A
• Interrupt Rating: 200 kA
• Voltage Rating: 250 V AC
• Dimensions (L x W x H): 2 in x 0.56 in x 0.56 in
• Diameter: 0.56 inches
• Product Weight: 0.0370 lbs
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: PolyTube
• Application: Motors, Safety switches, Transformers, Branch circuit protection, Disconnects, Control panels, All general-purpose circuits

Features

• IEC Type 2 "no damage" time-delay protection
• SmartSpot visual fuse-blown indicator for quick identification
• Fast interruption under extreme fault conditions for maximum short circuit protection
• Time-delay characteristics to accommodate motor starting and transformer in-rush currents without nuisance blowing
• Replacement for older 250V Class H, K, and RK5 fuses to reduce inventory
• High interrupting rating of 200 kA for enhanced safety
• PolyTube insulation provides dimensional stability in industrial environments
• Clip mounting for easy installation
• Orange label for rapid identification
